15.04.11 Automatic presser-foot lifter
Requirement
When solenoid 1 is activated, lever 3 for the roller-presser must drop automatically.
Move solenoid 1 ( screws 2 ) in accordance with the requirement.
Turn the machine on and check the requirement.
Turn the machine off.
Depending on the thickness of the material, the clearance between the roller-presser
and the feed wheel can be increased to a maximum of 11 mm by moving the sole-
noid 1 to the right.
1
2

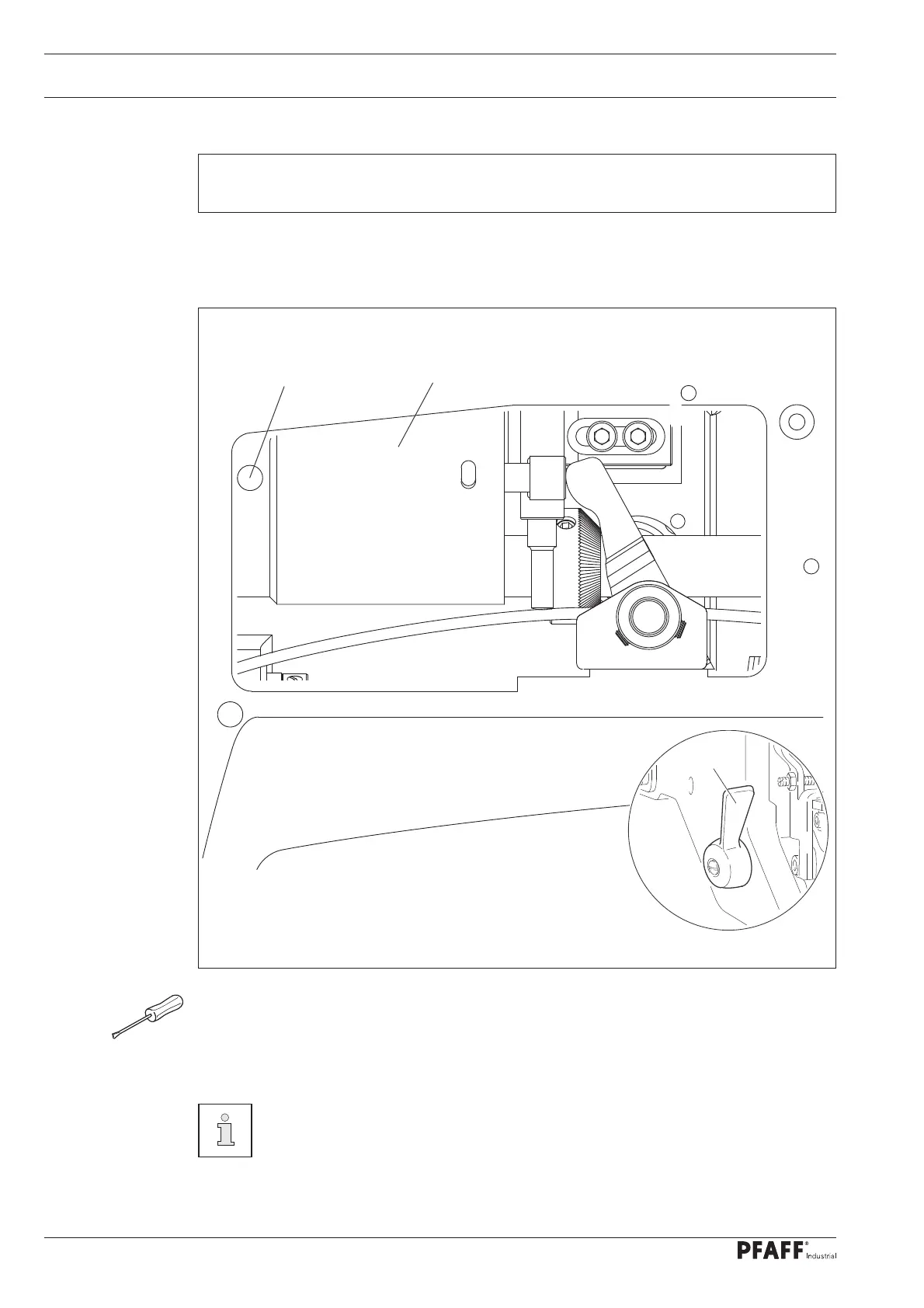

Fig. 15 - 11
63-020
3
75°
