Adjustment
20

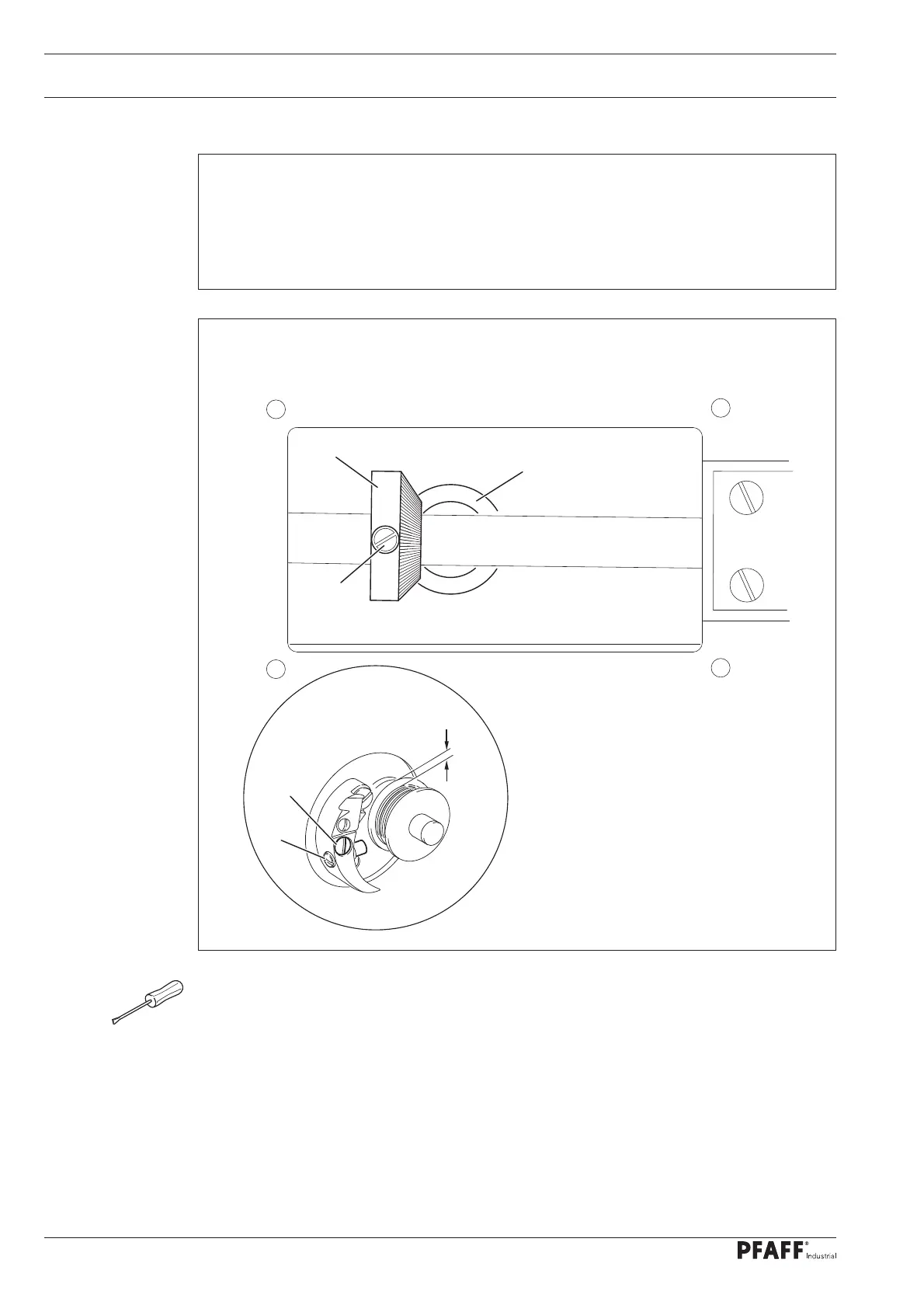

15.04.15 Bobbin winder
● Position drive wheel 1 (screws 2) according to requirement 1.
● Position bolt 3 (screw 4) according to requirement 2.
Requirements
1. When the bobbin winder is engaged, the winding spindle must be driven reliably. When the
bobbin winder is disengaged, the friction wheel 5 must not be moved by drive wheel 1.
2. The bobbin winder must switch itself off, when the fi lled thread is about 1 mm from-
the edge of the bobbin.
1
2
5
Fig. 15 - 15
3
4
