Adjustment
24
15.05 Adjusting the edge trimmer -725/04
15
.05.01 Position of the knife holder (on the PFAFF 1591)
Requirement
When the thread trimmer is engaged, the centre of the angular knife opening must bele-
vel with the top edge of the needle plate.
● Switch off the machine and engage the edge trimmer.
● Loosen screw 1.
● By turning sccentric 2, position the knife in the centre of its adjustment range.
● Adjust knife holder 3 according to the requirement and tighten screw 1.
● Position locking ring 4 on the knife holder 3.
Depending on the material thickness, changes in the basic setting of eccentric
2are possible.

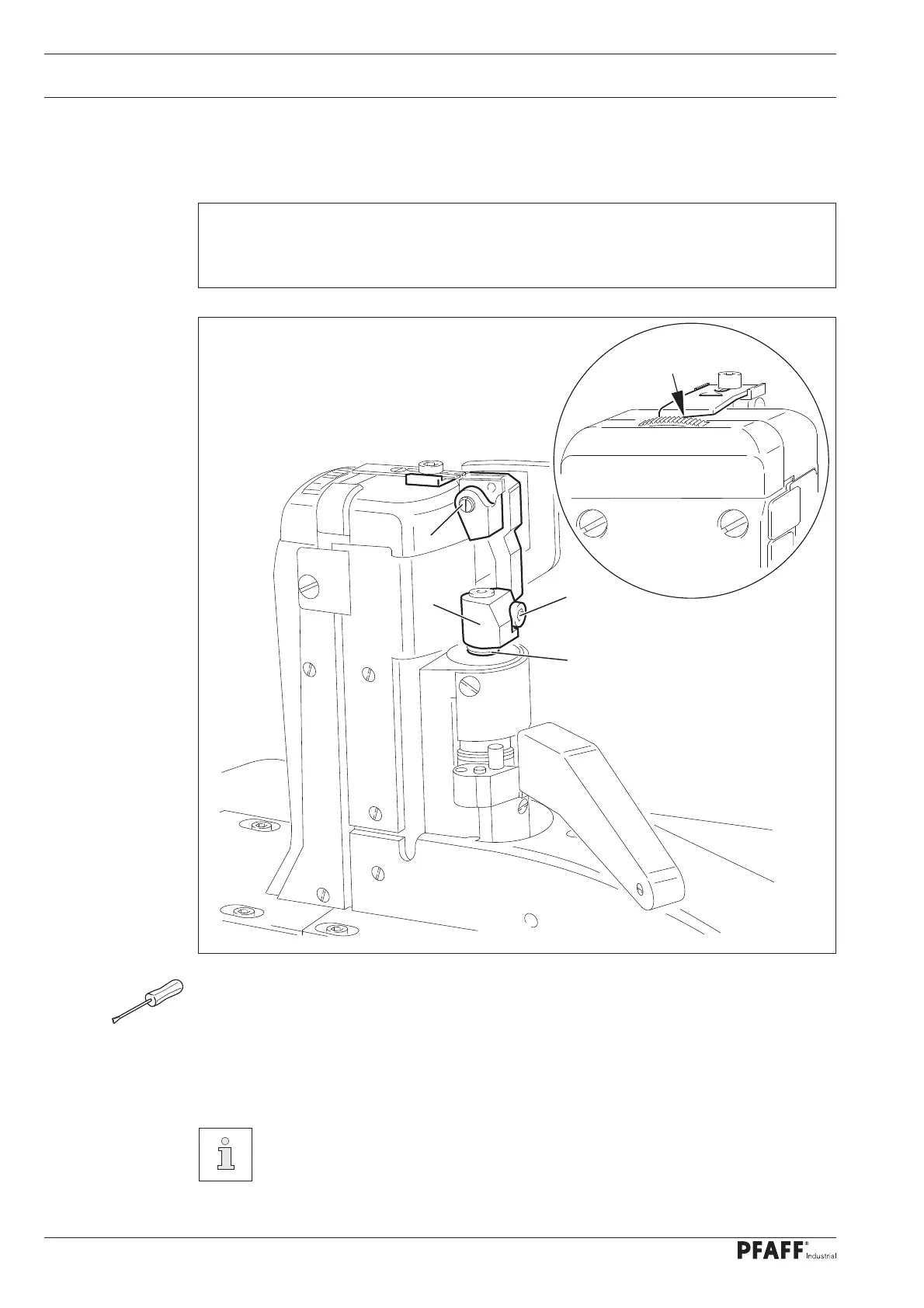

Fig. 15 - 19
1
2
3
4
