Pfaff 1591 Adjustment Manual

Adjustment
18
15.04.13 Tension release
Requirement
The two tension disks 8 should be at least 0.5 mm apart
1. when lever 1 is raised,
2. when the automatic presser foot lift is operated or
3. when solenoid 6 is pressed.
● Raise lever 1 and adjust screw 2 (nut 3) in accordance with requirement 1.
● Raise the roller presser with the automatic presser foot lift or with the knee lever andad-
just catch 4 (screw 5) in accordance with requirement 2.
● Press solenoid 6 as far as possible.
● Adjust solenoid 6 (screws 7) in accordance with requirement 3.
The point of time when the tensioned is released by solenoids 6 can be set with-
the service functions, see Chapter 15.07 Parameter settings.

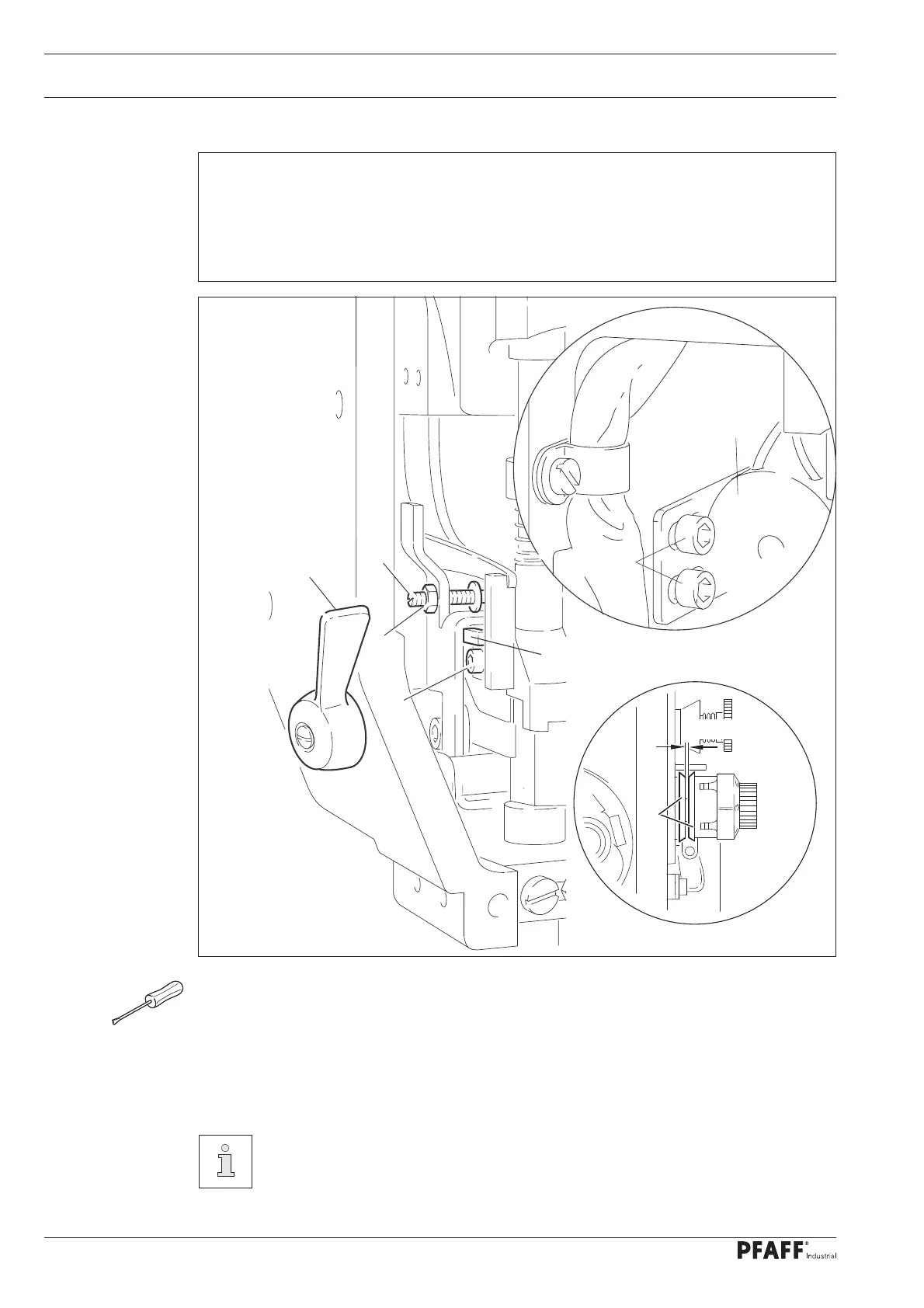

Fig. 15 - 13
0,5 mm
8
3
2
4
5
1
7
6
