Adjustment
9
15
.04.04

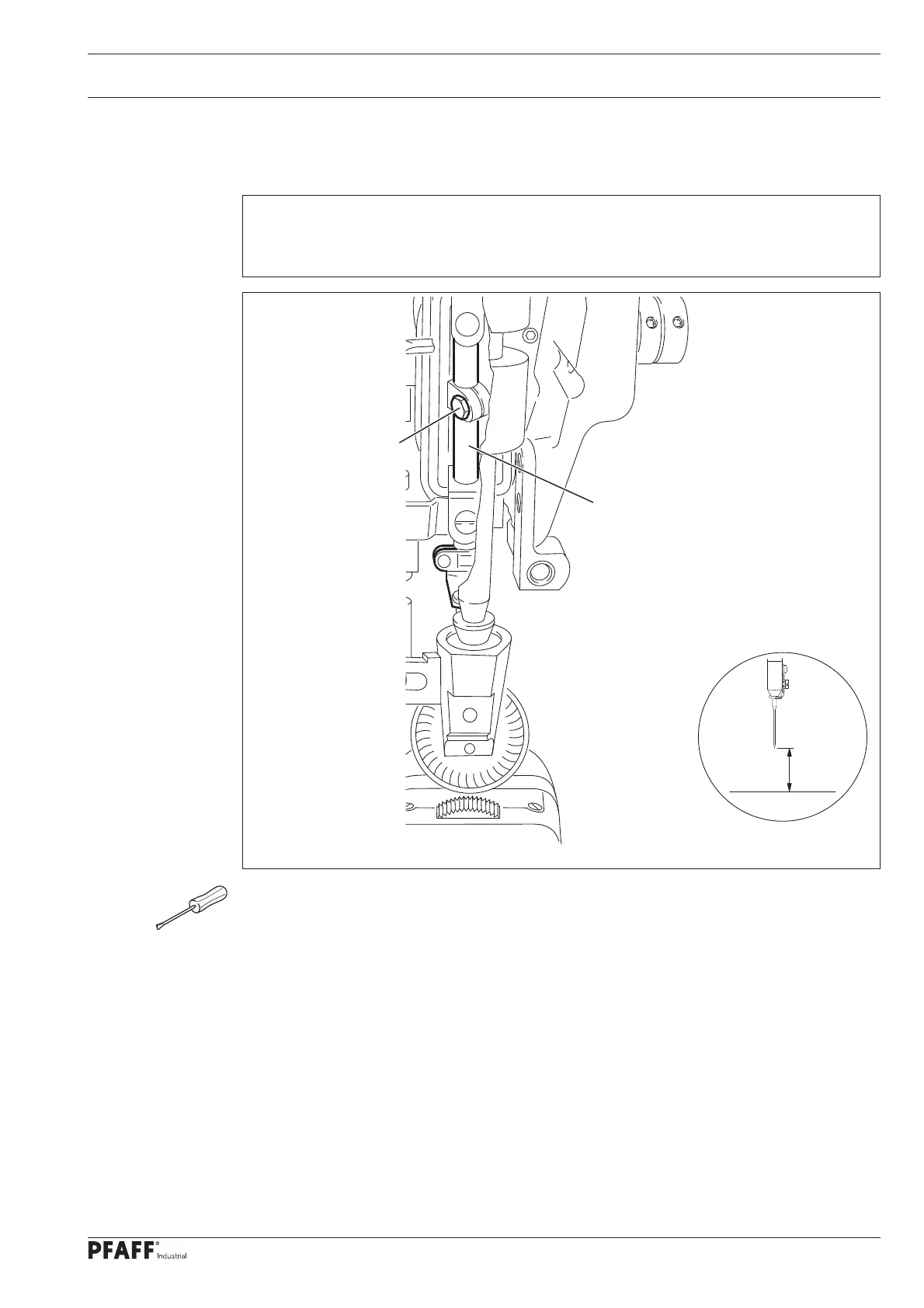

Preadjusting the needle height
Requirement
With the needle bar at
TDC there must be approx.
21 mm
between the point of the need-
le and the needle plate.
ā
Mov
e the needle bar
1
( screw
2
) in accordance with the
requirement
without t
urning it.
Fig. 15 - 04
21 mm
1
2
8
10
Table of Contents
Table of Contents
3
Adjustment
5
Tools, Gauges and Other Accessories
5
Abbreviations
5
Explanation of Symbols
5
Adjusting the Basic Machine
6
Needle Position in Sewing Direction (on the PFAFF 1591)
6
Needle Position in Sewing Direction (on the PFAFF 1593)
7
Limiting the Needle Bar Frame on the PFAFF 1591
8
Preadjusting the Needle Height
9
Needle Rise, Hook Clearance, Needle Height and Needle Guard (on the PFAFF 1591 and 1593)
10
Needle Position Crosswise to Sewing Direction (on the PFAFF 1591 and 1593)
11
Height and Stroke of the Bobbin Case Opener
12
Height of the Feed Wheel (on the PFAFF 1591 and 1593)
13
Clearance between Roller Presser and Feed Wheel
14
Roller-Presser
15
Automatic Presser-Foot Lifter
16
Knee Lever
17
Tension Release
18
Thread Check Spring (PFAFF 1511 and 1593)
19
Bobbin Winder
20
Roller-Presser Pressure
21
Lubrication
22
Re-Engage Safety Coupling
23
Adjusting the Edge Trimmer -725/04
24
Position of the Knife Holder (on the PFAFF 1591)
24
Knife Stroke (on the PFAFF 1591)
25
Cutting Stroke (on the PFAFF 1591)
26
Knife Position
27
Adjusting the Thread Trimmer -900/81
28
Resting Position of the Roller Lever / Radial Position of the Control Cam
28
Position of the Thread Catcher Holder
29
Distance between Thread Catcher and Needle Plate
30
Position of the Thread Catcher
31
Knife Position and Knife Pressure
32
Bobbin Thread Retaining Spring
33
Manual Cutting Test
34
Parameter Settings
35
Overview of Parameter Functions
35
Parameter Input Example
36
Parameter List for Control P320 and P321
37
Error Messages and Description
41
Warning Messages
41
Internet Update of the Machine Software
42
Update (with Null Modem Cable)
42
Update (with SD Card)
43
Circuit Diagrams
44
