15.04.10 Roller-presser
● Raise the roller-presser 1.
● Always observe requirement 1 when carrying out the following adjustments.
● Move the roller-presser 1 ( screw 2 ) in accordance with requirement 2.
● Rollfuß 1 auf das Schiebrad 5 aufsetzen lassen.
● Move the roller-presser bracket 3 ( screw 4 ) in accordance with requirement 3.
When sewing very tight curves the roller-presser 1 should be moved toward the-
operator slightly.
Requirement
When the roller-presser 1 is resting on the feed wheel 5 it must
1. be parallel to the feed wheel 5 when viewed in the direction of sewing,
2. be in the middle of the needle when viewed crosswise to the direction of sewing and
3. be as close as possible to the ( left ) needle when viewed in thedirection of sewing.
4
2
3
1
5

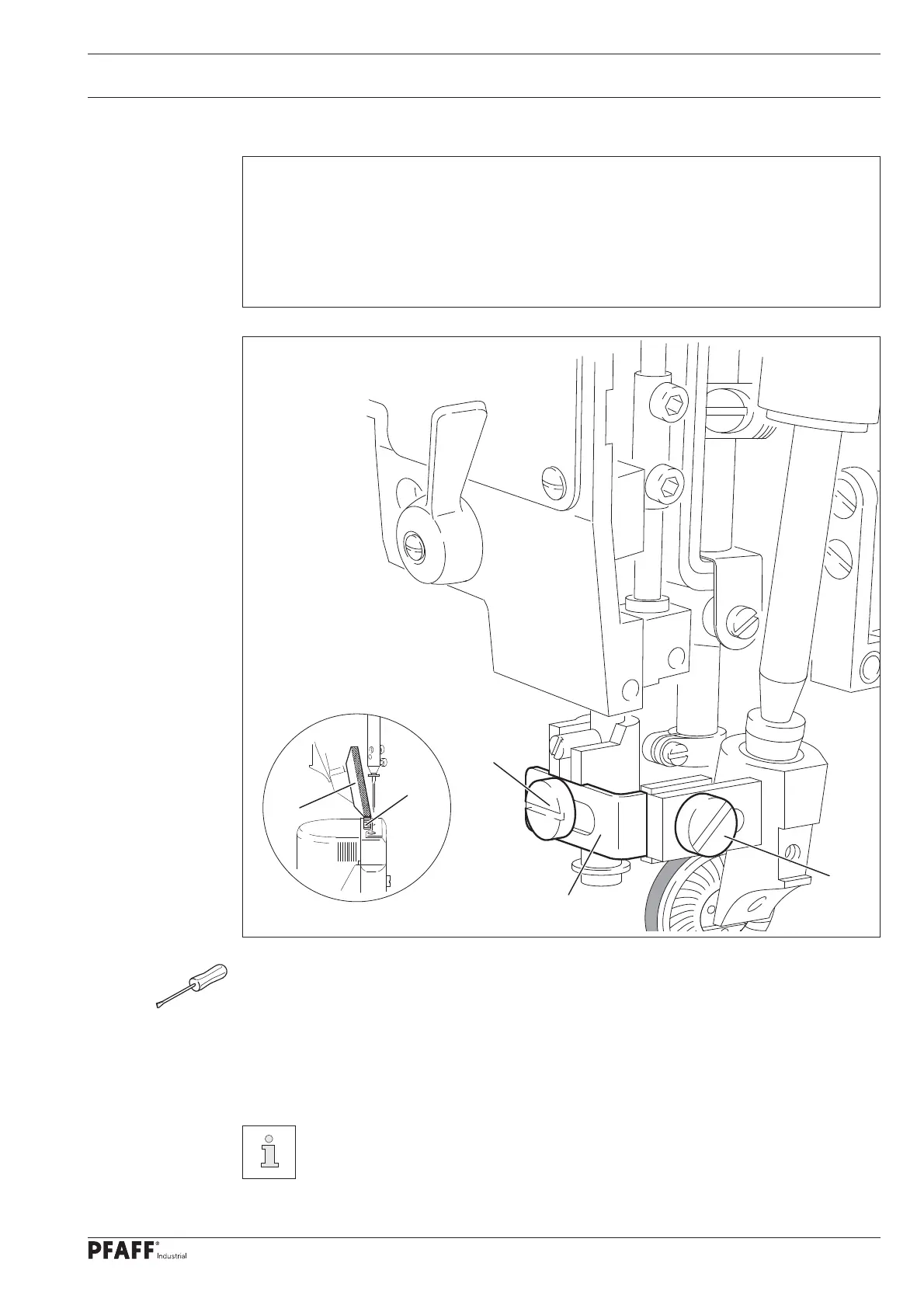

Fig. 15 - 10
