Pfaff 1591

Adjustment
25
15.05.02 Knife stroke (on the PFAFF 1591)
Requirement
The knife stroke can be adjusted over a range from 2.0 to 3.5 mm, allowing the bestpossible
adaption to all materials used.
● Adjust crank 1 (nut 2) in slotted lever 3 according to the requirement.

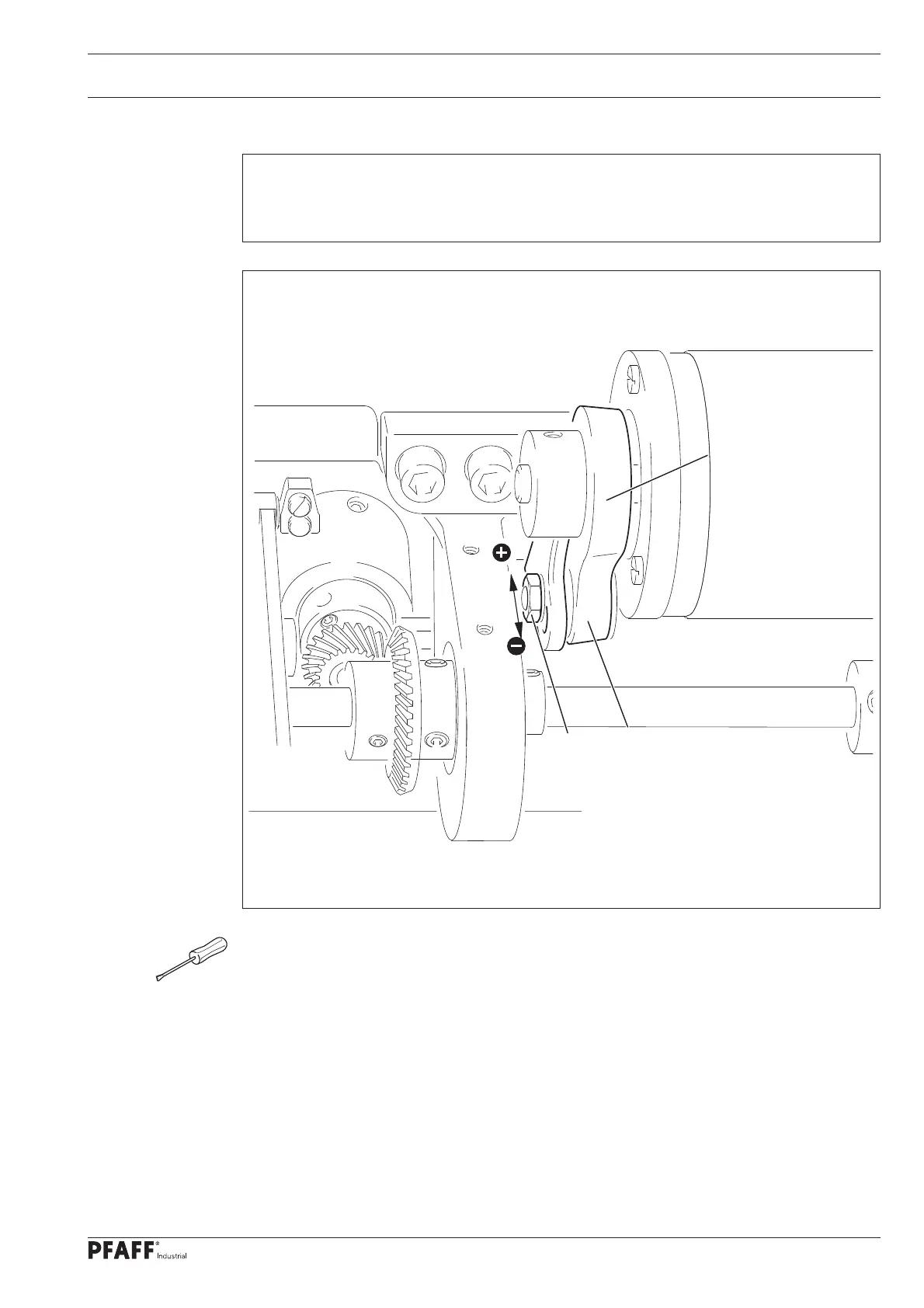

Fig. 15 - 20
1
2
3
