Pfaff 3704-2/03 - Table Top Assembly for the PFAFF 939 U

To Next Page

To Previous Page

8 - 5

Installation and commissioning

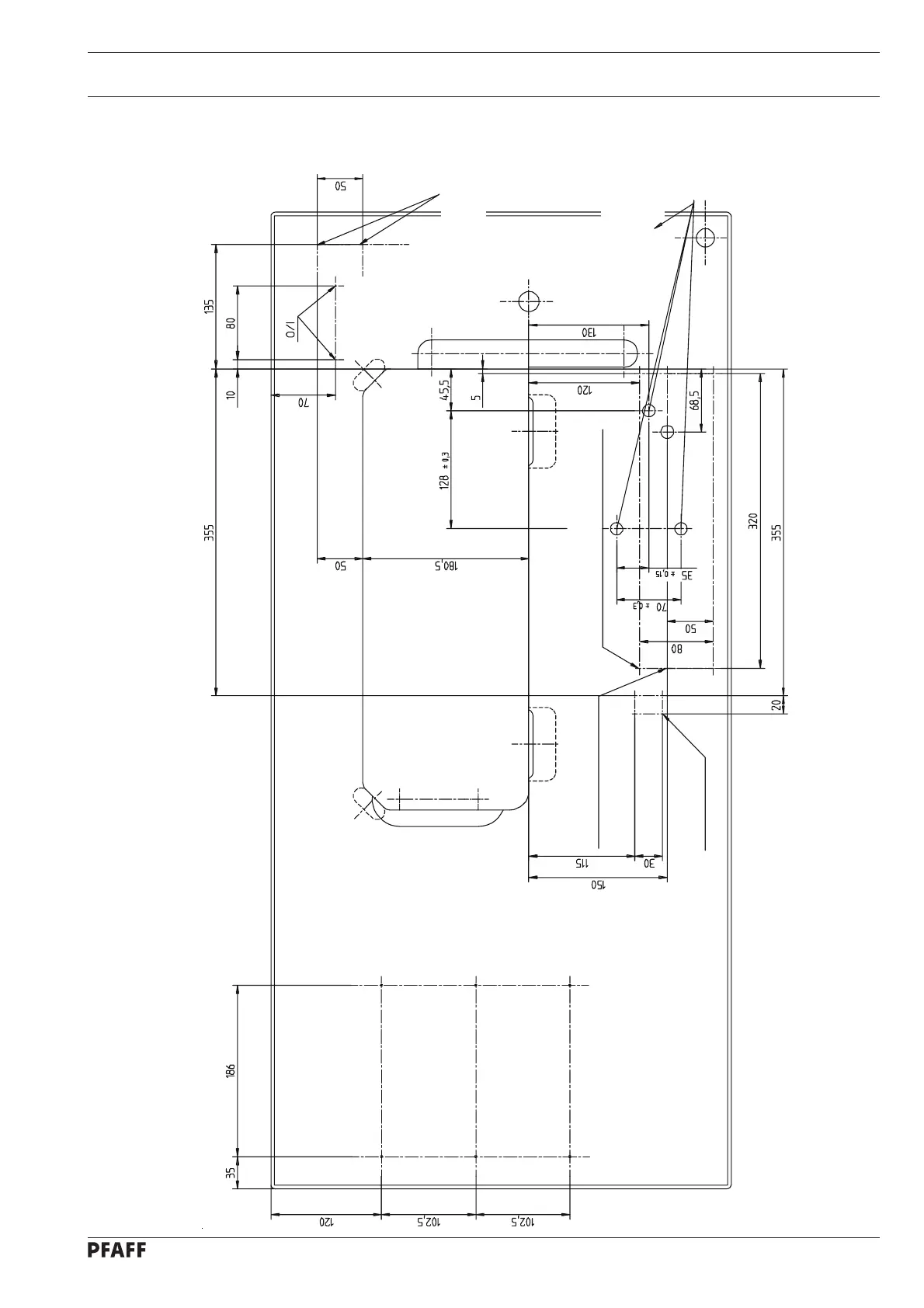

8.05 Table top assembly for the PFAFF 939 U

Speedcontrolunit

View:

Underside table top

Controlbox P 40 ED

Stand position

906-3550-005/895

Holes for fastening the

motor (screwed inserts

M8 x 30)
