12 - 35
Adjustment
12
.05.33

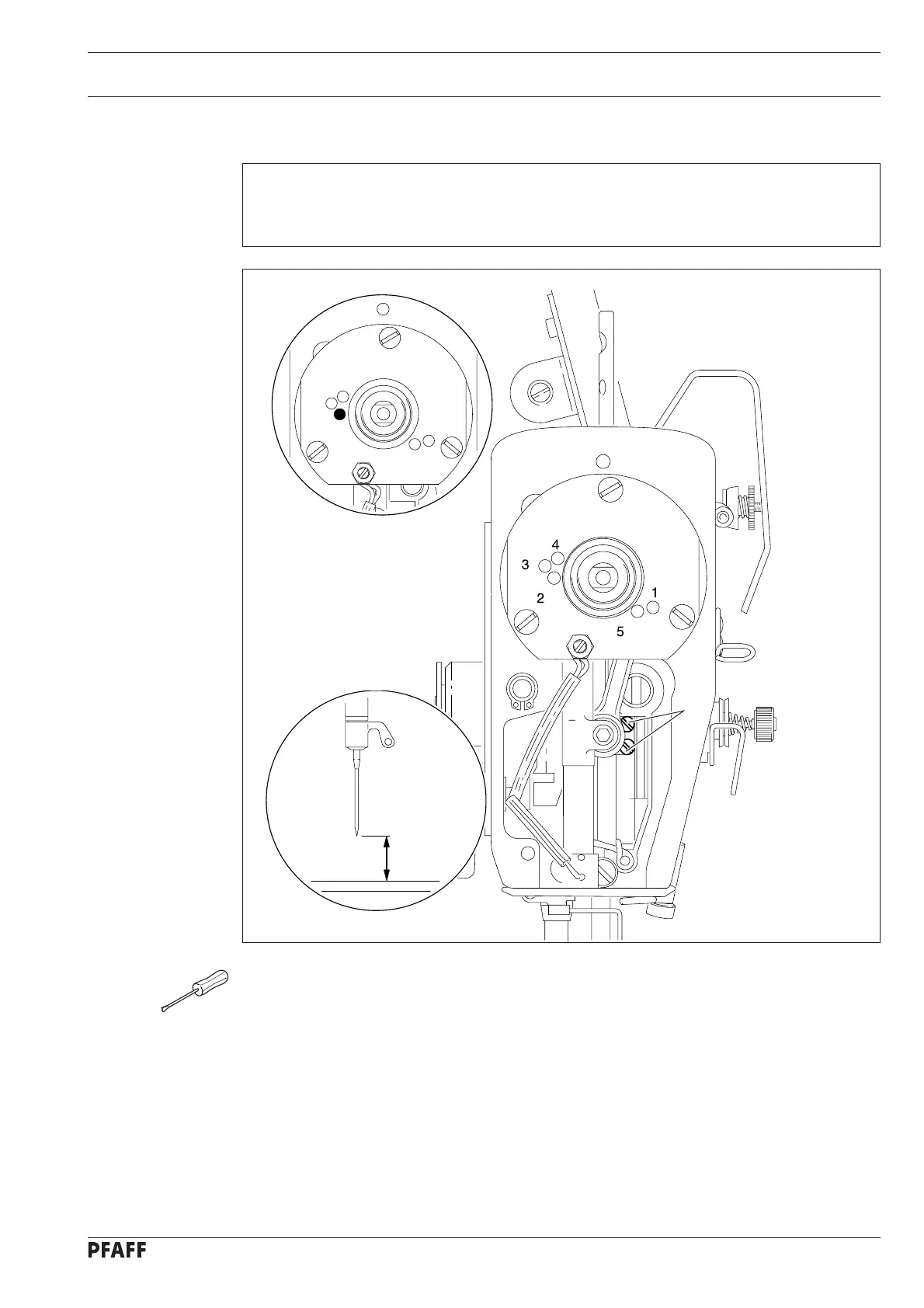

Pre-adjusting the needle height
Requirement
With the needle bar at tdc (hole 2) the distance between the point of the needle and the
needle plate must be
19 mm
.
Fig. 12 - 34
1
●
Without turning it, adjust the needle bar (screws
1
) in accordance with the
requirement.
81-019
4
2
5
1
3
81-079
19 mm
86
88
