9 - 6
Setting up
112-004

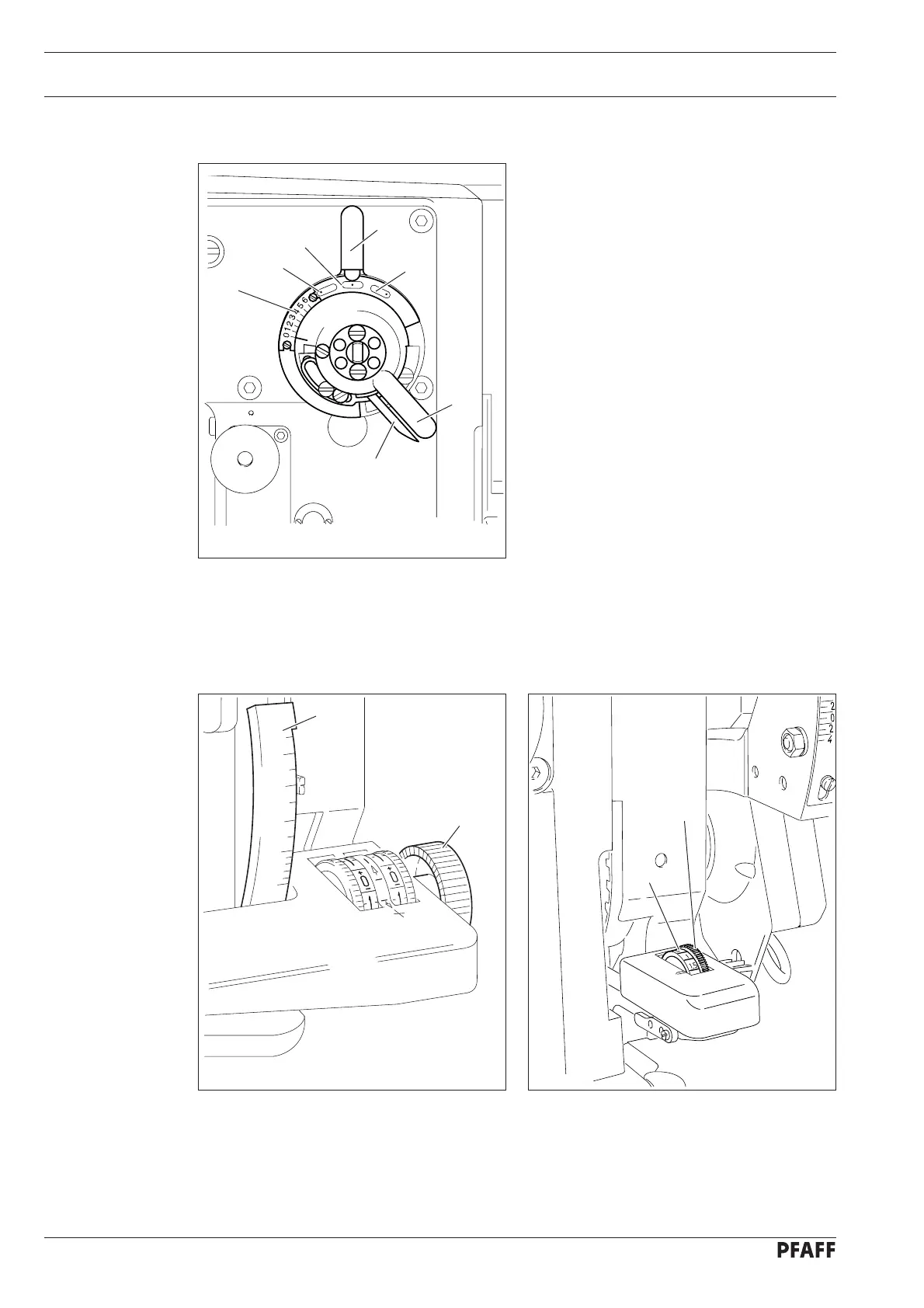

9.07 Setting the zigzag stitch and the stitch position
Set the zigzag stitch width by turning the
zigzag lever 1.
To vary the adjustment press catch 2
against zigzag lever 1.
The setting can be read from scale 3.
Set the stitch position by turning stitch
position lever 4.
L = stitch position on left
M = stitch position in the middle
R = stitch position on the right
M
L
R
4
3
2
1
Fig. 9 - 07
9.08 Adjusting the stitch length
Fig. 9 - 08
1
0
2
3
4
2
1
Adjust the stitch length by turning the feed regulator wheel 1.
The setting can be read on scale 2.
Fig. 9 - 09
1
2
PFAFF 939 U
PFAFF 3704-2/..
