11 - 2
Care and maintenance
Turn the machine off!
Danger of injury if the machine is started accidentally!
Only use oil with a mean viscosity of 10.0 mm
2
/s at 40°C and a density of
0.847 g/cm
3
at 15°C.
Lay the machine head on its back.
Fill the oil reservoir 1 up to the upper marking 3 through hole 2.
Before operating the machine for the first time or after longer stationary periods,
add a few additional drops of oil into the hook race (see arrow in Fig. 11-03).
Return the machine to its upright position with both hands. Danger of crushing
between machine head and table top!
We recommend PFAFF sewing machine oil.
Part no. 280-1-120 105.

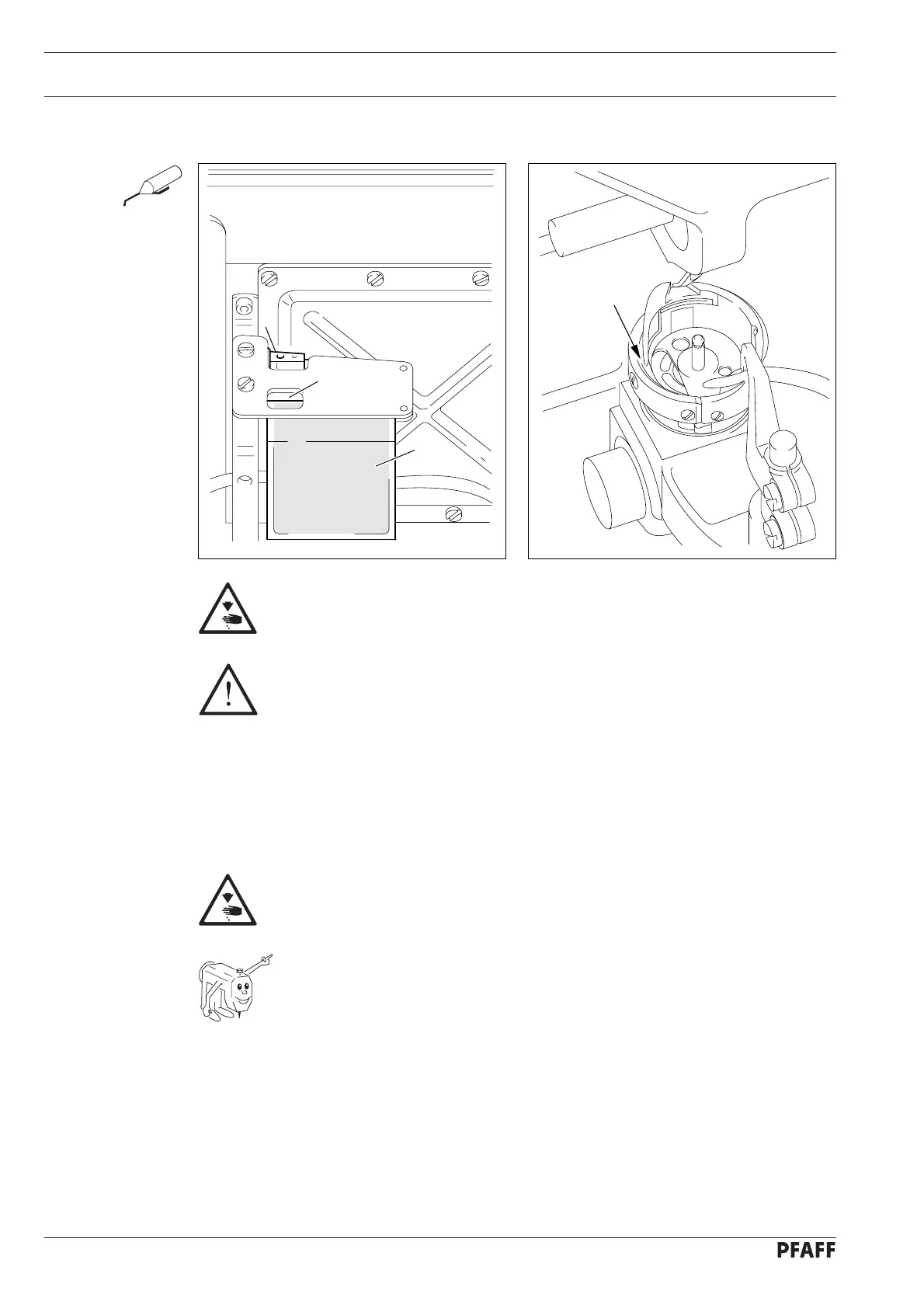

Fig. 11 - 02 Fig. 11 - 03
3
2
1
11.02 Lubricating the hook
