Care and maintenance
6

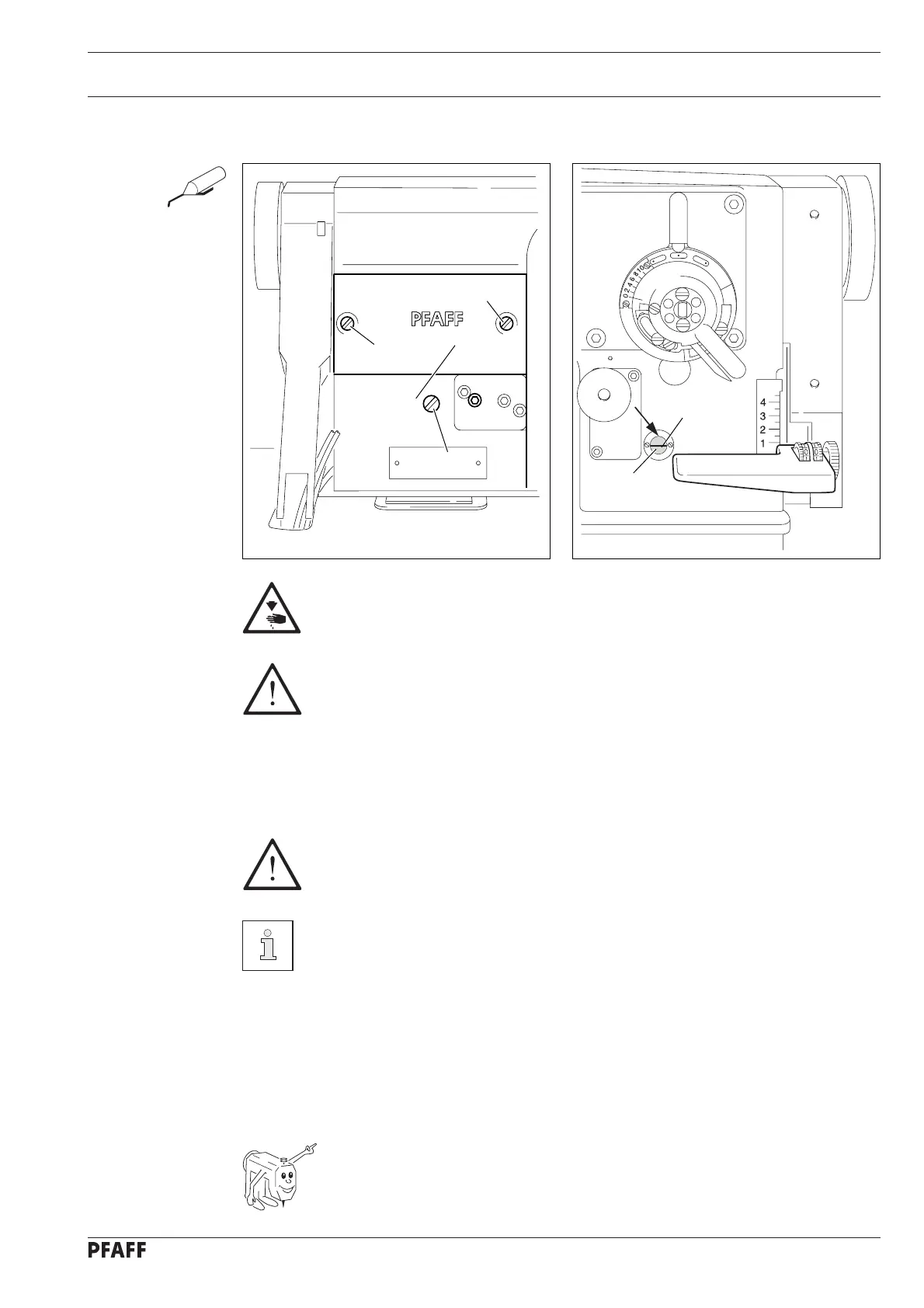

Fig. 11 - 04 Fig. 11 - 05
3
1
4
5
4
2
Switch off the machine!
Danger of injury if the machine is started accidentally!
Only use oil with a mean viscosity of 68.00 m
2
/s at 40° C and a density of
0.881 g/cm
3
at 15° C.
● Check the oil level before each operation.
● When necessary, remove screw 1 and pour in oil until sight glass 2 is full.
● Tighten screw 1.
Never allow the oil level to sink below the minimum mark 3!
Danger of damage to the machine!
To fill in larger quantities of oil, e.g. when filling for the first time before
commissioning, it is better to remove cover 5.
● Loosen screws 4 and remove cover 5.
● Take care that no dirt gets into the case.
● Pour in oil until sight glass 2 is full.
● Clean the surface of cover 5, the case and the seal.
● Replace cover 5 and tighten screws 4.
We recommend PFAFF sewing machine oil, part no. 280-1-120 146.
11.03 Oiling the zigzag drive
