12 - 11
Adjustment
81-019
4
2
5
1
3
Bring the needle bar, on the right of its throw, to t.d.c. and place the adjustment pin in
hole "2" of the bearing plate (locking the machine).
Turn the zigzag eccentric 1 (screws 2) in accordance with the requirement. Make sure that
he zigzag eccentric 1 is about 5 mm away from the right inner side of the casting wall.
Remove the adjustment pin from the bearing plate.
12.05.09 Zigzag stitch movement (only on the PFAFF 3704-2/..)
Requirement
When the needle bar, on the right of its throw, is positioned at t.d.c. (adjustment hole "2"),
the needle bar should not move laterally when the zigzag stitch adjustment lever is moved
to and fro.

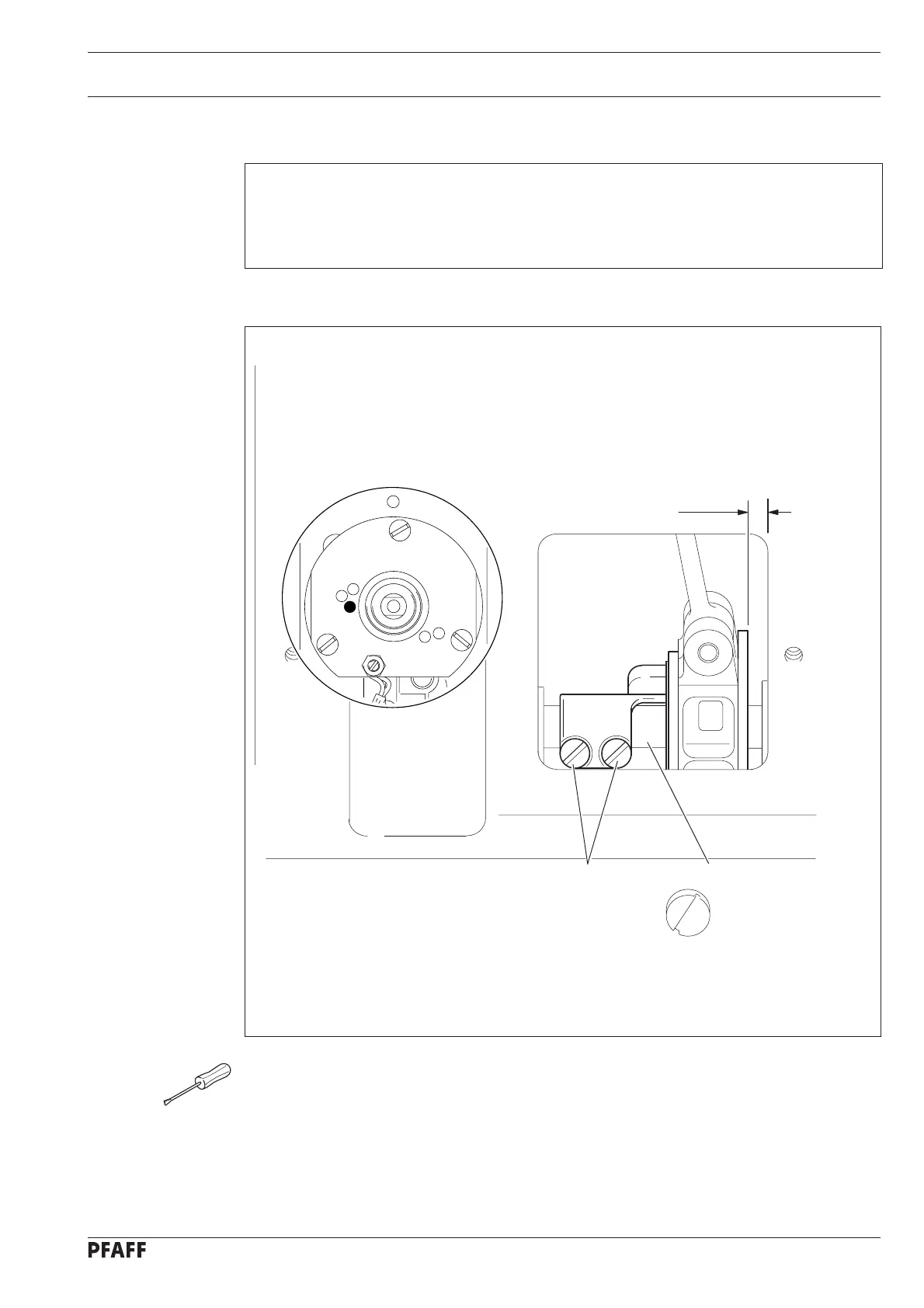

Fig. 12 - 10
1
2
5 mm
