Installation and commissioning
Fig. 8 - 05

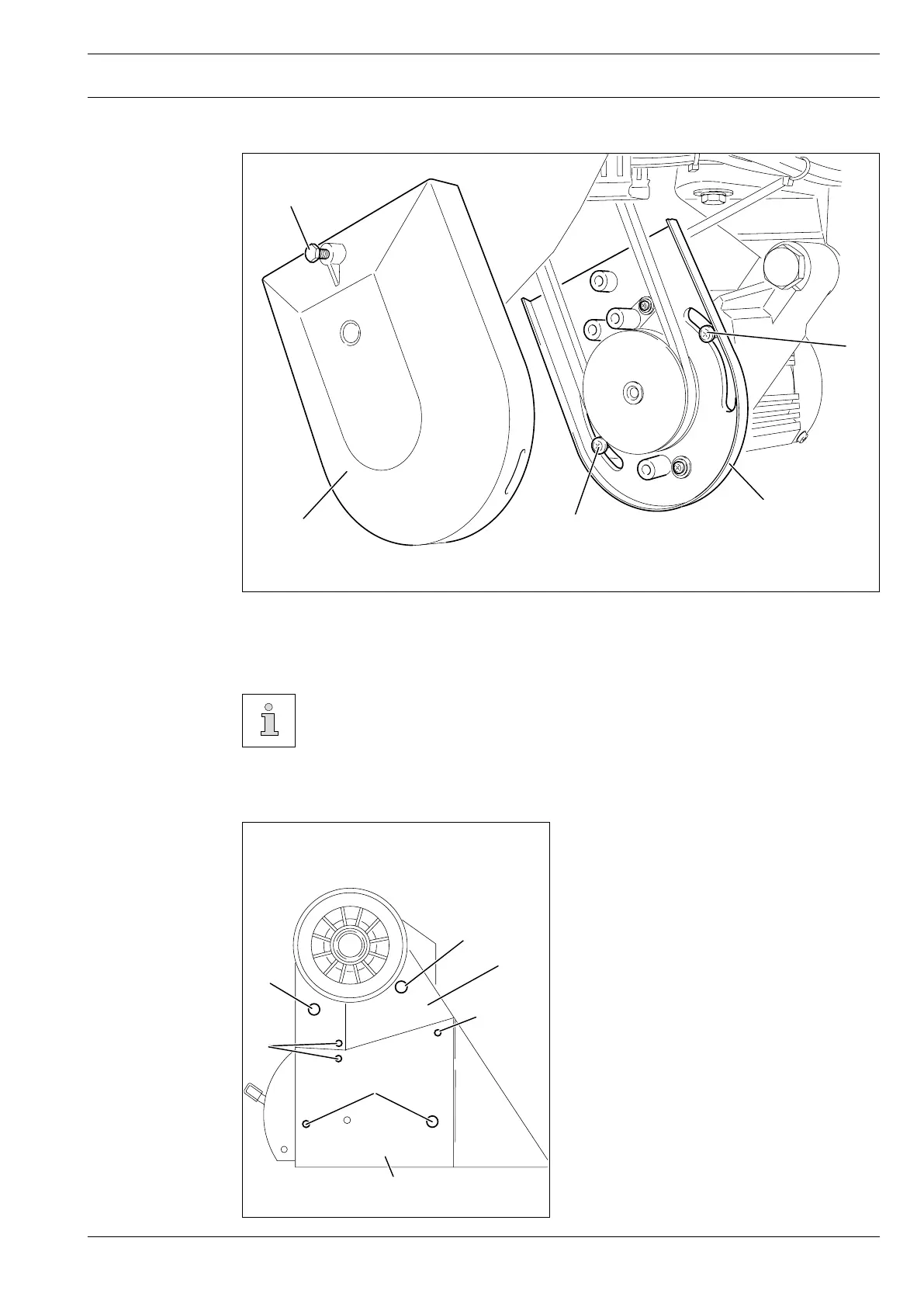

8.01.05 Fitting the top V-belt guard
Fasten bottom section of V-belt guard 1
with screws 2.
Fasten top section of V-belt guard 3 with
screws
4.
●
●
Fig. 8 - 04
109-07
1
2
3
4
2
8.01.04 Mounting the bottom V-belt guard
Loosen screws 2 and adjust belt guard support 1 so that the motor pulley and V-belt run
freely.
Tighten screws 2 and fasten belt guard 3 with screw 4.
Fig. 8
-04 shows a Quick-motor. If a different motor is used, follow the instruc-
tions of the Motor Instruction Manual.
●
●
1
2
4
4
4
4
3
