22
Installation and commissioning

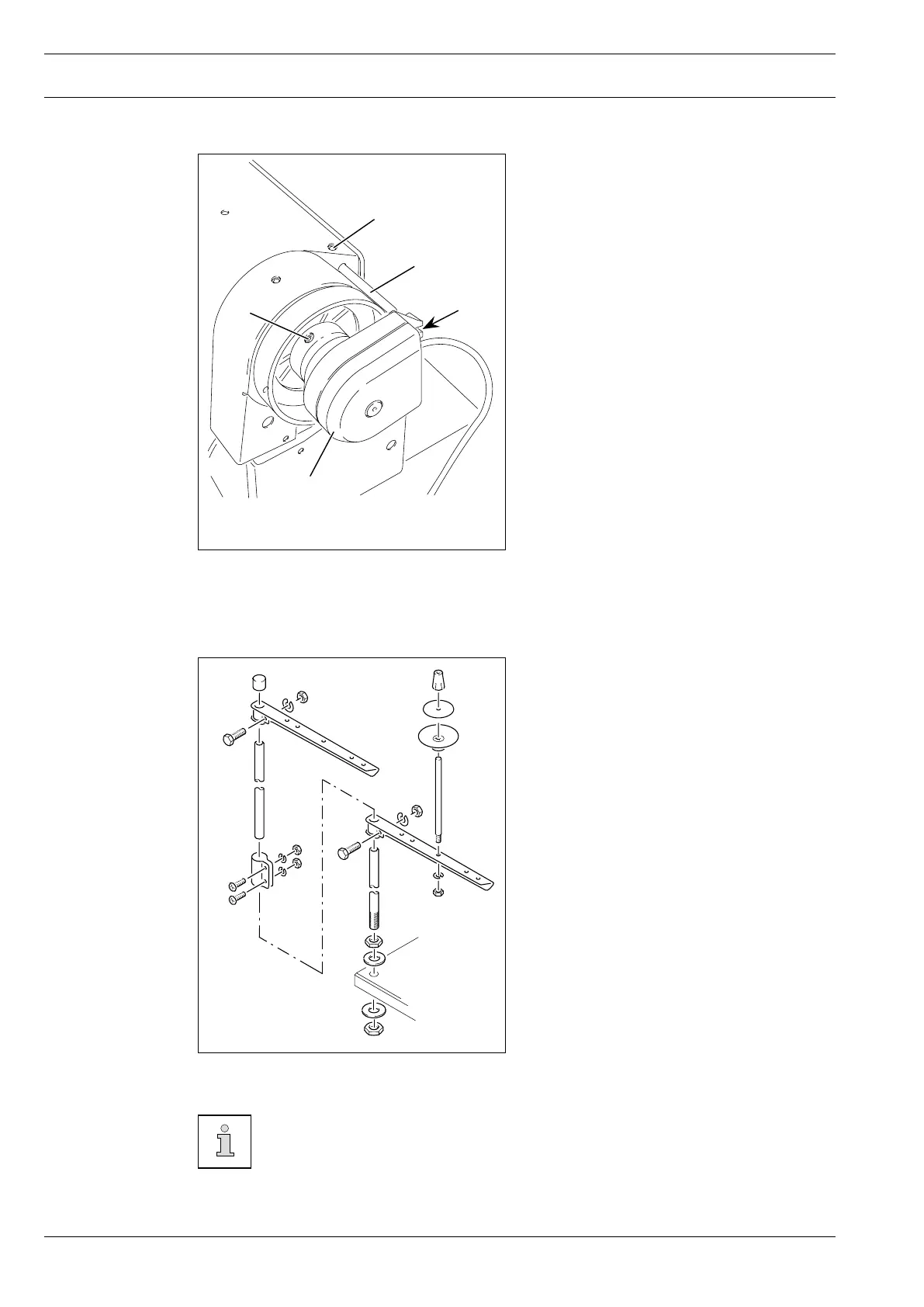

8.01.07 Fitting the reel stand
Fit the reel stand as shown in Fig. 8 - 07.
Afterwards insert the stand in the hole in
the table top and secure it with nuts pro-
vided.
●
●
Fig. 8 - 07
Table top mounting and circuit diagrams
(see Chapter 11)
Fig. 8 - 06
8.01.06 Fitting the synchronizer
Insert position stop 1 in the machine
case and fasten it with screw 2.
Place synchronizer 3 on the shaft so that
stop 1 is in the slot of synchronizer 3,
see ar
ro
w.
Tighten screws 4 .
Insert the synchroniz
er plug into the ad-
apter (see Chapter 8.02 Connecting the
plug-in connections and earth cables
).
●
●
●
●
2
3
1
4
