Setting up

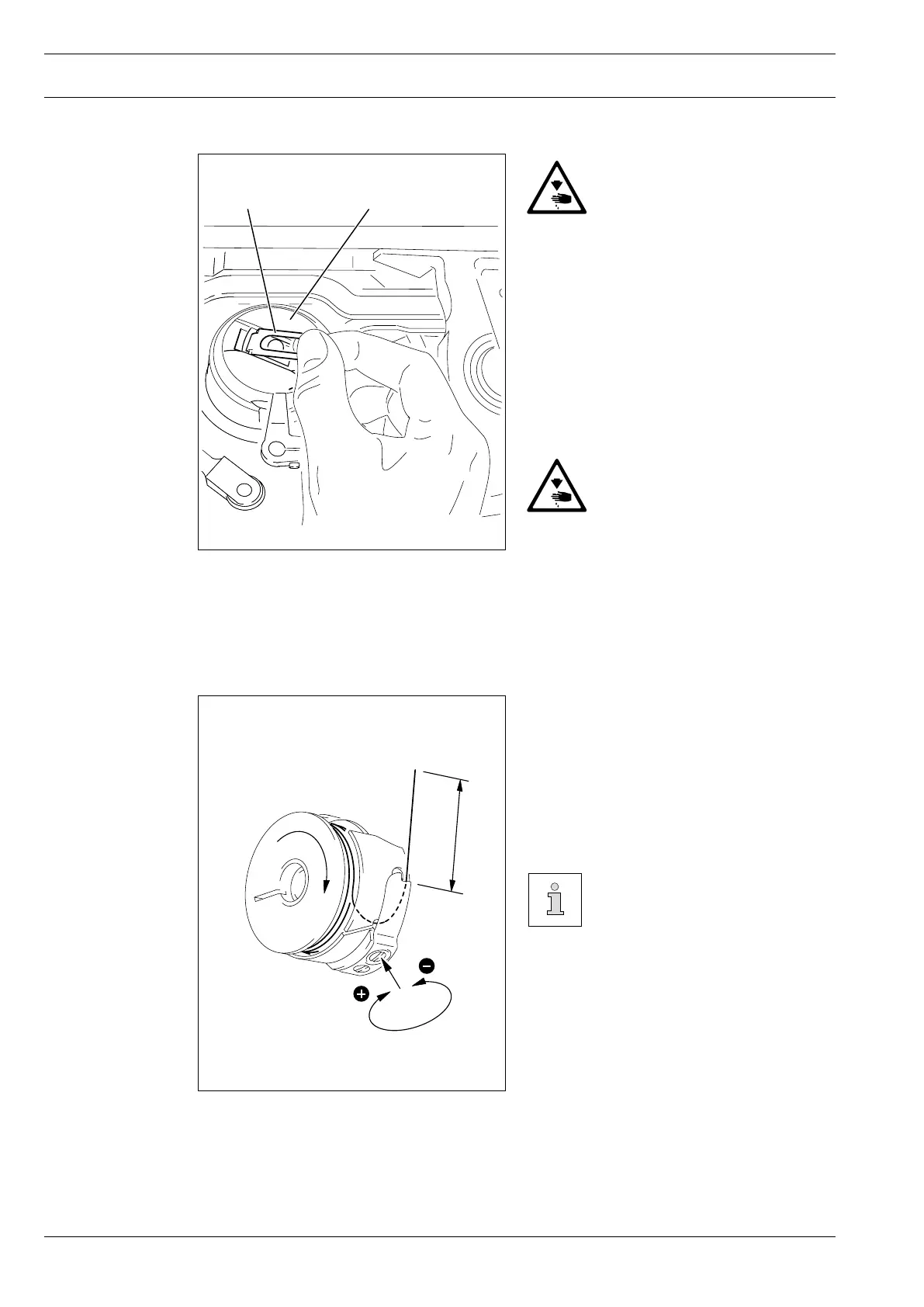

9.03 Removing / Inserting the bobbin case
Switch off the machine!
Danger of injury due to uninten-
tional starting of the machine!
Removing the bobbin case:
Tilt back the machine.
Raise latch 1 and remove bobbin case 2.
Inser
ting the bobbin case:
P
ress bobbin case 2 until you feel it snap
into the bobbin case base.
Return the machine to its up-
right position using both hands!
Danger of injury by cr
ushing
between the machine and the
table top!
●
●
●
Fig. 9 - 03
1
2
9
.04 Inserting the bobbin case / Adjusting the bobbin thread tension
Insert the bobbin into the bobbin case.
Pass the thread through the slot under
the spring according to Fig. 9-04.
Pass the thread through the notch.
A
djust the thread tension by turning
screw
1.
When the thread is pulled, the
bobbin must rotate in the direc-
tion of the arrow
.
●
●
●
●
Fig. 9 - 04
1
5 cm
