Pfaff 487 User Manual

23
Installation and commissioning

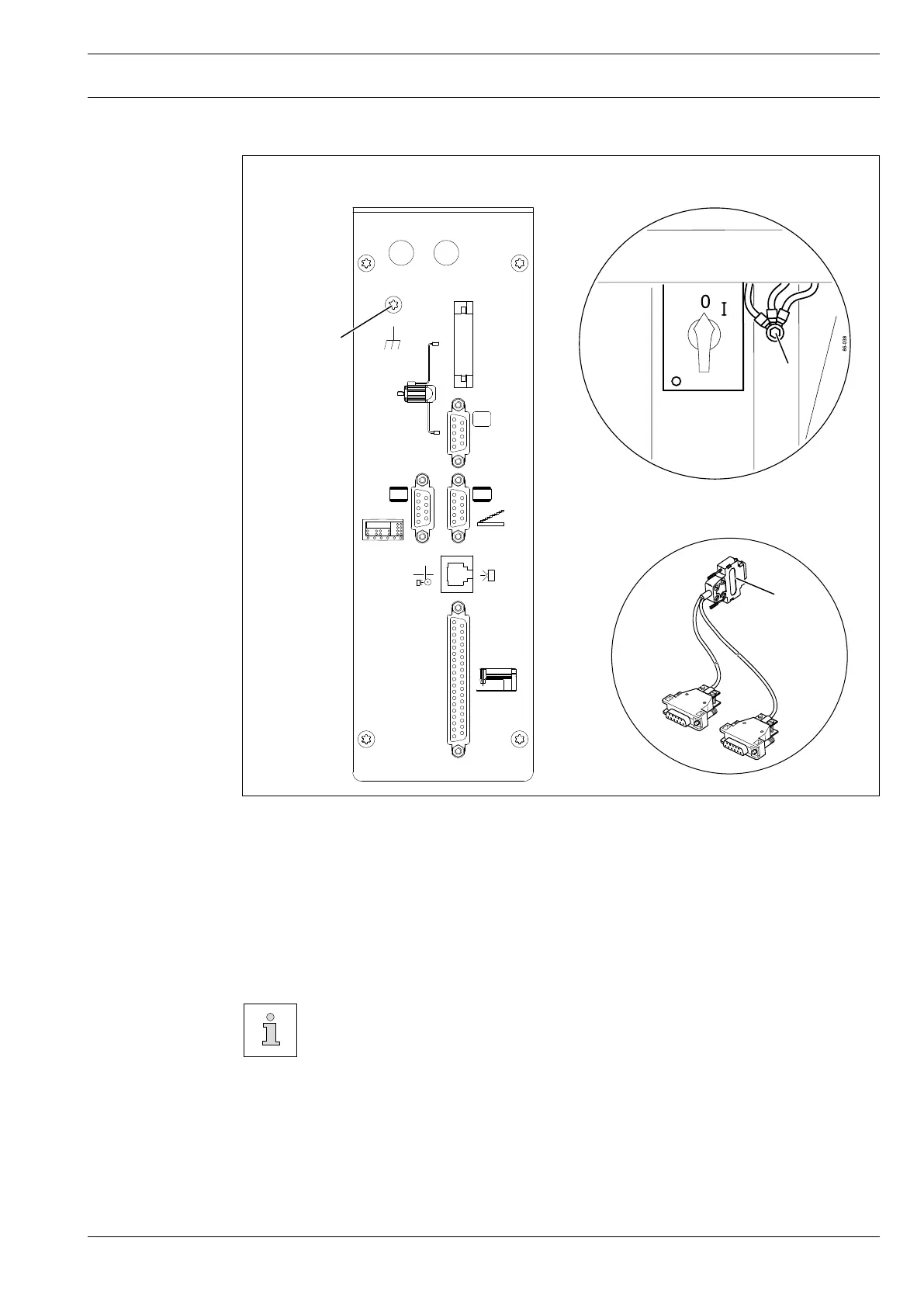

Fig. 8 - 08
8.02 Connecting the plug-in connections and earth cables
X1
X5
X4
X7
X6
X2
X3
Connect all plugs as labelled to the control box .
Screw the earth cable from the sewing head and the main switch to earth point A.
Connect earth point A to earth point B with earth cable.
Insert plug 1 from the adapter cable to bush X 2.
Connect the motor to the "Motor" plug and the synchronizer to the "Extern" plug.
F
asten the earth cable from plug X1 to earth point B
.
On machines with programmable fullness control
(sub-class -91
8/55, see separate instruction manual)
●
●
●
●
●
●
A
B
1
Moto
r
Extern
