Pfaff powerline 2235 Setup Instructions

24
● Fit the V-belt to the balance wheel and the motor pulley.
● Loosen nut 1 and apply tension to the V-belt by turning motor mounting 2.
● Tighten nut 1.
● Loosen screws 3 and adjust belt guard bracket 4 so that the driver pulley and V-belt are
running freely.
● Tighten screws 3 and fasten belt guard 5 with screw 6 (nut 7).
Installation

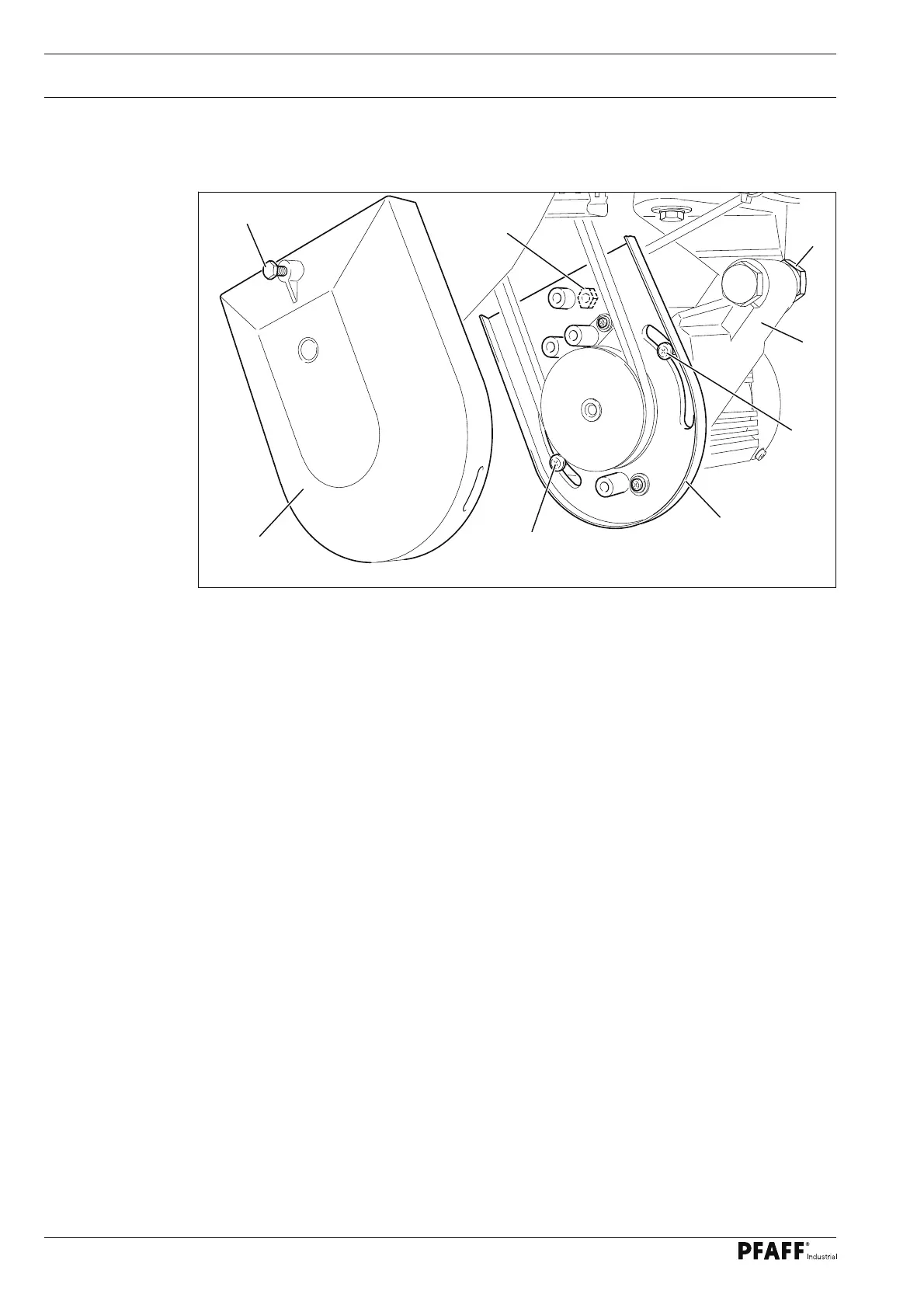

Fig. 6 - 02
1
2
5
6
3
3
4
7
6
.02 Fitting the V-belt and assembling the bottom belt guard
6
.02.01 P45 PD2-L and P74 ED-L
6
.02.02 AB 321 and PF 321
● Fit the V-belt to the balance wheel and the motor pulley.
● The V belt is tensioned by turning the motor bracket.
● Mount the lower belt guard in accordance with the instruction manual for the drive.

Pfaff powerline 2235 Specifications

General

Brand	Pfaff
Model	powerline 2235
Category	Sewing Machine
Language	English
