Installation

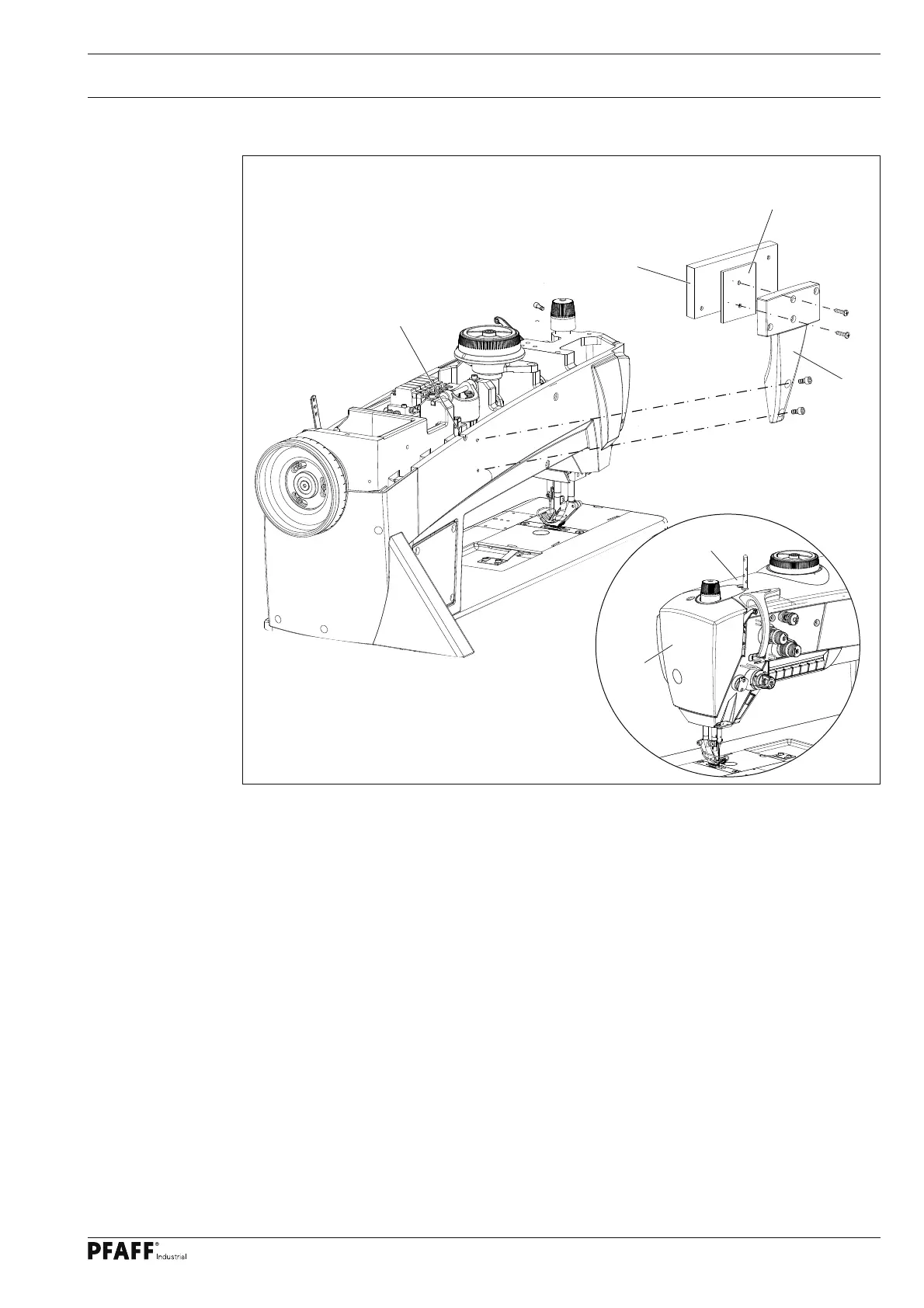

Fig. 6 - 05
6.05 Mounting the control panel
● Attach the control panel bracket 1 with two screws M5 x 12 to the machine.
● Attach spacer plate 2 with one screw M5 x 12 to the control panel 3 (with motor
AB 321 and PF 321 only)
● At
tach control panel 3 to bracket with two screws 5 x 10.
● Lead the control panel cable through hole
4 in the case.
● Connect the control panel plug with the connector provided for the control panel in the
arm of the machine.
● Reattach face plate 5 and arm cover 6.
3
2
1
4
6
5
