5.02 Fitting the transformer to the LED lamp
● Attach transformer 1 to the table top with four screws 4 x 20.
● Screw the power line with clamps and main leads cleat to the table top.
● Connect the cable to the LED lamp with a connector.
LED-Lamp

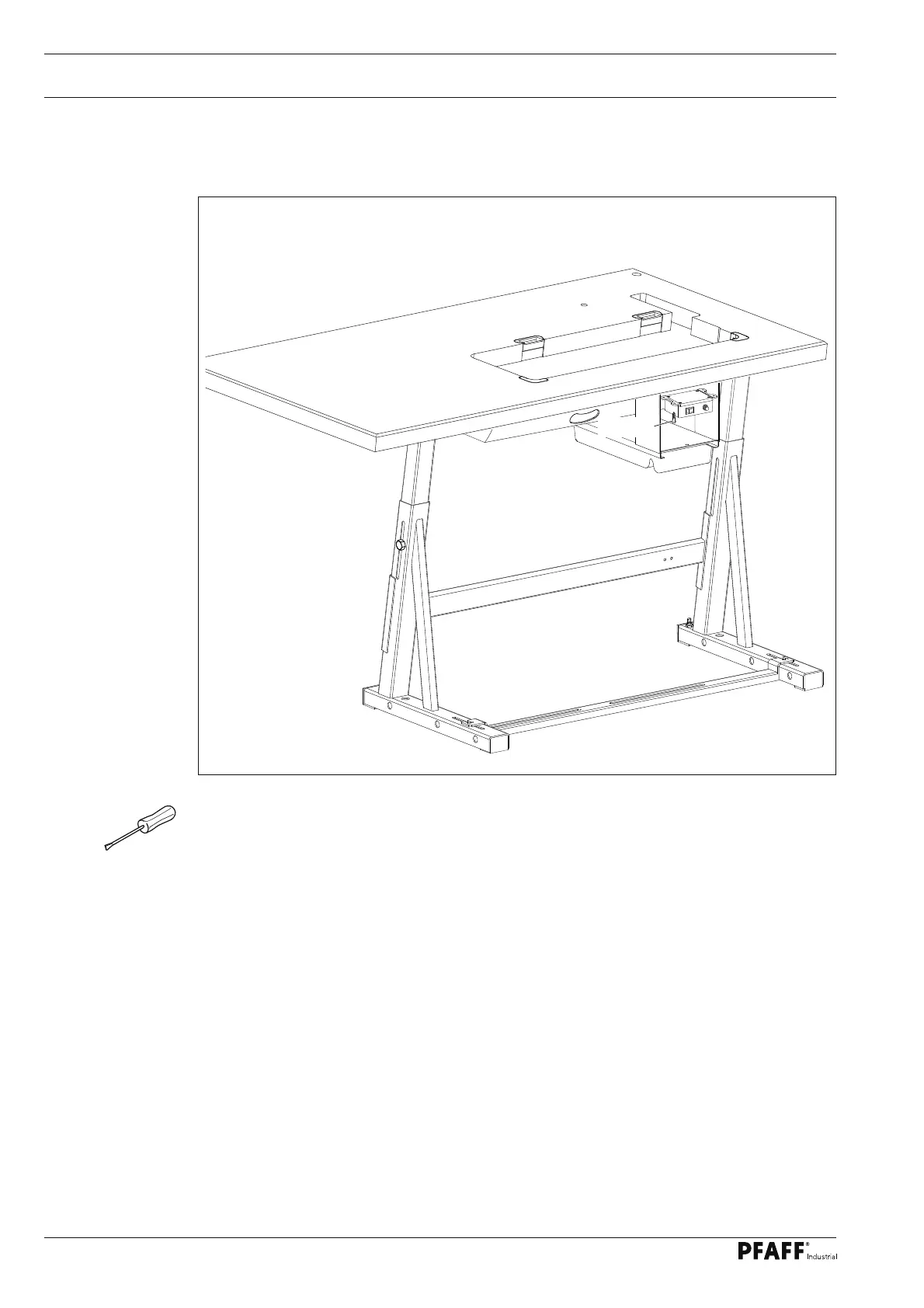

Fig. 5 - 02
4x20 (4x)
