Pfaff powerline 2235 Setup Instructions

28
Installation
Fig. 6 - 06
● Connect all connectors to the control unit 1 as shown in the block diagram
(see chapter 6.07).
● The following ground cables must be attached in order to discharge static electricity.
● Securely attach the ground cables for the machine to ground point A.
● Connect the ground point on the motor base and on the control unit by way of a ground
cable to ground point A.
● For control unit P45 PD-2-L and P74 ED-L, connect the ground cable to the master switch
and ground point A.
● For control unit P45 PD-2-L and P74 ED-L screw-connect the ground cable from plug X1 to
the ground point of the control box.

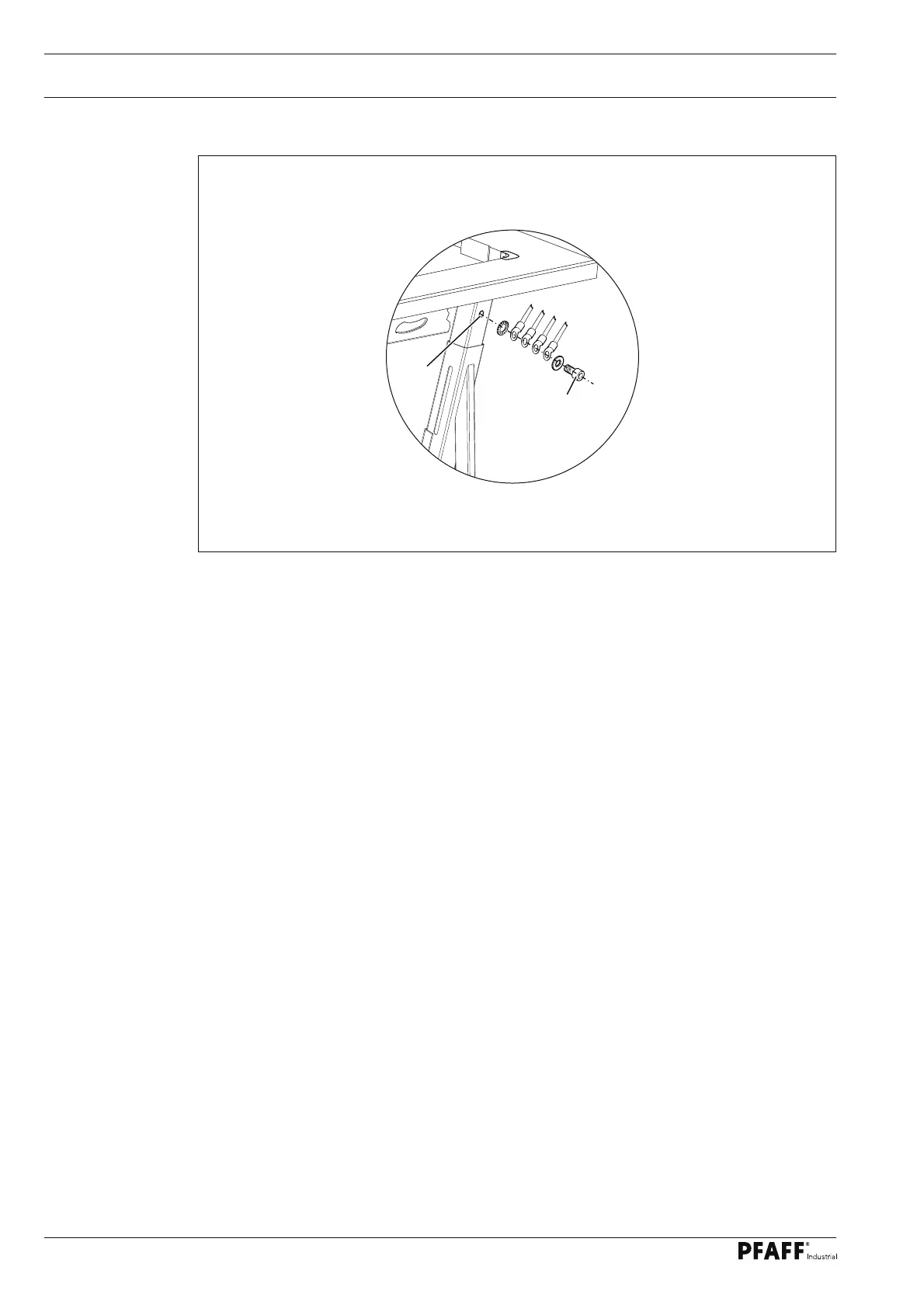

6.06 Connecting the plug-in connections and earth cables
M6x16
A
