Installation
6.03 Assembling the thread guide and take-up lever guard
● Remove face plate 1 and arm cover 2 (screws 3).
● Adjust thread guide 4 (screw 5) as shown in Fig. 6 - 03.
● Screw thread guide 6 into threaded hole 7 and fi t counter nut 8 from below.
● Fasten take-up lever guard 9 to the arm cover 2 with screws 10 (M4x10) and nuts 11 as
shown in Fig. 6 - 03.
Leave face plate and arm cover unscrewed for the next assembly steps.

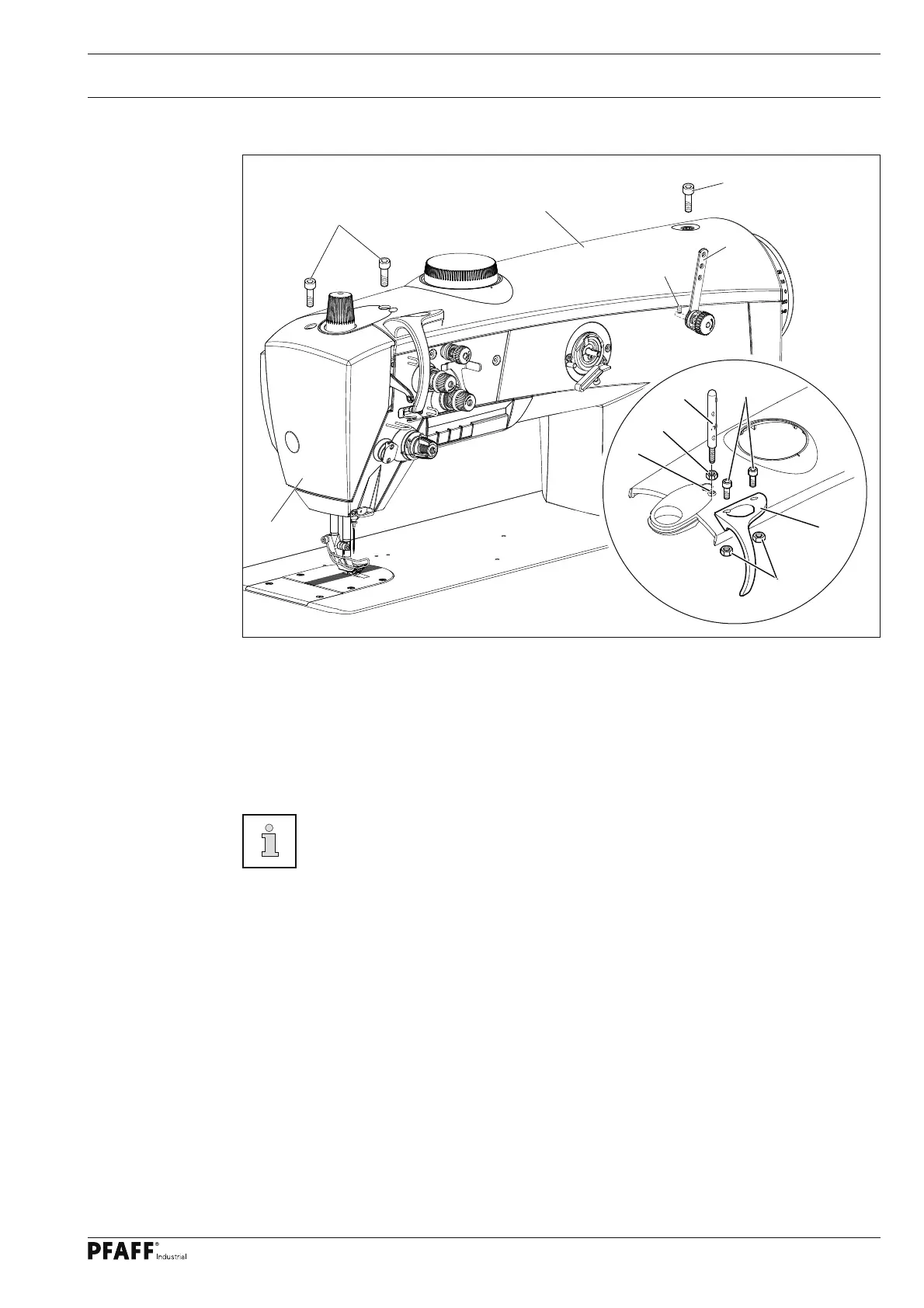

Fig. 6 - 03
3
3
5
4
1
2
8
11
6
7
9
10
