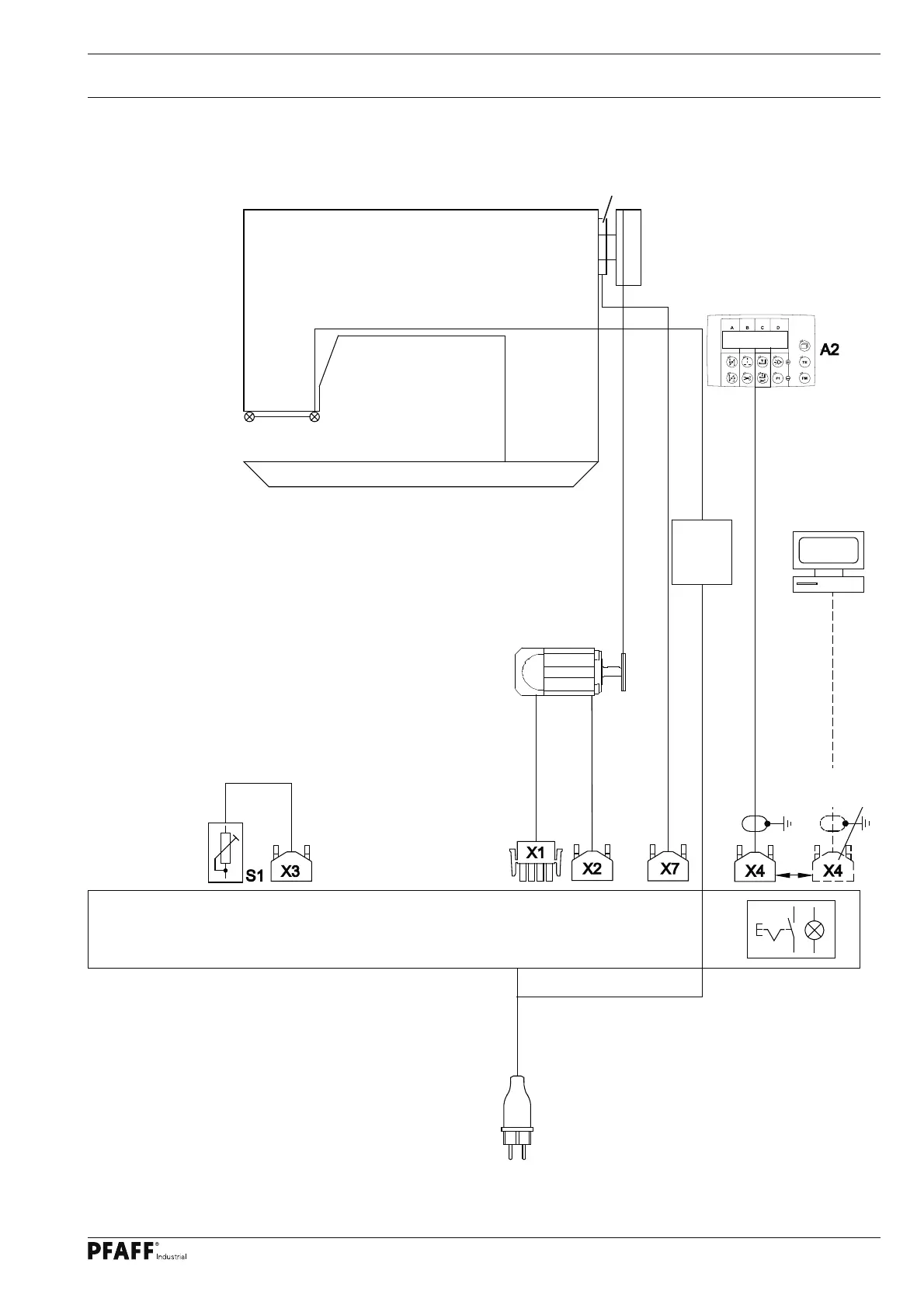

6.07.03 PFAFF 2545/46 BASIC with PicoDrive P45 PD2-L
Installation
BDF - PICO TOP
PC
H1
2545 BASIC
2546 BASIC
for
software
download
Q1; HQ1
power switch
Mains plug
BDF - PICO TOP
Control unit QA40 PD
A1
PC
Synchronizer PD 6
Ministop drive
unit (long) with
incremental
transducer
LED
power
supply
unit
