Adjustment
10
1.05.05 Lifting motion of the bottom feed dog
Requirement
When the balance wheel is positioned at 180°, the feed dog should be at t.d.c.
● Adjust eccentric 1 (screws 2) in accordance with the requirement.
Use the kit with the Order No. 91-501 399-90 to deactivate the transporter lif-
ting movement.
● Install assembly and adjust
● Remove collar 3 (screws 4) and crank 5 (screw 6, nut 7).
● Mount the preassembled parts of the kit as shown in fi gures 1 - 05a.
● Adjust bottom transporter height and stroke movement where required.

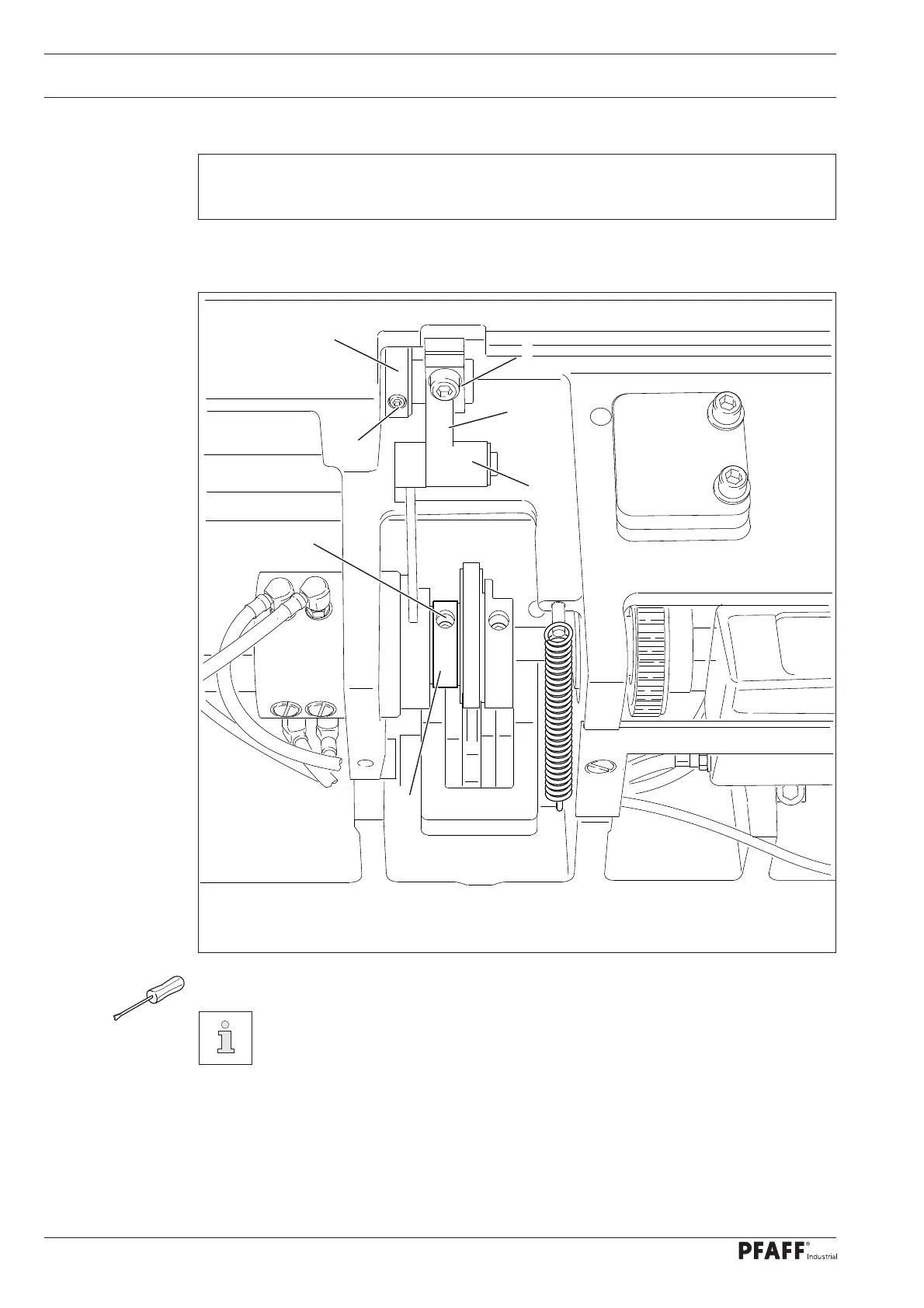

Fig. 1 - 05
1
2
3
4
6
5
7
