Pfaff Powerline 2545 - Thread Clamp

Adjusting
43

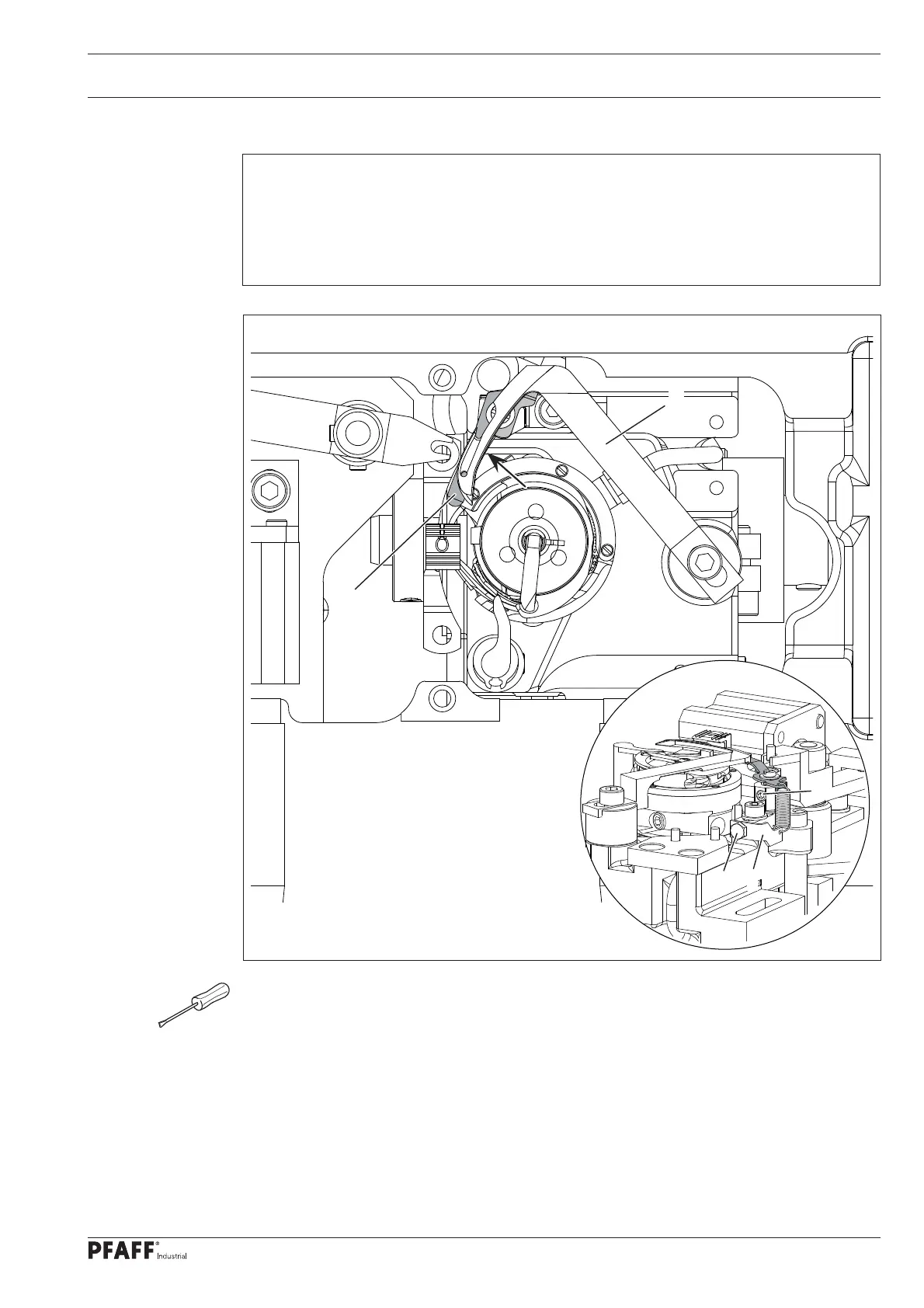

Fig. 1 - 35
1.07.11 Thread clamp
Rule
1. The right edge of the ripper 1 should be fl ush with the right edge of the catcher 5 in it´s
rest position.
2. The ripper 1 should sllightly touch the catcher and the top thread gets easy pulled out
of the ripper.
● To see better, remove the throat-plate and the feed dog.
● Move the thread-ripper 1 (screw 2) according to the setting.
● Move support 3 (screw 4) according to the setting.
● Fix the Throad-plate and the feed dog..
