Pfaff Powerline 2545 Adjustment Manual

Adjusting
35
Fig. 1 - 27
1.07 Adjusting the thread trimmer device -900/82
1
.07.01 Preliminary testing
1
.07.02 Assembly of the thread clamp carrier and thread catcher

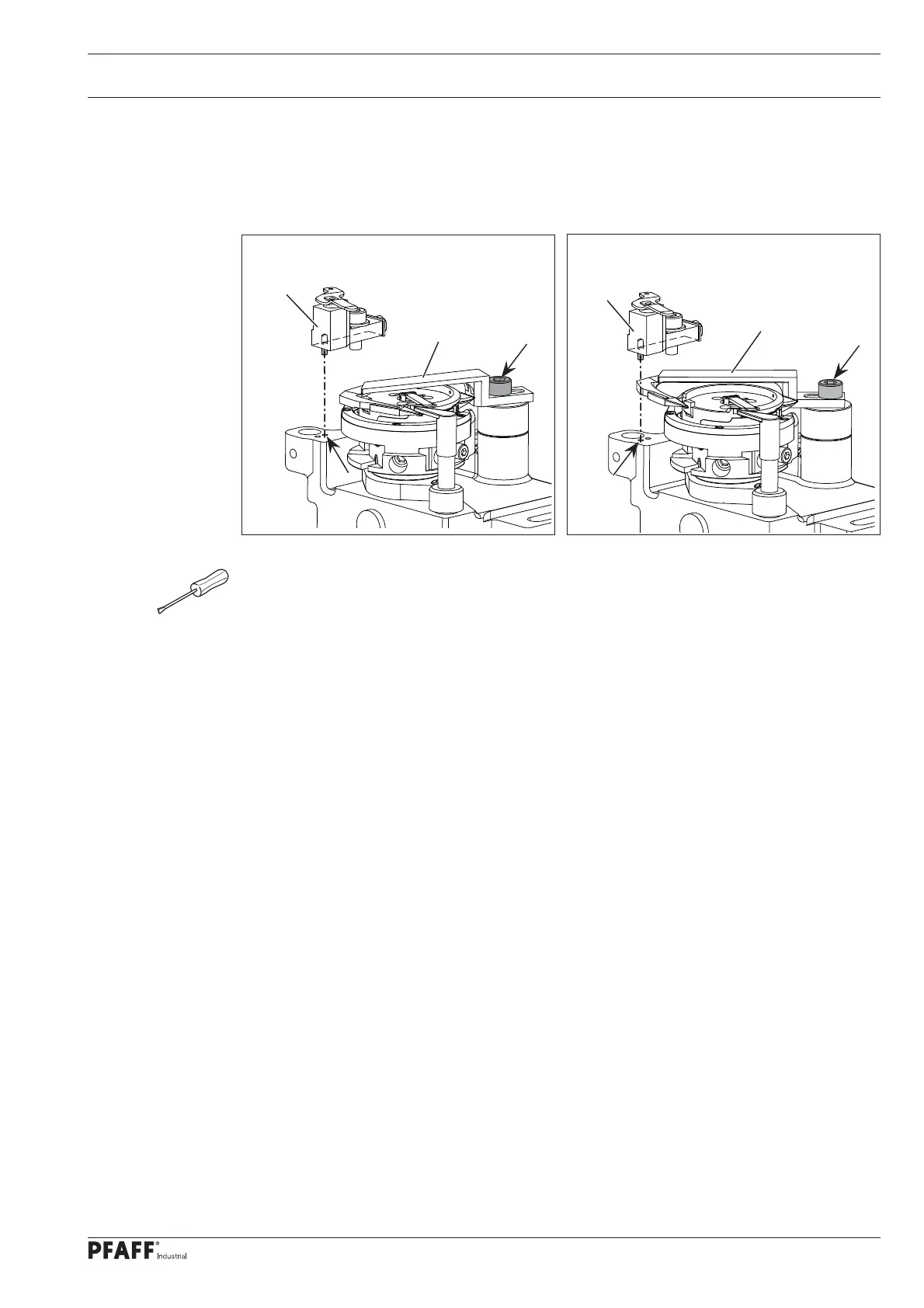

● Assemble thread clamp carrier 1 and thread catcher 2 depending on the hock size:
- Large hock assembly (bobbin diameter 26 mm) is shown in Fig. 1 - 27.
- Extra large hock assembly (bobbin diameter 32 mm) is shown in Fig. 1 - 27a.
1.07.03 Check settings according to the following chapter:
● Check the home position of the handwheel.
● Check lower, upper and needle feed sliding movement.
● Check bottom transporter lifting movement..
Fig. 1 - 27a
1
2
1
2
