59

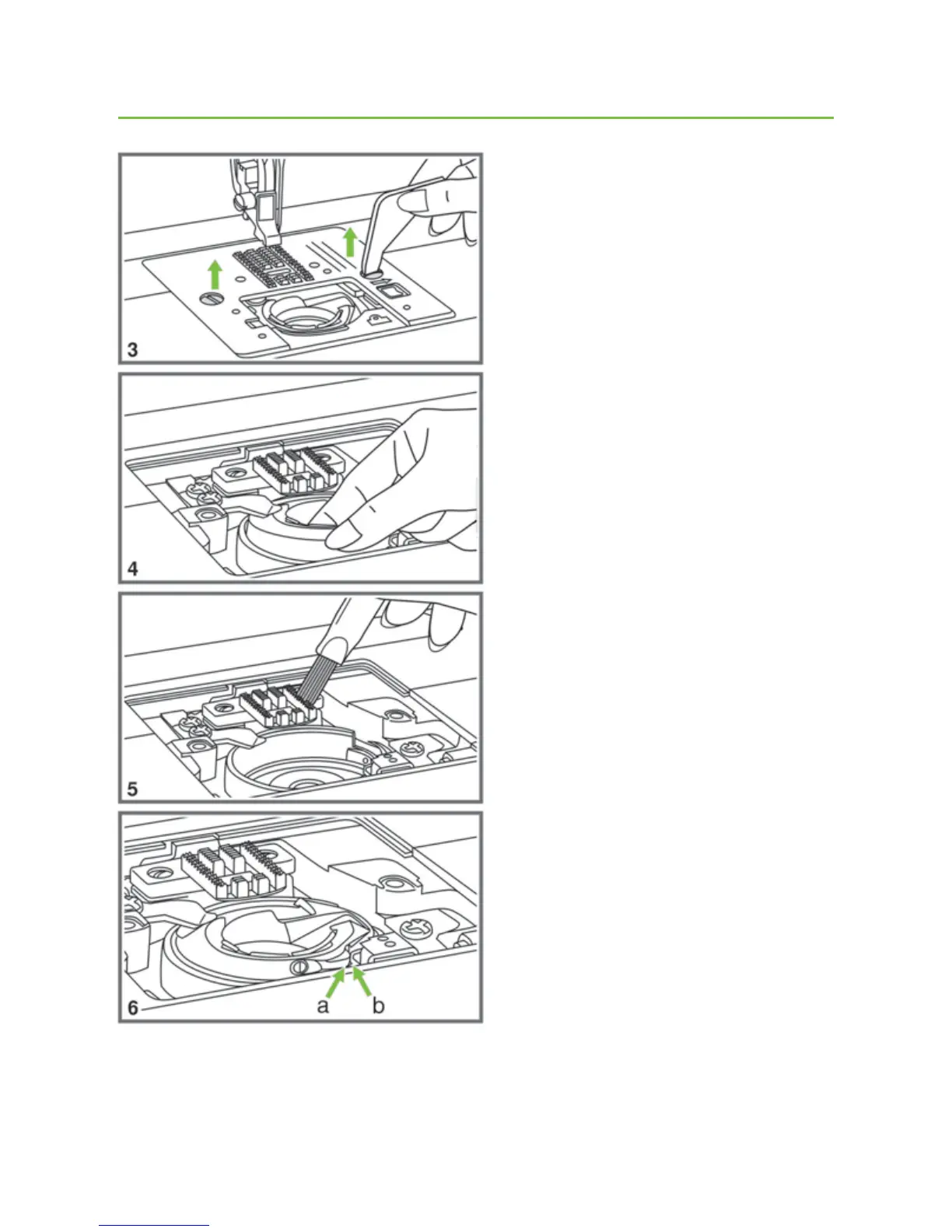

3.
Remove the needle, presser foot and
presser foot holder
. Remove the screw
holding the needle plate and remove the
needle plate.
4.
Lift up the bobbin case and remove it.
5.
Clean the hook race, feed dog and bobbin
case with a brush.
Also clean them, using
a soft, dry cloth.
6.
Replace the bobbin case into the hook
race so that the tip (a)
fi
ts to the stopper
(b) as shown.
7.
Replace all other parts.
58
60
Table of Contents
Table of Contents
4
Principal Parts of the Machine
6
Product View
6
Buttons of the Machine
7
Lcd Screen
9
Pattern Chart
10
Accessories
11
Connecting the Machine to the Power Source
12
Start Sewing
13
Speed Adjustment Lever
13
Foot Control
13
Replacing the Needle
14
Changing the Presser Foot
14
Adjusting Presser Foot Pressure
15
Matching Needle/ Fabric/ Thread
15
Type of Presser Foot Chart
16
Winding the Bobbin
17
Inserting the Bobbin
19
Threading the Upper Thread
20
Using the Needle Threader
22
Top Thread Tension
23
Bringing up the Bobbin Thread
24
Cutting the Thread
24
Presser Foot Lift
25
Raise or Lower the Feed Dogs
25
Operation Buttons
26
Reverse Button
26
Auto-Lock Button
27
Needle Up/Down Button
27
Function Buttons
28
Stitch Width Button
28
Stitch Length Button
29
MODE Selection Button
29
Pattern Mirroring Button
30
Memory Buttons
31
Memory Button
31
Clear Button
31
Arrow Button
31
Selection Buttons
32
Direct Pattern Selection Buttons
32
Number Buttons
32
Useful Skills
33
Sewing Corners
33
Reverse
33
Free Arm
33
Sewing on Heavy Fabric
34
Adjusting the Stitch Width
35
Straight Stitches and Needle Position
35
Changing the Needle Position
35
Changing the Stitch Length
35
Zigzag Stitches
35
Adjusting the Stitch Length
35
Stretch Stitches
36
Overcasting Stitches
37
Using the Overcasting Foot
37
Using the Standard Foot
37
Blindhem
38
Button Sewing
39
Buttonhole Stitching
40
Making a Buttonhole on Stretch Fabrics
43
Bar Tack Stitch
44
Eyelet Stitch
45
Darning Stitch
46
Zipper Insertion
48
Quilting
49
Scallop Edges
49
Free-Motion, Darning, Embroidery and Monogramming
50
Darning
50
Embroidery
51
Monogramming
51
Mirroring
52
Memory
53
Program Patterns or Letters
53
Add Patterns or Letters
54
Clear Patterns or Letters
54
Recall and Sew the Memorized Pattern
55
Warning Functions
56
Warning Animation Message Display
56
Instruction Animation Message Display
56
Warning Beeping Sound
56
Replacing the Light Bulb
57
Maintenance
58
Cleaning the Screen
58
Cleaning the Sewing Machine Surface
58
Cleaning the Hook
58
Troubleshooting Guide
60
Quick Reference Chart
62
