S-DRIVE - INSTALLATION PG DRIVES TECHNOLOGY
SK76745/10

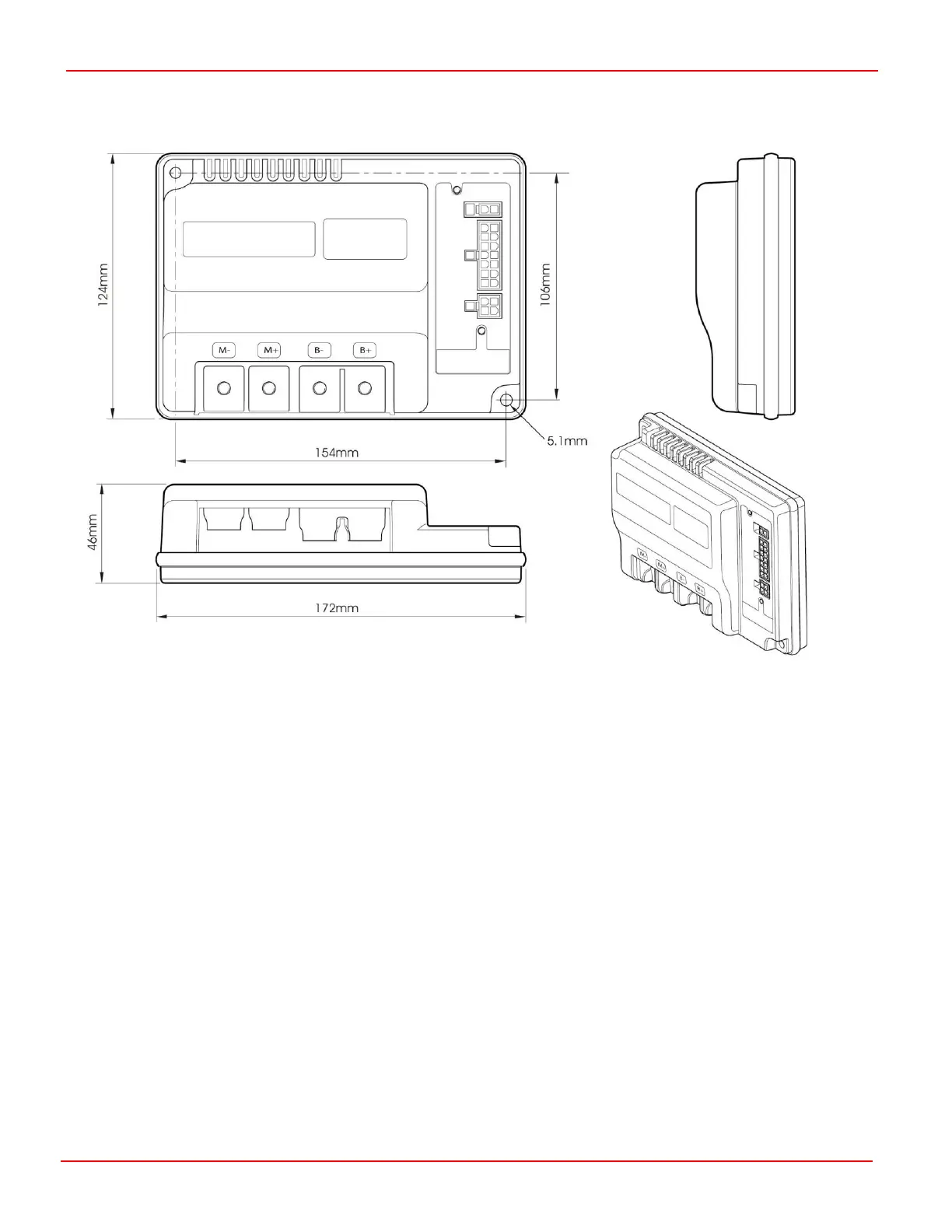

1.2.3 S200A Controller
1.2 Program Settings
You must supply the controller programmed with the manufacturer’s preset settings. Controllers are always supplied by PGDT with
the preset settings shown on the data sheet.
The preset settings are chosen with the scooter manufacturer to ensure safe operation and compliance with relevant legal
requirements over the whole of the operating range of the throttle, and speed control.
The scooter must stop within the maximum distance specified for the country in which the scooter will be used. For countries
requiring CE marking this is as specified in EN12184.
If users with particular disabilities need very low braking rates and this results in a longer stopping distance, the maximum speed
must be reprogrammed so that the stopping distance requirement is satisfied.
State in the scooter user handbook that it is the responsibility of the person programming the controller to make sure that the
stopping distance requirement is satisfied. If the braking rate is low, the forward and reverse maximum speed settings may need
to be reprogrammed.
To assist the person in this task, include a graph in the scooter user handbook showing the relationship between the maximum
forward/reverse speed settings and the forward/reverse braking rate which is required to ensure the correct stopping distance.
It may be possible to program settings which compromise the stability of the scooter. Perform suitable tests to establish which
programming restrictions are needed to prevent instability. State any programming restrictions in the scooter user handbook.
State in the scooter user handbook that it is the responsibility of the person programming the controller to make sure that the
settings are safe and to note any programming changes that they make.
