8.2 Mounting the S-Drive + S-cover system
Once the controller is securely mounted to the scooter the S-cover can be applied. To mount the S-cover use the following
procedure:
 Position the rubber gasket.
 Push the connector cables into the rubber cable seal.
 Connect the cables to the S-Drive.
 Position the S-cover over the gasket and seal.
 Place the four screws into position and secure.

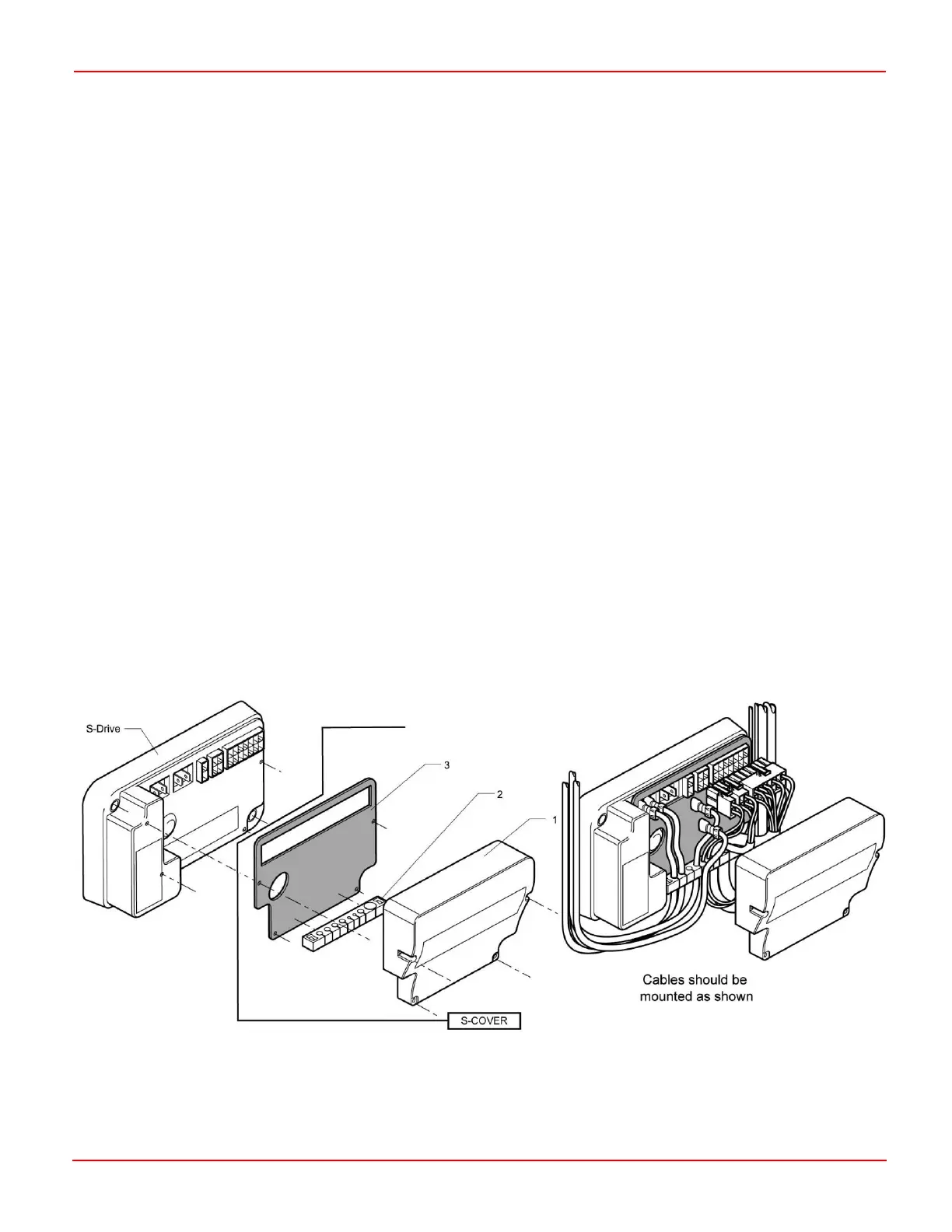

The S45A, S70A and S90A Kit comprises of a rubber gasket (3), a rubber cable seal (2), a molded metalc cover (1) and 4 screws.
These items available in kit format from PG Drives Technology.
S45A and S70A S-cover kit number is: D50282
S90A S-cover kit number is: D51424
The S120A & S140A Kit comprises of a rubber cable seal / gasket (1), a molded metal cover (2) and 3 screws. These items a
available in kit format from PG Drives Technology.
S120A and S140A S-cover kit number is: D51058
The S200 Kit comprises of a rubber cable seal / gasket (1), a molded metal cover (2) and 2 screws. These items a available in kit
format from PG Drives Technology.
S200A cover kit number is: D51160
