PG Drives Technology S45A - Tiller Module Connections; Surface Variant Connection Diagram

PG DRIVES TECHNOLOGY S-DRIVE – TILLER MODULE
SK76745/10
77
PG Drives Technology Tru-Charge Display Cable.
PGDT Part number: SA76199
Only use the PG Drives Technology TruCharge Display Cable number SA76199 supplied with kit
D50826.
Hand tools for crimping and extraction are available from Molex. The references are as below.
Molex ‘Mini-Fit-Jr.’ Crimp tool: 69008-0724
Molex ‘Mini-Fit-Jr.’ Extraction tool: 11-03-0044
Only use the exact tools specified.
4.2.2 Inset Variant
The Tiller Module is fitted with a 3 way AMP CT series connector, part number 175487-3. The mating crimps and connector
housing have Amp part numbers 179227-1 and 179228-3 respectively. Only these parts should be used.
There is also a solder/ring tag point for an Electro-Static Discharge (ESD) drain path wire.
5 Connections

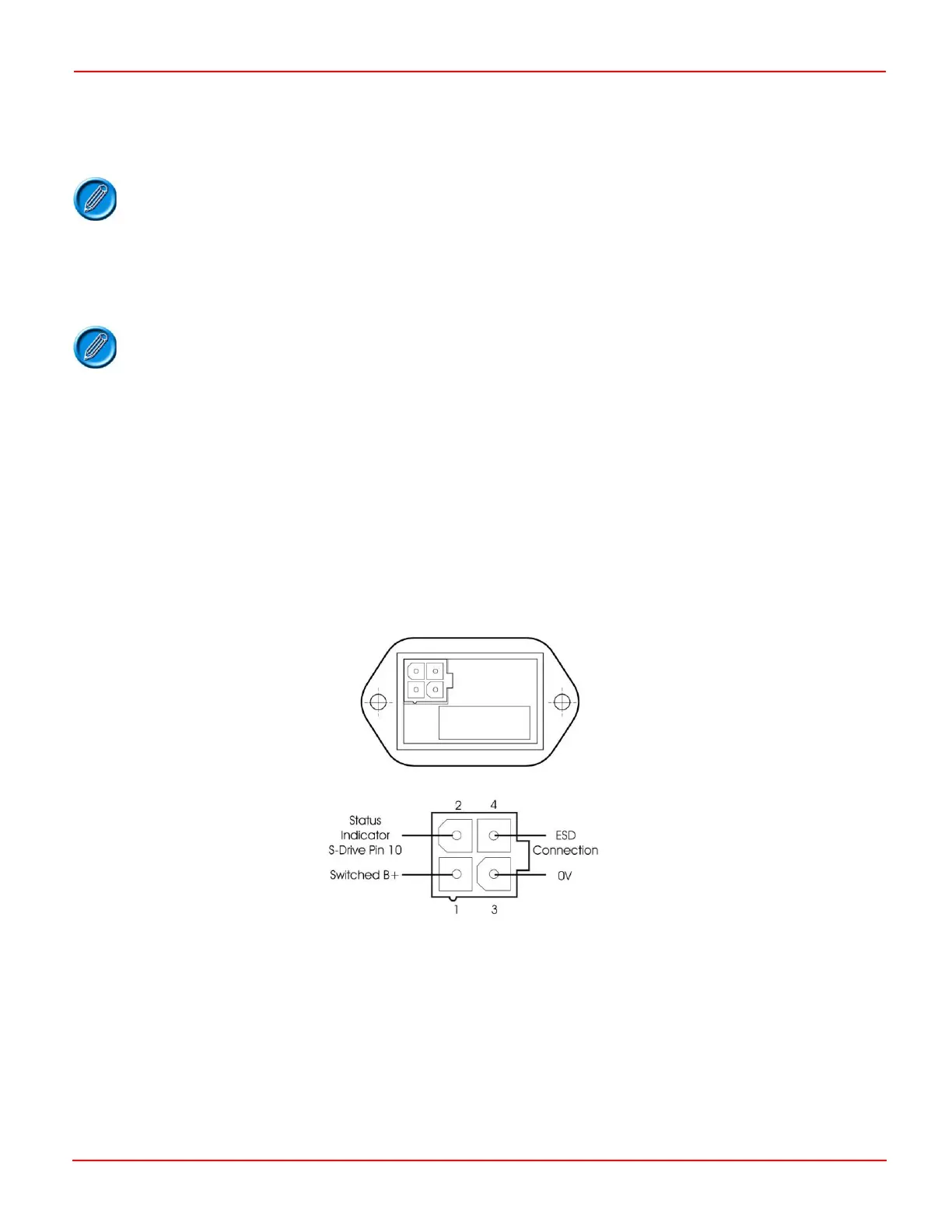

5.0.1 Surface Variant
