Phanteks Eclipse P600s User Manual

9

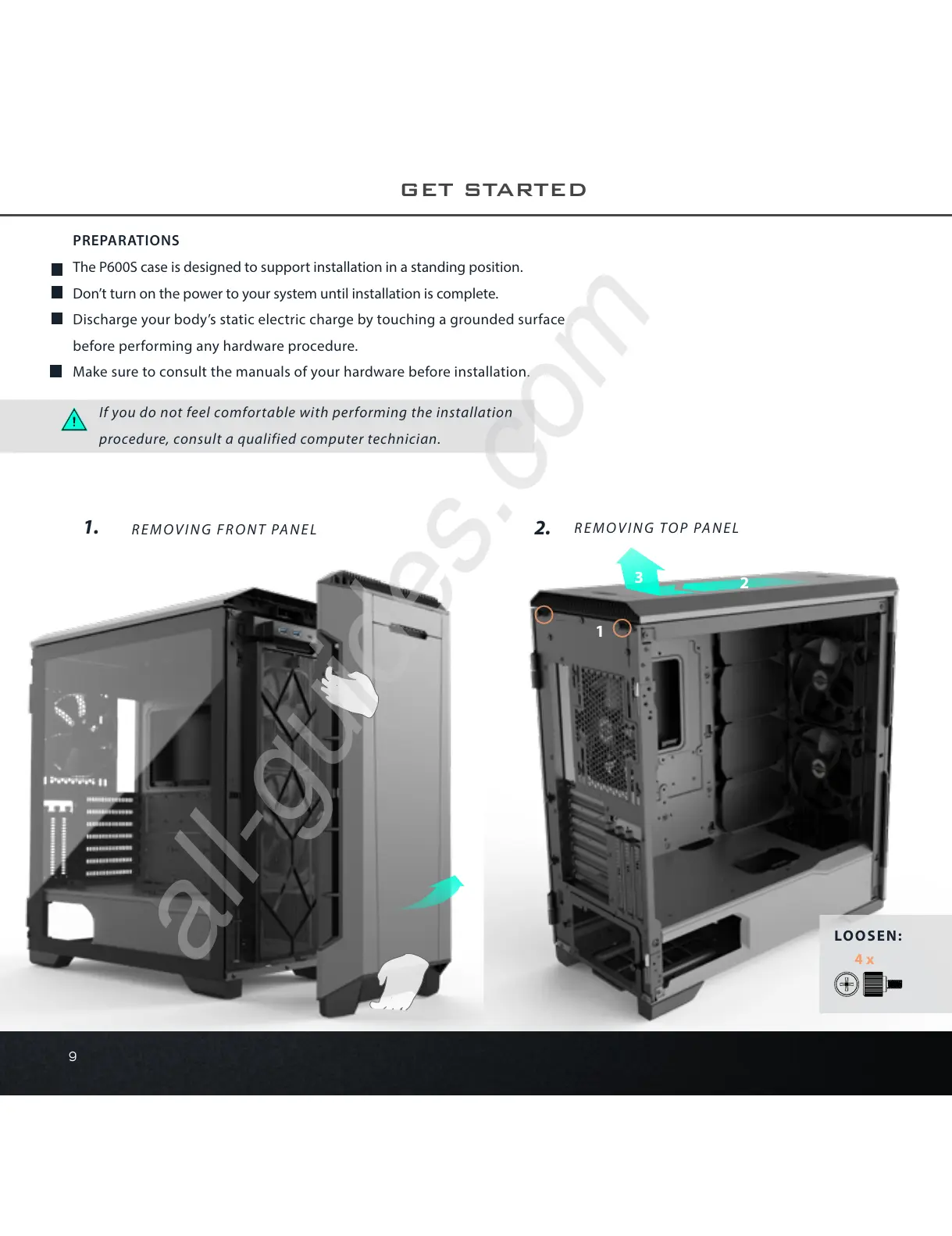

GET STARTED
PREPARATIONS
The P600S case is designed to support installation in a standing position.
Don’t turn on the power to your system until installation is complete.
Discharge your body’s static electric charge by touching a grounded surface
before performing any hardware procedure.
Make sure to consult the manuals of your hardware before installation.
If you do not feel comfortable with performing the installation
procedure, consult a qualified computer technician.
REMOVING TOP PANEL
4x
REMOVING FRONT PANEL
LOOSEN:
2.
1.
2
3
1
All manuals and user guides at all-guides.com
all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
