Phanteks Eclipse P600s User Manual

26
3.5” STACKABLE HDD BRACKETS PH-HDDKT_03
CABLE EXTENSION SET PH-CBCMBO
- Available in multiple colors
- Includes clear cable combs
- Also available as separate cables
Included cables:
- Motherboard 24-pin
- CPU 4+4-pin
- 2x GPU 6+2-pin
HIGH STATIC PRESSURE MP FAN PH-F120MP / PH-F140MP
For 3.5” or 2.5” Drive
Upgrade up to 6x additional 3,5” HDDs with the
optional HDD brackets.
Contains 2x Stackable HDD Brackets.
Page 15
More fans can be installed in the P600S and
connected to the Universal Fan Hub.
Page 12
Y-SPLITTER CABLES PH-CB-Y4P / PH-CB-Y3P
4-pin / 3-pin Fan splitters
Using splitter-cables you can install more
than 8 fans to the Universal Fan Hub.
Page 13

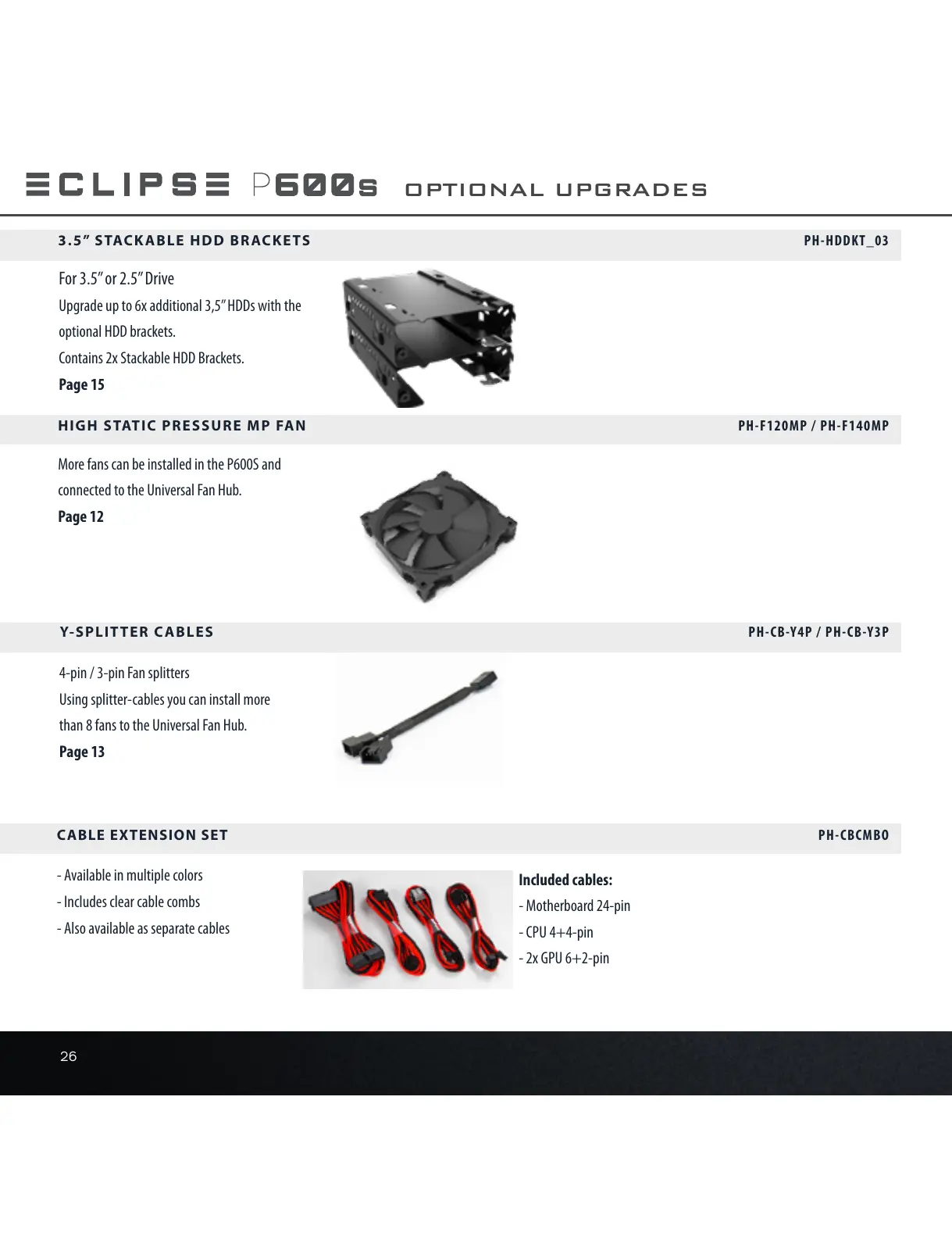

OPTIONAL UPGRADES
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
