Phanteks Eclipse P600s User Manual

21
Hold the GPU in the correct position when
tightening the thumbscrews.
3
2
4

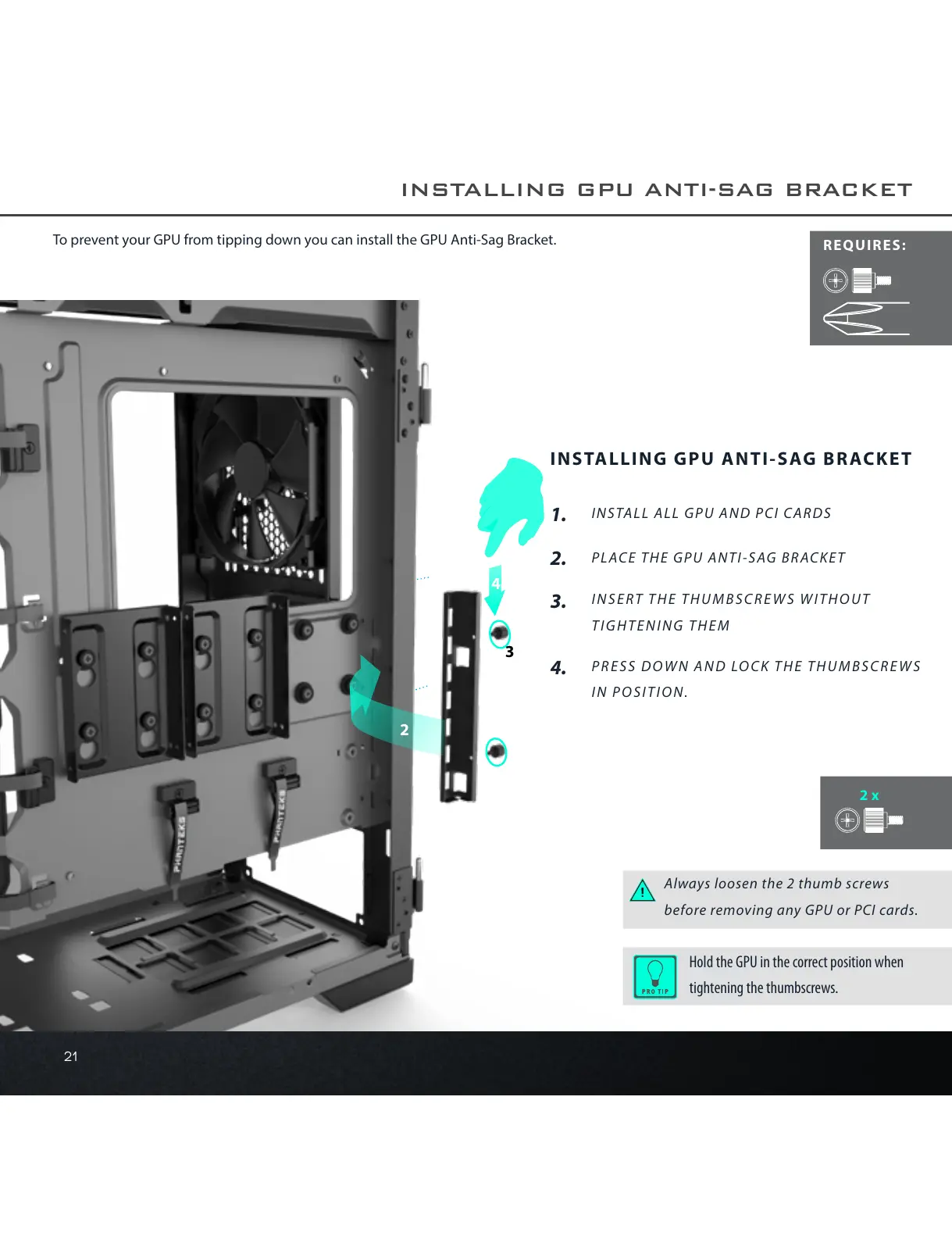

INSTALLING GPU ANTI-SAG BRACKET
1.
2.
3.
4.
INSTALL ALL GPU AND PCI CARDS
PLACE THE GPU ANTI-SAG BRACKET
INSERT THE THUMBSCREWS WITHOUT
TIGHTENING THEM
PRESS DOWN AND LOCK THE THUMBSCREWS
IN POSITION.
INSTALLING GPU ANTI-SAG BRACKET
Always loosen the 2 thumb screws
before removing any GPU or PCI cards.
2x
REQUIRES:
To prevent your GPU from tipping down you can install the GPU Anti-Sag Bracket.
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
