Phanteks Eclipse P600s User Manual

11

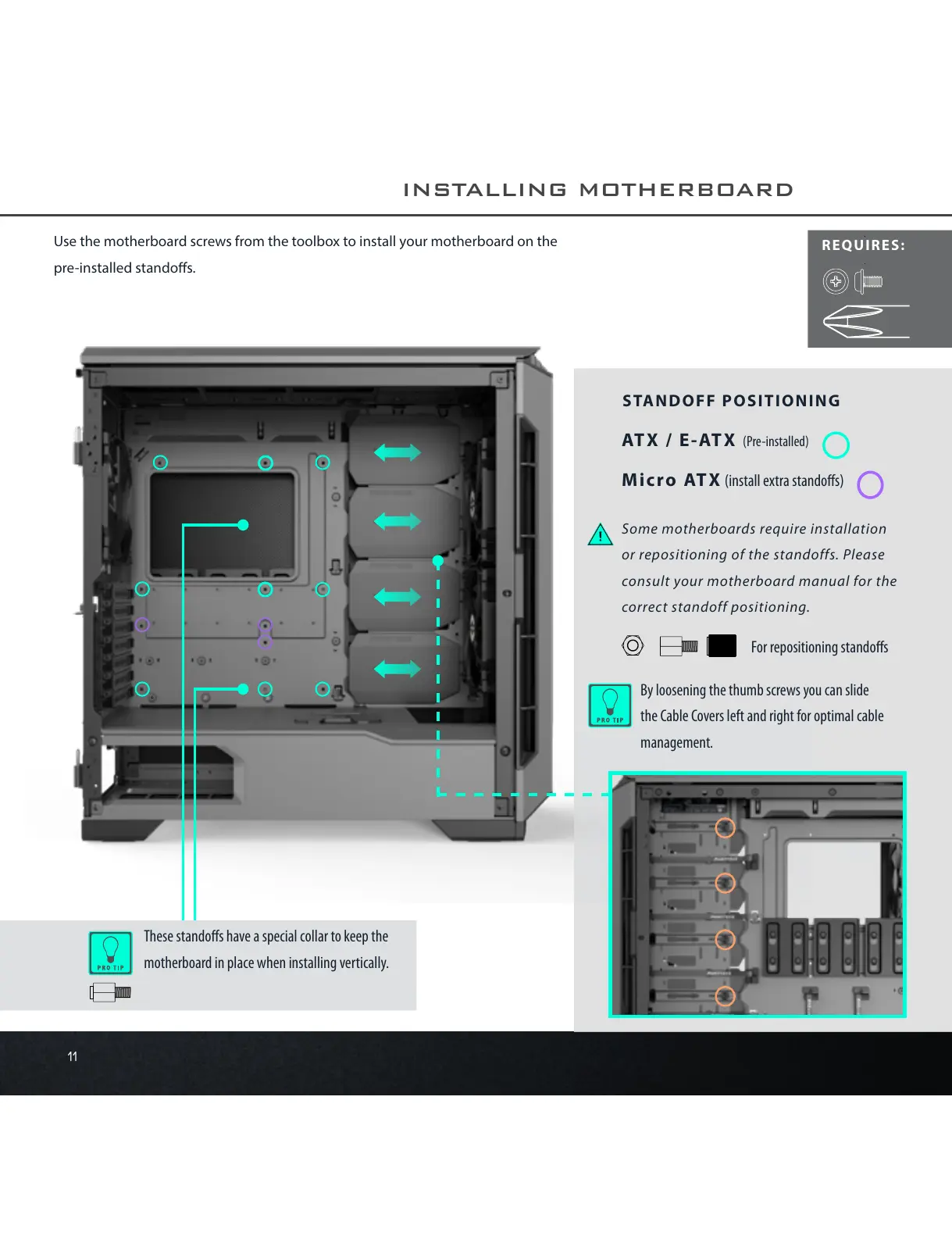

INSTALLING MOTHERBOARD
Some motherboards require installation
or repositioning of the standoffs. Please
consult your motherboard manual for the
correct standoff positioning.
STANDOFF POSITIONING
Micro ATX (install extra standos)
ATX / E-ATX (Pre-installed)
REQUIRES:
For repositioning standos
By loosening the thumb screws you can slide
the Cable Covers left and right for optimal cable
management.
These standos have a special collar to keep the
motherboard in place when installing vertically.
Use the motherboard screws from the toolbox to install your motherboard on the
pre-installed standos.
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
