Phanteks Eclipse P600s User Manual

27

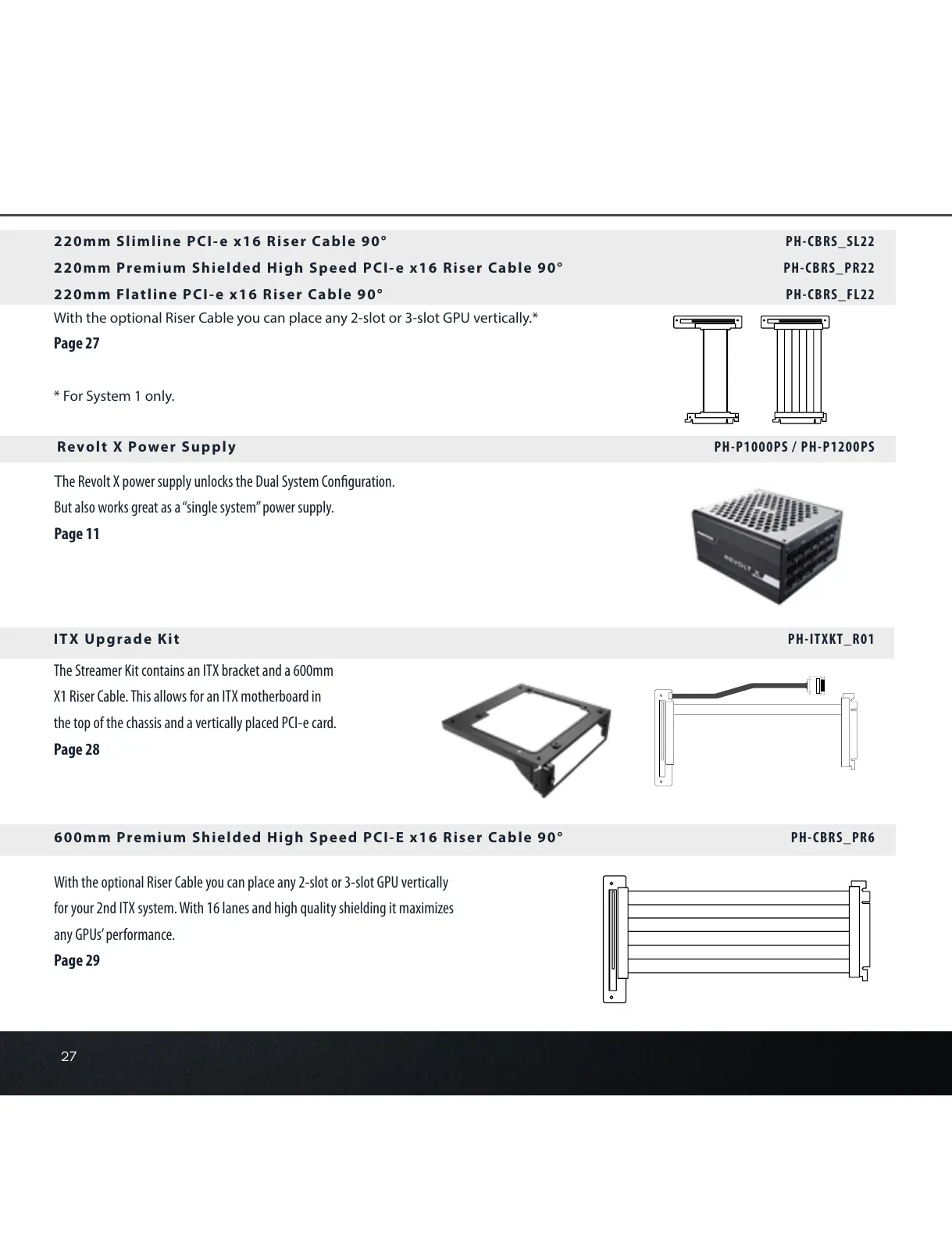

220mm Slimline PCI-e x16 Riser Cable 90° PH-CBRS_SL22
220mm Premium Shielded High Speed PCI-e x16 Riser Cable 90° PH-CBRS_PR22
220mm Flatline PCI-e x16 Riser Cable 90° PH-CBRS_FL22
600mm Premium Shielded High Speed PCI-E x16 Riser Cable 90° PH-CBRS_PR6
ITX Upgrade Kit PH-ITXKT_R01
With the optional Riser Cable you can place any 2-slot or 3-slot GPU vertically.*
Page 27
* For System 1 only.
With the optional Riser Cable you can place any 2-slot or 3-slot GPU vertically
for your 2nd ITX system. With 16 lanes and high quality shielding it maximizes
any GPUs’ performance.
Page 29
The Streamer Kit contains an ITX bracket and a 600mm
X1 Riser Cable. This allows for an ITX motherboard in
the top of the chassis and a vertically placed PCI-e card.
Page 28
Revolt X Power Supply PH-P1000PS / PH-P1200PS
The Revolt X power supply unlocks the Dual System Conguration.
But also works great as a “single system” power supply.
Page 11
All manuals and user guides at all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
