Phanteks Eclipse P600s User Manual

19
FRONT
TOP
A
A
B
C
B
C

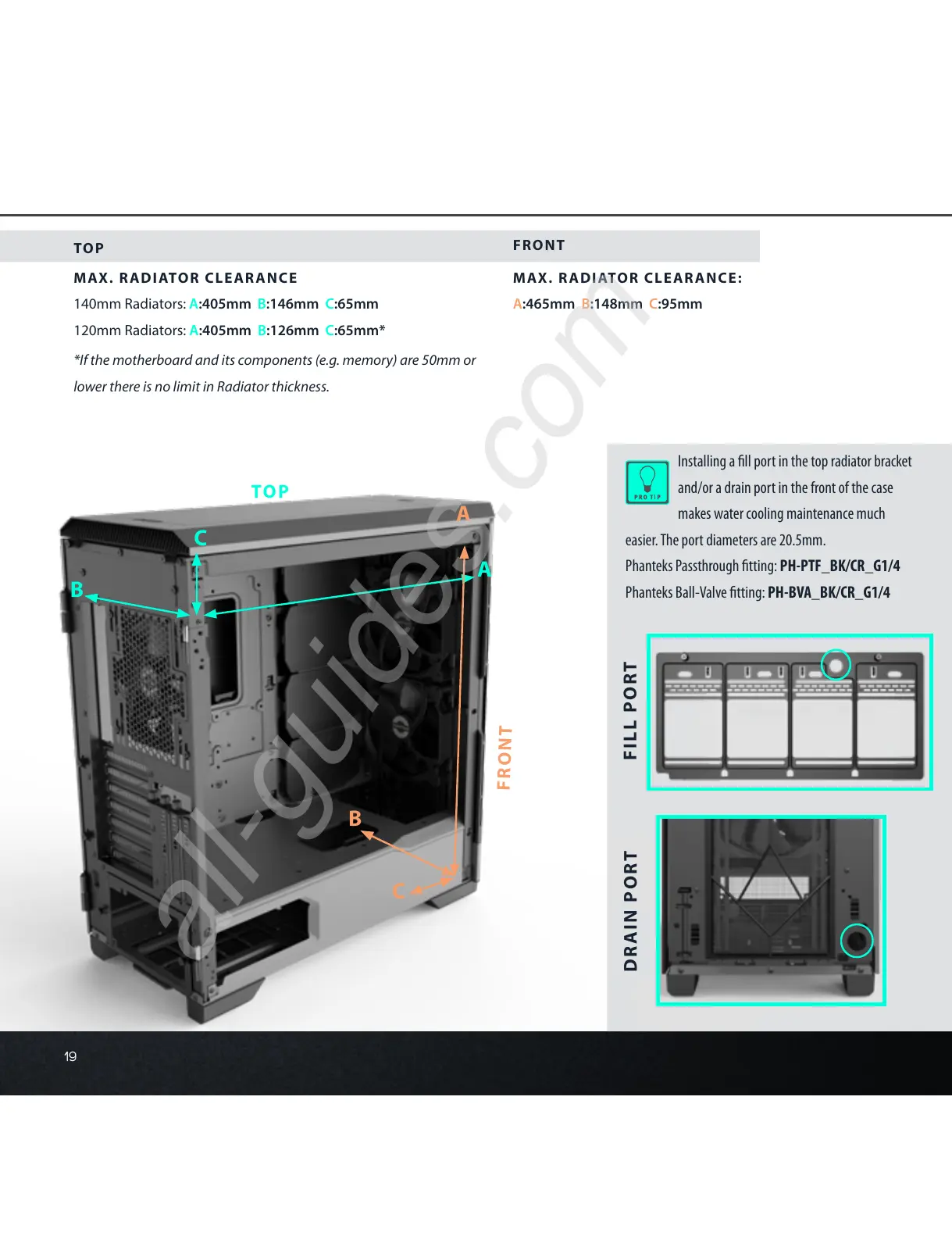

MAX. RADIATOR CLEARANCE
140mm Radiators: A:405mm B:146mm C:65mm
120mm Radiators: A:405mm B:126mm C:65mm*
*If the motherboard and its components (e.g. memory) are 50mm or
lower there is no limit in Radiator thickness.
TOP
FRONT
MAX. RADIATOR CLEARANCE:
A:465mm B:148mm C:95mm
Installing a ll port in the top radiator bracket
and/or a drain port in the front of the case
makes water cooling maintenance much
easier. The port diameters are 20.5mm.
Phanteks Passthrough tting: PH-PTF_BK/CR_G1/4
Phanteks Ball-Valve tting: PH-BVA_BK/CR_G1/4
DRAIN PORT
FILL PORT
All manuals and user guides at all-guides.com
all-guides.com

Phanteks Eclipse P600s Specifications

General

Form Factor	Mid Tower
Dimensions	240 mm x 520 mm x 510 mm (W x H x D)
Material	Steel, Tempered Glass, Plastic
Radiator Support	Front: Up to 360mm, Top: Up to 360mm, Rear: Up to 140mm
Maximum GPU Length	435 mm
Maximum CPU Cooler Height	190 mm
Dust Filters	Front, Top, Bottom
Motherboard Support	ATX, Micro-ATX, Mini-ITX
Expansion Slots	7
Front I/O Ports	1x USB 3.1 Gen 2 Type C, 2x USB 3.0, Audio In/Out, Power Button, Reset Button
Cooling Support	Front: 3 x 120mm or 2 x 140mm, Top: 3 x 120mm or 2 x 140mm, Rear: 1 x 120mm or 140mm
Pre-installed Fans	Front: 2x 140mm, Rear: 1x 140mm
Weight	13.5 kg
