Philips AG1000 - Start-Up

See also p35..The speeds 78 and 33 1/3 are fixed by the cams (50). For the speed 45 this is effected by
the leaf spring (51). The positions 33 1/3 and 78 revolutions per minute are pressed against the relevant
cams by the horseshoe spring (54). The turntable and the hearing axis are connected to each other.
When the turntable turns, it also turns on this main axis. These are the only ones turning during the
playing of a record
parts that are in motion (apart from the movements of the pick-up arm). The teeth of the main shaft
[main shaft of the platen ]rotate along the toothless portion of the command dial/control disc (124).
The motor by turning the platform/platen (65) by the intermediate wheel (43), this
intermediate wheel can be moved by the speed knob (A Fig. 3) along the axis of the
motor. 33-1/3 are fixed by the cams (50) The positions 33 1/3 and 78 are obtained by
the horseshoe spring (54) pressing the lever against the stop The intermediate
position (45 revol / min) is blocked the spring plate (51) The plateau and main axis
are united.When the plate rotates, this main axis also rotates.When playing a disc
these are the only pieces that are in motion (except for the movements of the arm The
teeth of the main axis rotate along the ie not toothed from the control disk (124)
P6b...

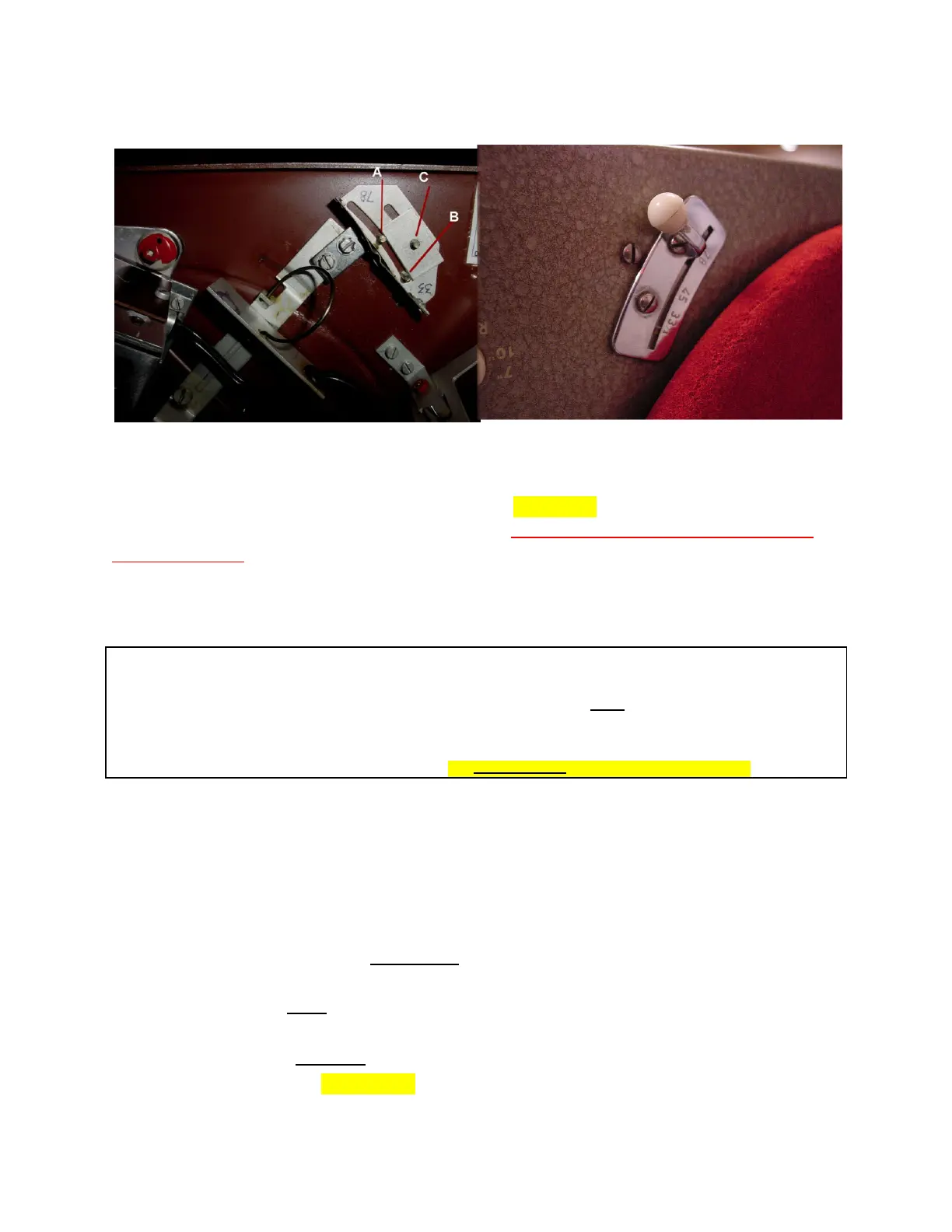

1. START-UP
There are 2 ways to close the start switch;
First [SEE ALSO 8.] by lifting the P U Arm hand-operated manually) and
secondly by using the start lever.. When the P.U. arm raises during automatic play, the switch
remains closed, however, the spring system rises in its entirety to enable subsequent switch-off by the
P.U. arm. REJECT....START...STOP >FWD
16
