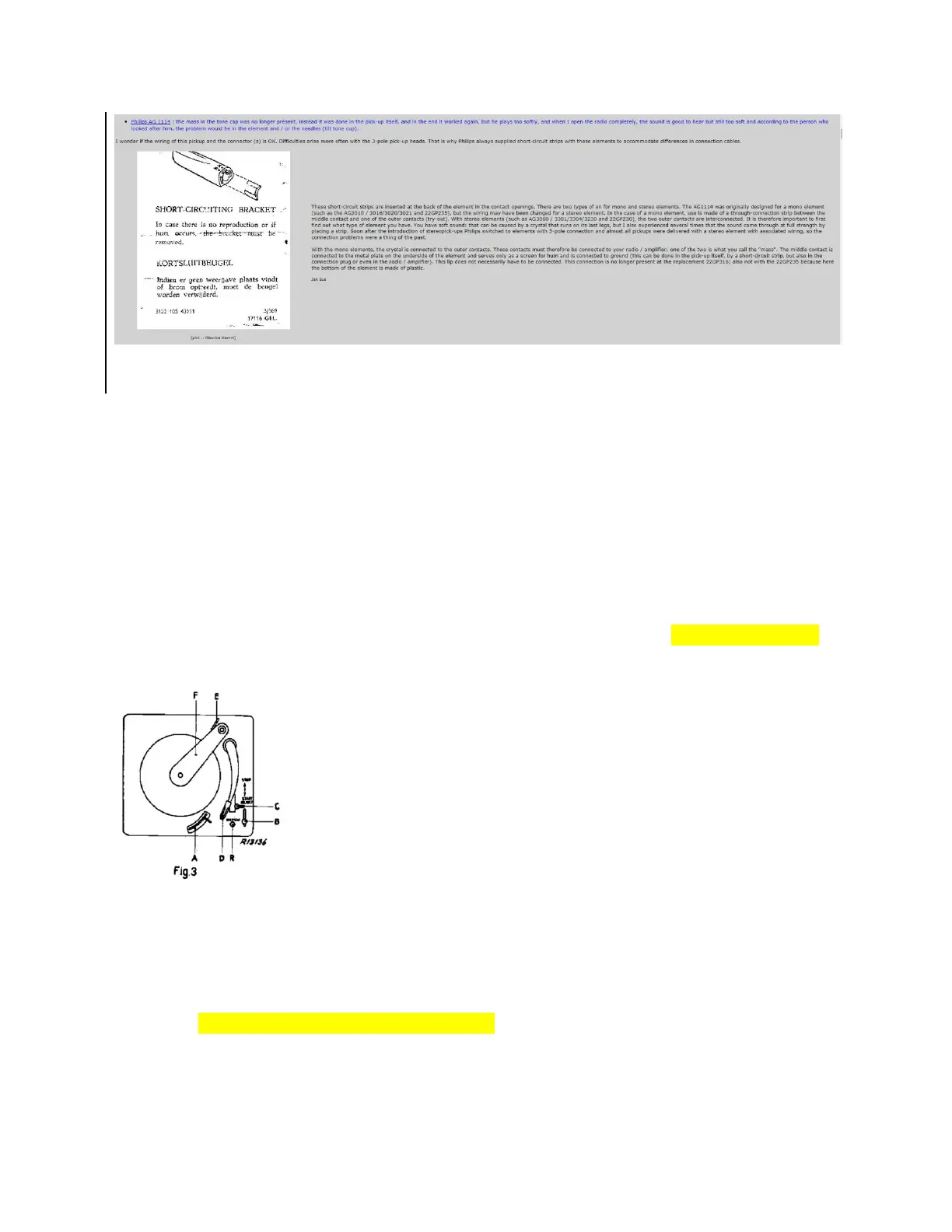

V. General properties and operation [(see fig. 3)
GENERAL CHARACTERISTICS AND CONTROL
After the center pin is placed in the center hole of the turn table (65) (shoulder in the direction of the
base of the plate press (62) -) and the pick-up unit is pushed onto the P.U. arm, the device is ready for
use.
Since this changer is suitable for playing normal, as well as micro-groove discs and is more over suitable
for different speeds and disc diameters, the positions of the operating elements will first be explained
with the aid of FIG. 3
Speed lever A:
The speed of the turntable is adjusted by setting the speed lever in the relevant position, At 78, 45 and
33 1/3 rpm. Move the trade while the motor is running. This is to prevent the rubber surface of the
intermediate wheel (43) from undergoing a DEFORMATION..
Diameter BUTTON B:
11
