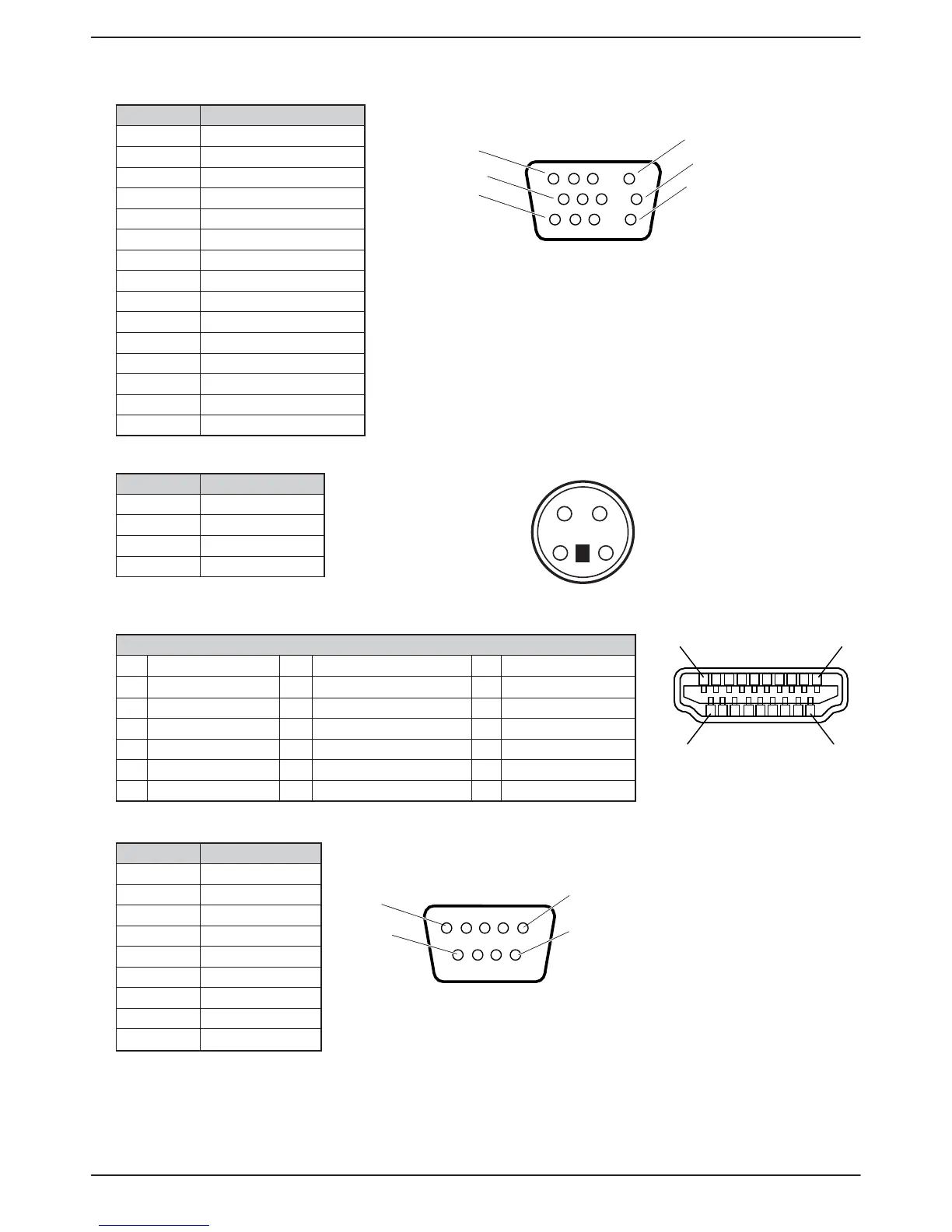

Pin Assignment
Analog Video Signal Input (Mini D-SUB 15P): VGA1.
Pin No Name
1 Video Signal Red
2 Video Signal Green
3 Video Signal Blue
4 GND
5 DDC-GND
6 Red - GND
7 Green - GND
8 Blue -GND
9+5V (DDC)
10 SYNC-GND
11 GND
12 DDC-SDA
13 H-SYNC
14 V-SYNC
15 DDC-SCL
S-VIDEO input (MINI DIN 4P): S-VIDEO2.
Pin No Name
1 GND
2 GND
3 Y (Luminance)
4C (Chroma)
HDMI3.
Pin - Assignment of HDMI connector:
1 TMDS Data2+ 8 TMDS Data0 Shield 15 SCL
2 TMDS Data2 Shield 9 TMDS Data0- 16 SDA
3 TMDS Data2- 10 TMDS Clock+ 17 DDC/CEC Ground
4 TMDS Data1+ 11 TMDS Clock Shield 18 +5V Power
5 TMDS Data1 Shield 12 TMDS Clock 19 Hot Plug Detect
6 TMDS Data1- 13 CEC
7 TMDS Data0+ 14 Reserved (N.C. on device)
RS-232C input/output 4.
Pin No Name
1NC
2RXD
3TXD
4NC
5 GND
6NC
7RTS
8 CTS
9NC
5
10
15
1
6
11
12
34
1
218
19
HDMI
5
1
6
9
Mini D-SUB 15P
MINI DIN 4P
Mini D-SUB 9P
