Philips CD360 - Wallmount the Base Station; Install the Handset

13
5 Align the mounting holes on the back of the
base station with the screws on the wall.
6 Slide the base station down into place.
Install the handset
Caution
Risk of explosion! Keep batteries away from •
heat, sunshine or fire. Never discard batteries
in fire.
Use only the supplied batteries.
•
Risk of decreased battery life! Never mix •
different brands or types of batteries.
4.55
19.10 81.15
4.55

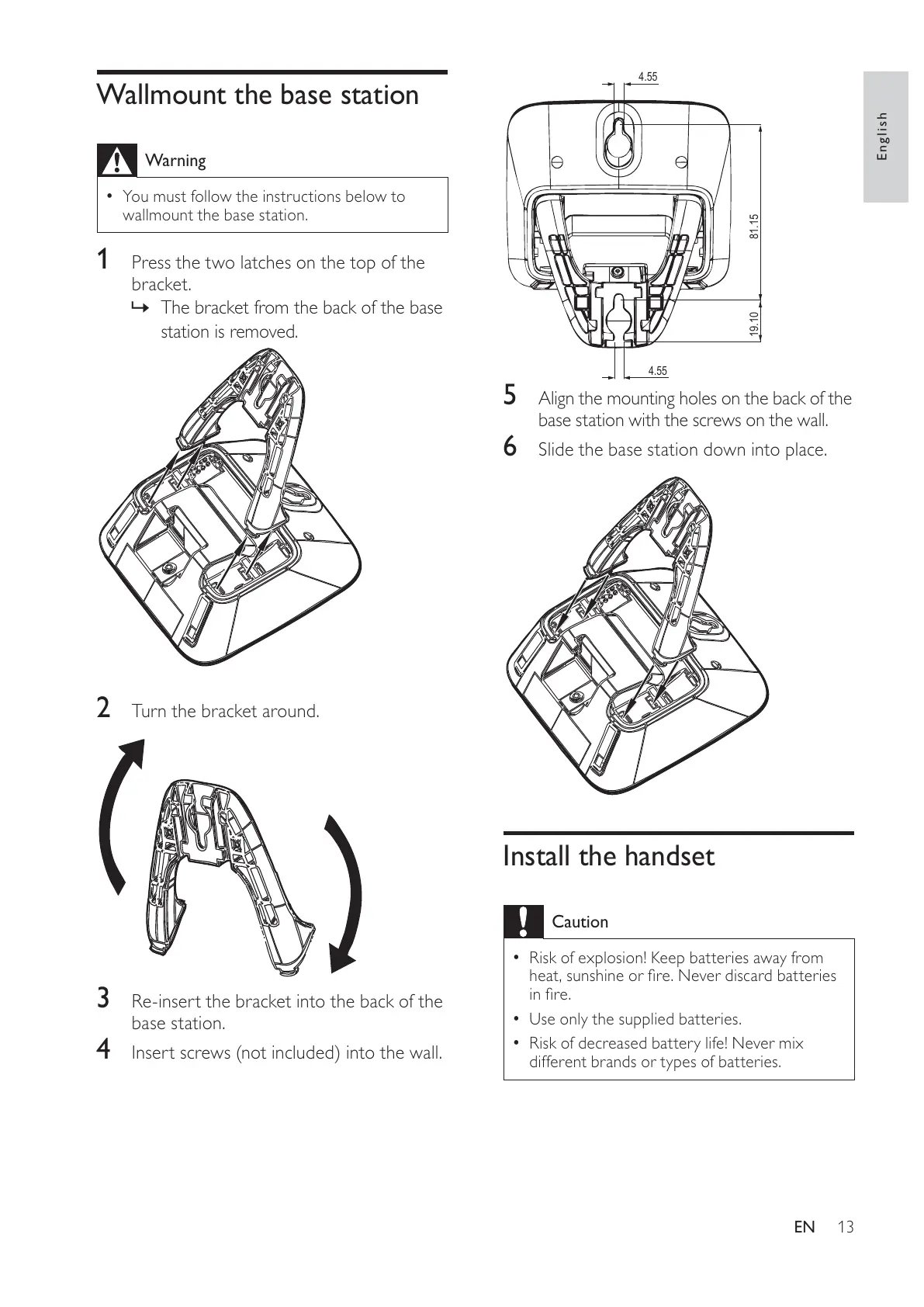

Wallmount the base station
Warning
You must follow the instructions below to •
wallmount the base station.
1 Press the two latches on the top of the
bracket.
The bracket from the back of the base »
station is removed.
2 Turn the bracket around.
3 Re-insert the bracket into the back of the
base station.
4 Insert screws (not included) into the wall.
English
EN
