Philips DVDR600VR/37 - Main 3;7 Schematic Diagram <VCR Section

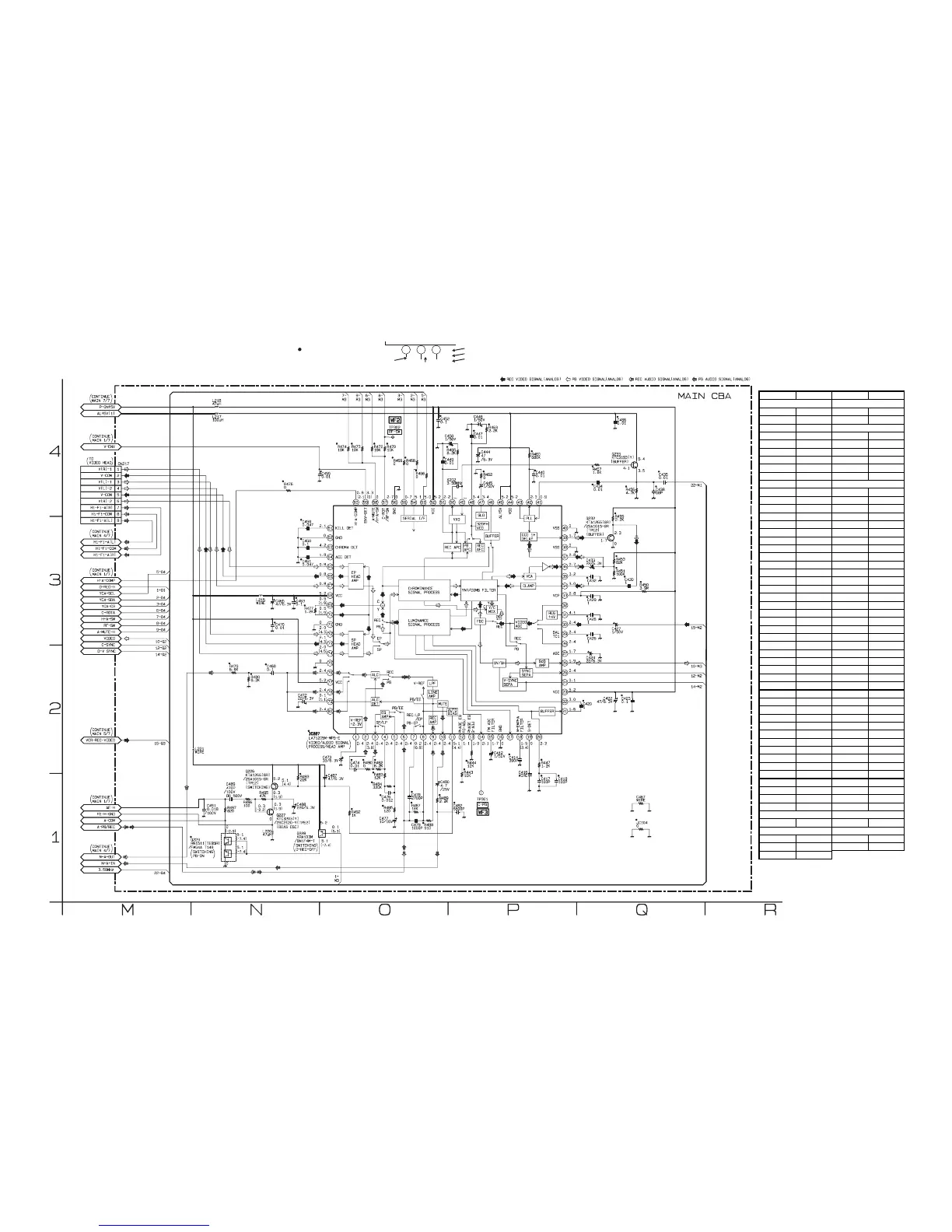

Main 3/7 Schematic Diagram < VCR Section >
1-12-7
1-12-8
E9480SCM3
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
MAIN 3/7 Schematic Diagram Parts Location Guide
Ref No. Position Ref No. Position
C412 P-2 L220 N-1
C414 P-2 L221 N-2
C416 P-1
C417 P-1 Q226 N-1
C418 P-1 Q227 N-1
C420 Q-2 Q228 N-1
C422 Q-2 Q229 N-1
C423 Q-2 Q232 Q-3
C424 Q-2 Q233 Q-4
C425 Q-3
C427 Q-3 JC104 Q-1
C428 Q-3 R443 P-1
C429 Q-3 R444 P-2
C430 Q-3 R447 P-2
C432 Q-3 R450 Q-3
C433 Q-3 R451 Q-3
C434 Q-4 R453 Q-3
C435 Q-4 R455 Q-3
C438 Q-4 R456 Q-4
C440 P-4 R457 Q-4
C444 P-4 R460 P-4
C445 P-4 R462 P-4
C447 P-4 R463 P-4
C448 P-4 R465 P-4
C449 O-4 R466 O-4
C450 P-4 R468 O-4
C452 O-4 R469 O-4
C455 O-4 R470 O-4
C459 N-3 R472 O-4
C460 N-3 R473 O-4
C461 N-3 R474 O-4
C463 N-3 R476 N-4
C465 N-3 R477 N-3
C466 Q-3 R479 N-2
C467 Q-1 R480 N-2
C468 N-2 R482 O-2
C470 N-3 R483 O-1
C472 N-2 R484 O-1
C473 O-2 R485 O-1
C474 O-2 R487 O-1
C476 O-1 R488 O-1
C477 O-1 R489 O-1
C478 O-1 R490 O-2
C479 O-1 R492 O-1
C480 O-1 R493 N-1
C482 P-1 R495 N-1
C487
O-1
R496 N-1
C488
N-1
R497 N-1
C489 N-1 R665 K-4
C491 N-1 R666 K-4
IC227 O-2 X202 P-4
L215 N-3 TP301 P-1
L217 N-4 TP302 O-4
L218 N-4
TEST POINT
ICS
TRANSISTORS
RESISTORS
COILS
CRYSTAL OSCILLATOR
COILSCAPACITORS
