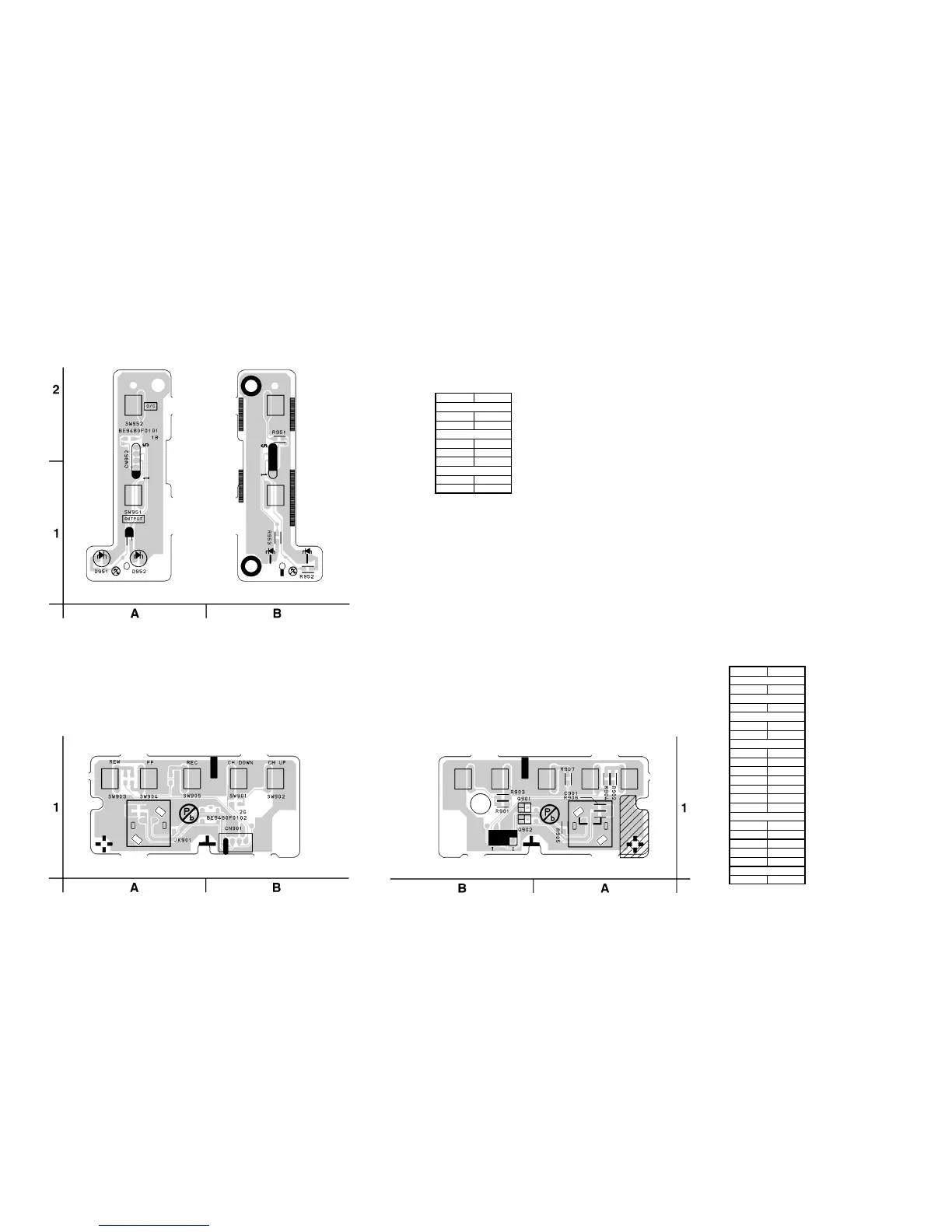

Philips DVDR600VR/37 - Function CBA Top;Bottom View <VCR Section; Jack-B CBA Top;Bottom View <VCR Section

Function CBA Top View
< VCR Section >
Jack-B CBA Top View < VCR Section > Jack-B CBA Bottom View < VCR Section >
BE9480F01011B
BE9480F01022G
1-12-27
1-12-28
FUNCTION CBA
PARTS LOCATION GUIDE
Ref No. Position
D951 A-1
D952 A-1
R951 B-2
R952 B-1
R953 B-1
SW951
A-1
SW952 A-2
SWITCHES
RESISTORS
DIODES
JACK-B CBA
PARTS LOCATION GUIDE
Ref No. Position
C901
A-1
CN901
B-1
Q901
B-1
Q902 B-1
R901
B-1
R902
A-1
R903 B-1
R904
A-1
R905 A-1
R906
A-1
R907
A-1
SW901
B-1
SW902 B-1
SW903 A-1
SW904
A-1
SW905 A-1
JK901 A-1
CAPACITOR
SWITCHES
MISCELLANEOUS
CONNECTOR
TRANSISTORS
RESISTORS
Function CBA Bottom View
< VCR Section >
