Philips DVDR600VR/37 - Main 6;7 Schematic Diagram <VCR Section

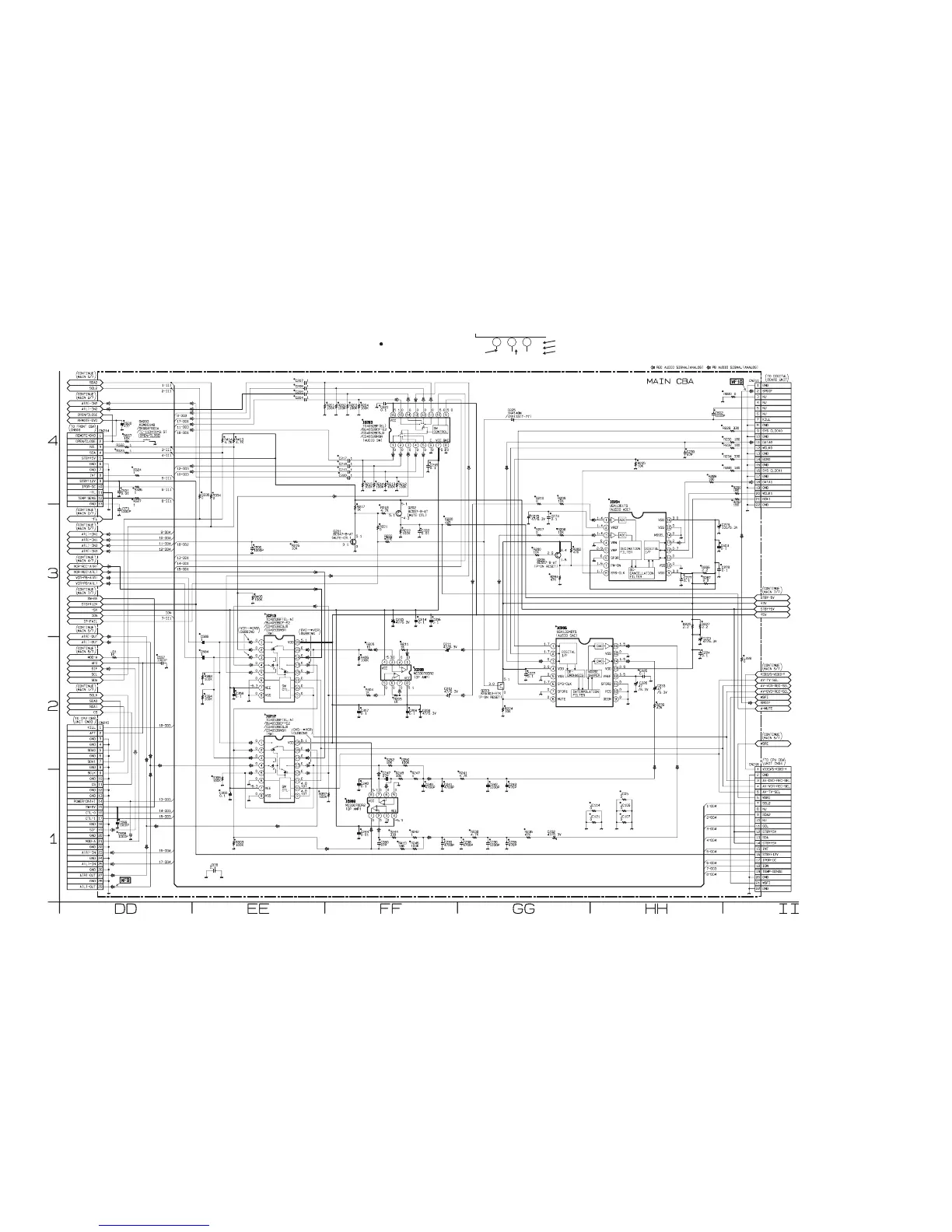

Main 6/7 Schematic Diagram < VCR Section >
1-12-15
1-12-16
E9480SCM6
“ “ = SMD
Voltage indications for PLAY, REC and DVD modes
on the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
< 0 >
~
5.0
THE SAME VOLTAGE FOR
PLAY,REC & DVD MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
DVD MODE
