Philips DVDR600VR/37 - Power Supply CBA Top View <VCR Section

NOTE :
The voltage for parts in hot circuit is measured
using hot GND as a common terminal.
BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.
A V
F
CAUTION
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.
ATTENTION : POUR UNE PROTECTION CONTINUE LES RISQES
D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
BE9480F01022A
1-12-37
1-12-38

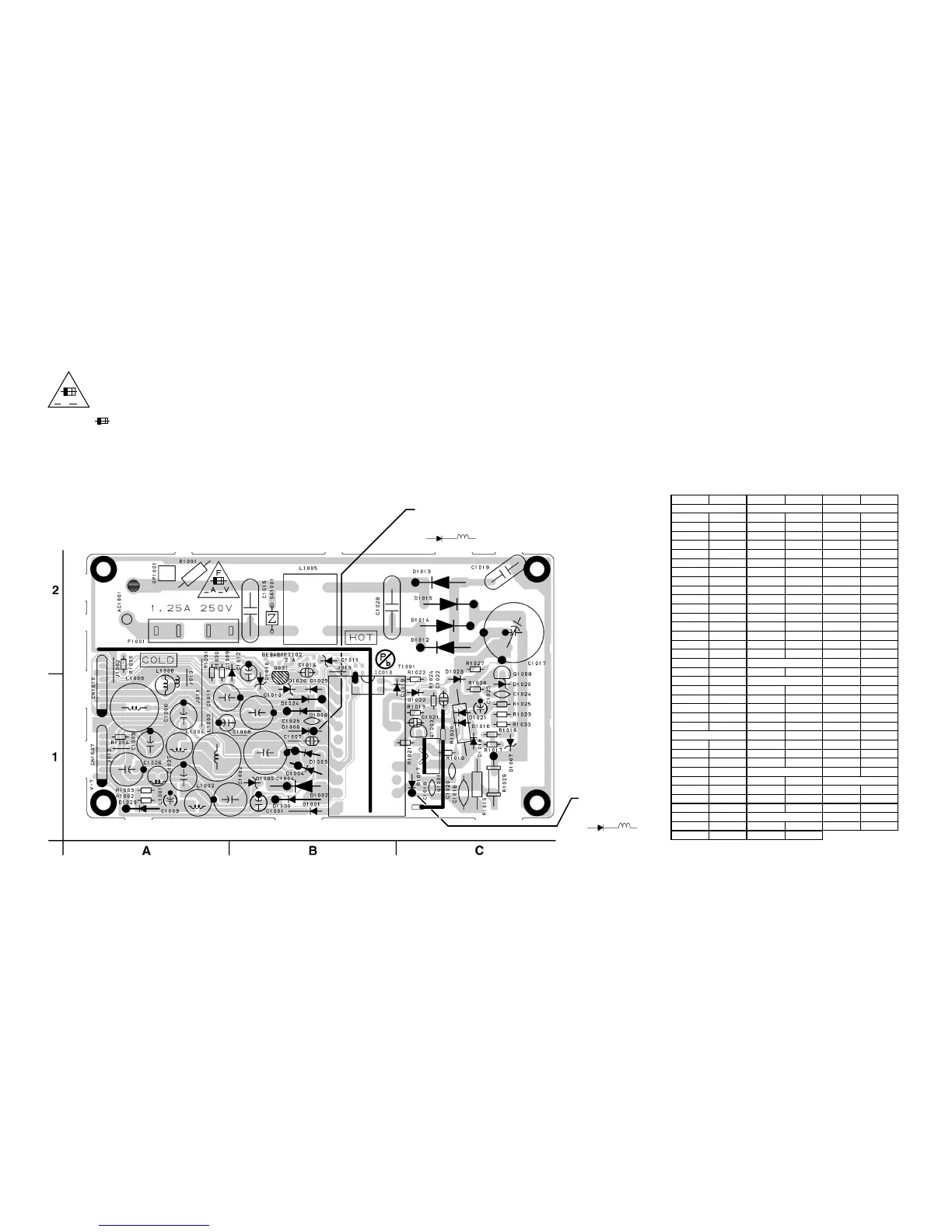

Power Supply CBA Top View < VCR Section >
Note:
L1006 is positioned on the Cathode
side of D1006 as shown below.
D1006 L1006
Note:
L1007 is positioned on the Cathode
side of D1017 as shown below.
D1017 L1007
POWER CBA PARTS LOCATION GUIDE
Ref No. Position Ref No. Position Ref No. Position
C1001 B-1 D1012
C-2
R1004
A-1
C1002 B-1 D1013
C-2
R1005
A-2
C1003
.A-1
D1014
C-2
R1006 B-2
C1004
B-1
D1015
C-2
R1007 B-2
C1005
A-1
D1016
C-1
R1008 B-2
C1006
A-1
D1017
C-1
R1009 B-2
C1008
B-1
D1018
C-1
R1010 B-2
C1010
B-1
D1019
C-1
R1011 B-2
C1011
A-1
D1021 C-1 R1012 B-2
C1012
B-2
D1022 C-1 R1013 B-2
C1013 B-1 D1023 C-1 R1014 A-2
C1014 B-2 D1024 B-41 R1015 C-1
C1015 B-2 D1025 B-1 R1016 C-1
C1016
C-1
D1026 B-1 R1017 C-1
C1017
C-2
D1029 A-1 R1018 C-1
C1018
C-1
D1030 B-1 R1019
C-1
C1019
C-2
R1020 C-1
C1020
C-1
IC010
B-1
R1021
C-1
C1021
C-1
R1022
C-1
C1022
C-1
L1001
A-1
R1023
C-1
C1023
C-1
L1002
A-1
R1024
C-1
C1024 C-1 L1003
A-1
R1025
C-1
C1026
A-1
L1004
A-1
R1026
C-2
C1027
A-1
L1005
B-2
R1027
C-2
L1006
B-1
R1028
C-1
D1001
B-
1
L1007
C-1
R1029
C-1
D1002
B-1
L1008 A-2 R1030
A-2
D1003
B-1
L1009 A-1 R1031
A-2
D1004
B-1
R1033
C-1
D1005
B-1
Q031
B-2
D1006
B-1
Q1001
C-1
AC1001
A-2
D1007
C-1
Q1003
C-1
F1001
A-2
D1008
B-1
Q1008
C-1
GP1001
A-2
D1009
A-2
SA1001
B-2
D1010 B-1 R1002 A-1 T1001 C-2
D1011 B-2 R1003 A-1
RESISTORS
DIODES
CAPACITORS DIODES RESISTORS
IC
COILS
MISCELLANEOUS
TRANSISTORS
