Philips DVDR600VR/37 - Page 98

1-15-3 E9480TI
2) LP/SLP Mode

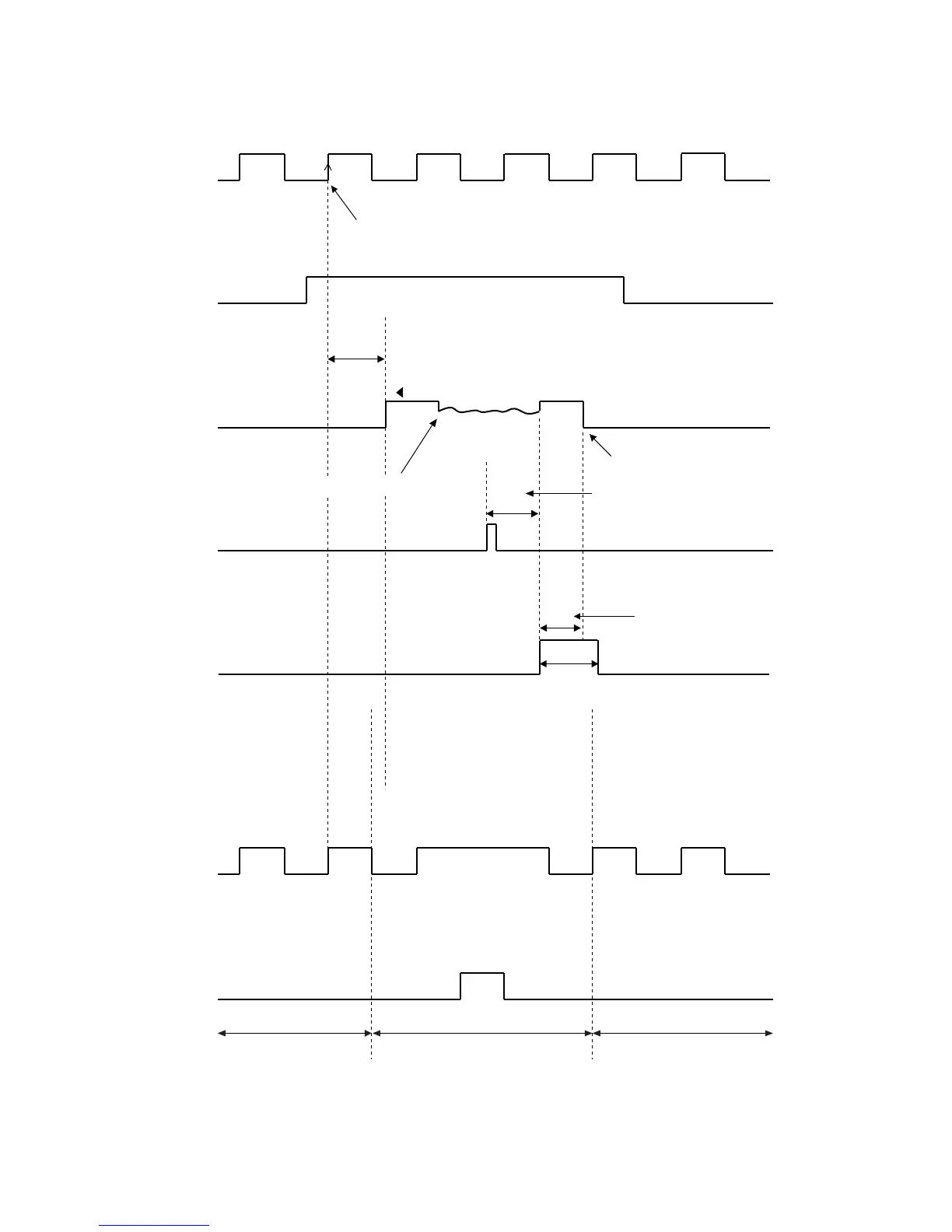

Fig. 2
18 RF-SW
F-AD
(Internal Signal)
C-DRIVE
PB CTL
27 C-F/R
79 H-A-SW
78 C-ROTA
"H"
"Z"
"H"
"L" "L"
STILL STILL
AT
ST
BL
Stop detection (T2)
Acceleration Detection (T1)
Slow Tracking Value
Reversal Limit Value
FRAME ADVANCE
The first rise of RF-SW after a rise in F-AD signal
20ms
