Technical Specifications, Connections and Chassis Overview
GB 2 L01.1E1.
1. Technical Specifications, Connections and Chassis Overview
Note: Described specifications are valid for the whole
product range.
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, L/L’
Sound systems : FM/AM-mono
: FM-stereo (2CS)
:NICAM
: FM radio (10.7
MHz)
A/V connections : PAL BG
: SECAM L/L’
: PAL 60 (playback
only)
: NTSC 3.58
(playback only)
: NTSC 4.43
(playback only)
Channel selections : 100 channels
: UVSH
IF frequency : 38.9 MHz
Aerial input : 75 W, Coax
1.1.2 Miscellaneous
Audio output (RMS) : 2 x 5 W stereo
: 2 x 10 W stereo
Mains voltage : 220 - 240 V
(± 10 %)
Mains frequency : 50 / 60 Hz (± 5 %)
Ambient temperature : + 5 to + 45 deg. C
Maximum humidity : 90 % R.H.
Power consumption : 58 W (21”) to
:100 W (33”)
Standby Power consumption : < 3 W
1.2 Connections

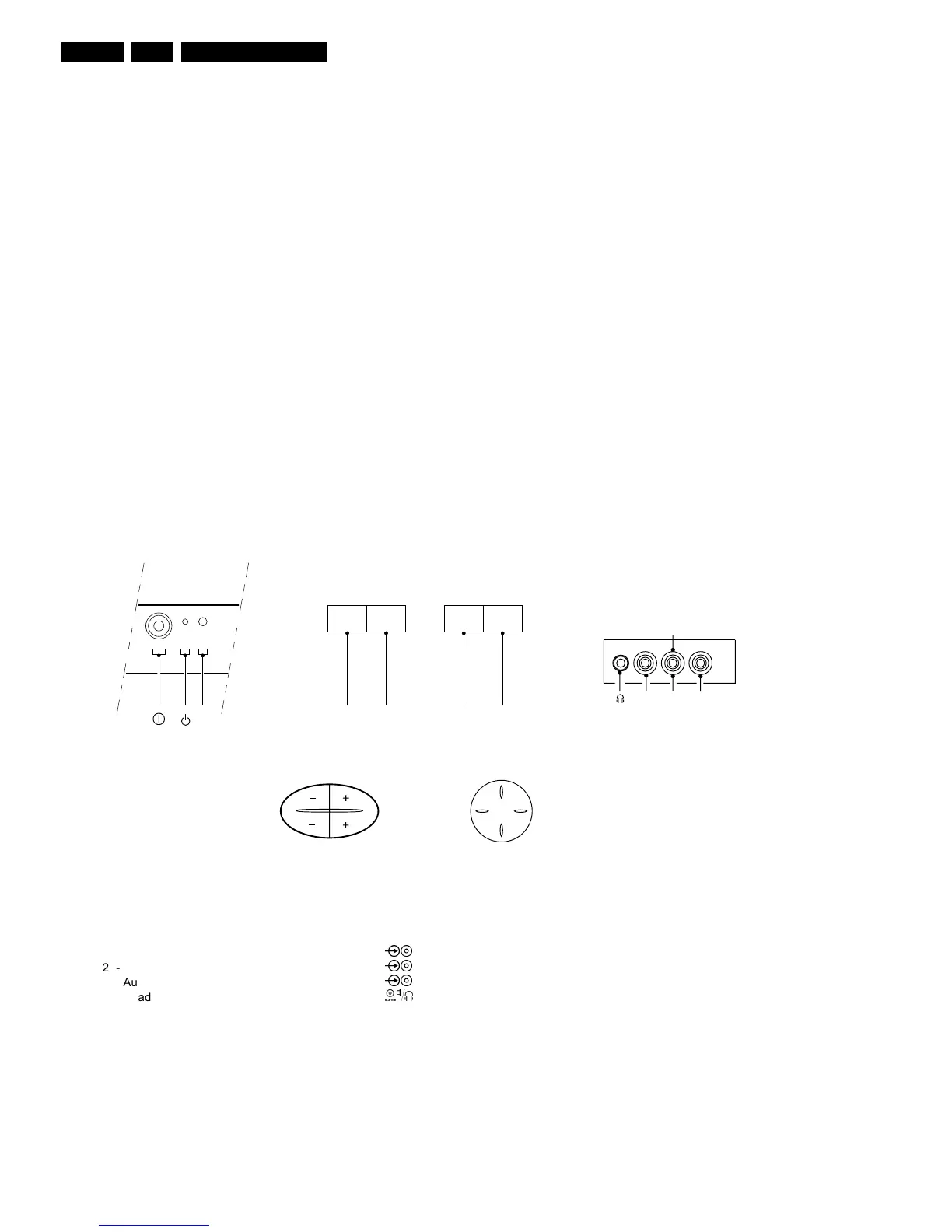

1.2.1 Side (or Front) Connections and Top (or Front) Control
Figure 1-1
Audio / Video In
1 - Video CVBS (1 Vpp / 75 W)

2 - Audio L (0.5 Vrms / 10 kW) 
3 - Audio R (0.5 Vrms / 10 kW) 
4 - Headphone 3.5 mm (8 - 600 W / 4 mW) 
IR
RED
- VOLUME +
- PROGRAM +
V+V-
P-
P+
L
Audio
R
Video
Mono
V- C+C-V+
CL 16532016_020.eps
220501
C+C-V+V-
