1. Technical Specifications
1.1 Specifications
Mains voltage : 150V - 276Vac;
Mains frequency : 50 - 60Hz
Maximum power consumption :
• 14" : 40W +/- 10%
• 20" : 56W +/- 10%
• 21" : 58W +/- 10%
Standby power consumption : 10W +/- 10%
Max. Antenne-input :
Off air : 100dBV
On air : 90dBV
Audio output :
• Stereo : 2 * 3W; 2 * 1W
• Mono : 2 * 2W; 4W; 3W; 2W; 1W
Tuners :
• UV 1316/AI-2 (PAL)
• UV 1316/AIU-2 (PAL)
• UV 1356C/AI (PAL)
1.2 Specification of the terminal sockets
1.2.1 EXT1 CVBS(in/out) + RGB(in) - tuner at output
1 - Audio Out R (0.5VRMS ( 1k
Ω)
k
2 - Audio In R (0.2-2VRMS ( 10k
Ω)
j
3 - Audio Out L (0.5VRMS ( 1k
Ω)
k
4 - Earth screen
v
5 - Earth screen
v
6 - Audio In L (0.2-2VRMS ( 10k
Ω)
j
7 - Blue (0.7Vpp/75)
j
8 - CVBS status (INT = 0-2V, EXT (16:9) = 4.5-7V,
EXT(4:3) = 9.5 -12V)
9 - Earth screen
v
10- - -
11- Green (0.7Vpp/75)
j
12- - -
13- Earth screen
v
14- Earth screen
v
15- Red (0.7Vpp/75)
j
16- FBL (<0.9V RGB mode)
17- Earth screen
v
18- Earth screen
v
19- CVBS
k
20- CVBS (1Vpp/75)
j
21- Earth screen
v
1.2.2 EXT2 CVBS (in/out) + SVHS(in)
Input = EXT2 => output = tuner
Input = tuner/EXT1 =>output = tuner/EXT11
1 - Audio Out R (0.5VRMS ( 1k
Ω)
k
2 - Audio In R (0.2-2VRMS ( 10k
Ω)
j
3 - Audio Out L (0.5VRMS ( 1k
Ω)
k
4 - Earth screen
v
5 - Earth screen
v
6 - Audio In L (0.2-2VRMS ( 10k
Ω)
j
7-
8 - CVBS status (INT = 0-2V, EXT (16:9) = 4.5-7V,
EXT(4:3) = 9.5 -12V)
9 - Earth screen
v
10- - -
11- - -
12- - -
13- Earth screen
v
14- Earth screen
v
15- C (300mVpp/75)
j
16- - -
17- Earth screen
v
18- Earth screen
v
19- CVBS
k
Red
IR
ChannelVolume
++ --

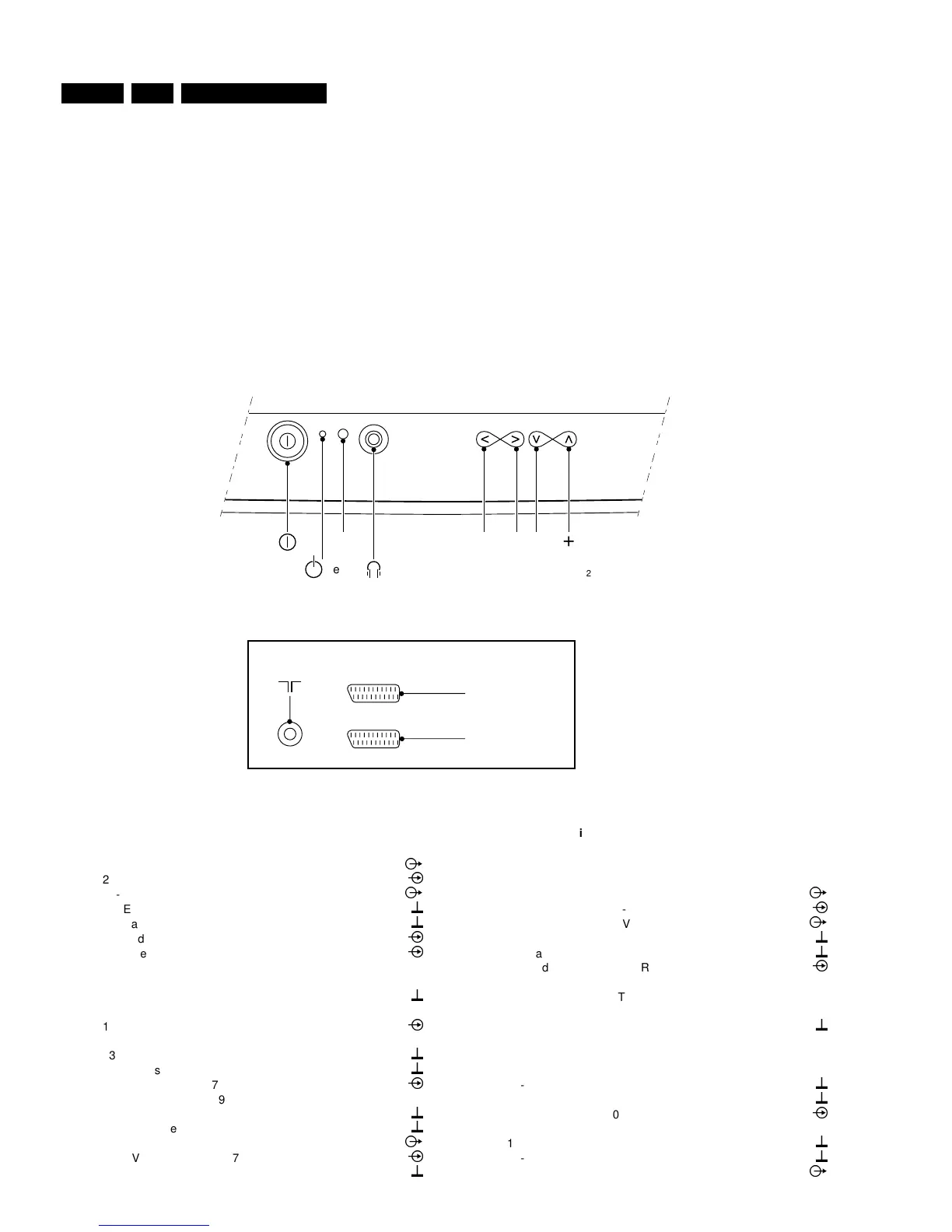

CL 86532104_011.eps
080299
EXT2
EXT1
CL 86532104_012.eps
080299
