Philips LC8.1E - Connection Overview

Technical Specifications, Connections, and Chassis Overview
EN 3LC8.1E LB 1.
1.2 Connection Overview

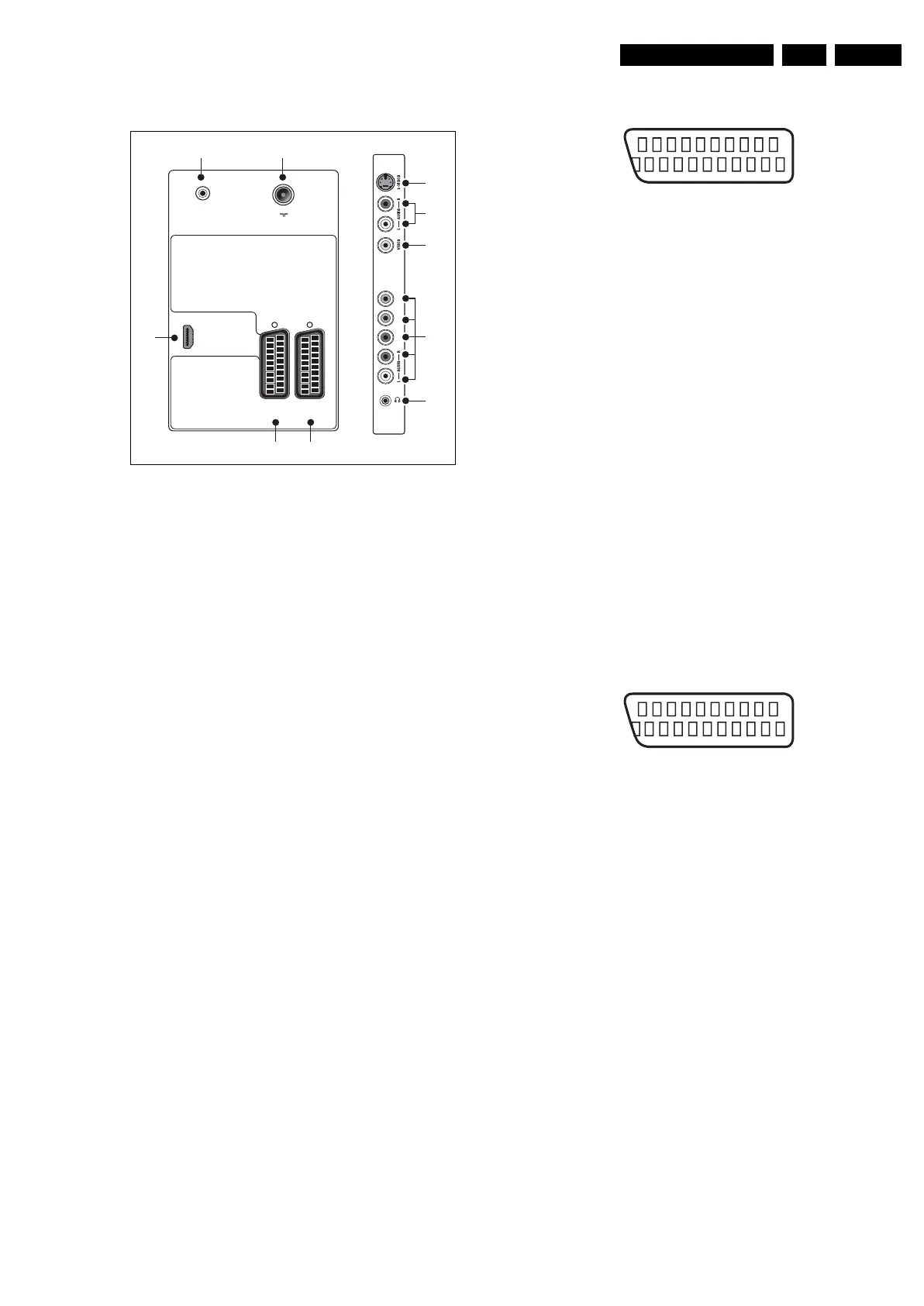

Figure 1-1 Side and rear I/O connections
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Connections
1 - Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
2 - Service Connector (UART)
1 - UART_TX Transmit k
2 - Ground Gnd H
3 - UART_RX Receive j
3 - HDMI: Digital Video, Digital Audio - In
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
4 - EXT2: CVBS - In/Out, Audio - In/Out
Figure 1-2 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Gnd H
5 - Ground Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7-n.c.
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Gnd H
10 - n.c.
11 - n.c
12 - n.c.
13 - Ground Gnd H
14 - Ground Gnd H
15 - Video/C 0.7 V
PP
/ 75 ohm j
16 - n.c.
17 - Ground Gnd H
18 - Ground Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
5 - EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 1-3 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Gnd H
5 - Ground Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue 0.7 V
PP
/ 75 ohm j
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Gnd H
14 - Ground Gnd H
15 - Video Red 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Gnd H
18 - Ground Gnd H
19 - Video CVBS 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
YPbPr
SERV. U
HDMI
TV ANTENNA
75
Ω
EXT 1
(RGB/CVBS)
EXT 2
(CVBS)
6
4
7
8
9
10
3
12
5
I_18170_027.eps
060808
21
20
1
2
E_06532_001.eps
050404
21
20
1
2
E_06532_001.eps
050404
