EN 4 LC8.1E LB1.
6 - S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
P / 75 ohm j
7, 8 - Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
9 - Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
10 - Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW rt
1.3 Chassis Overview

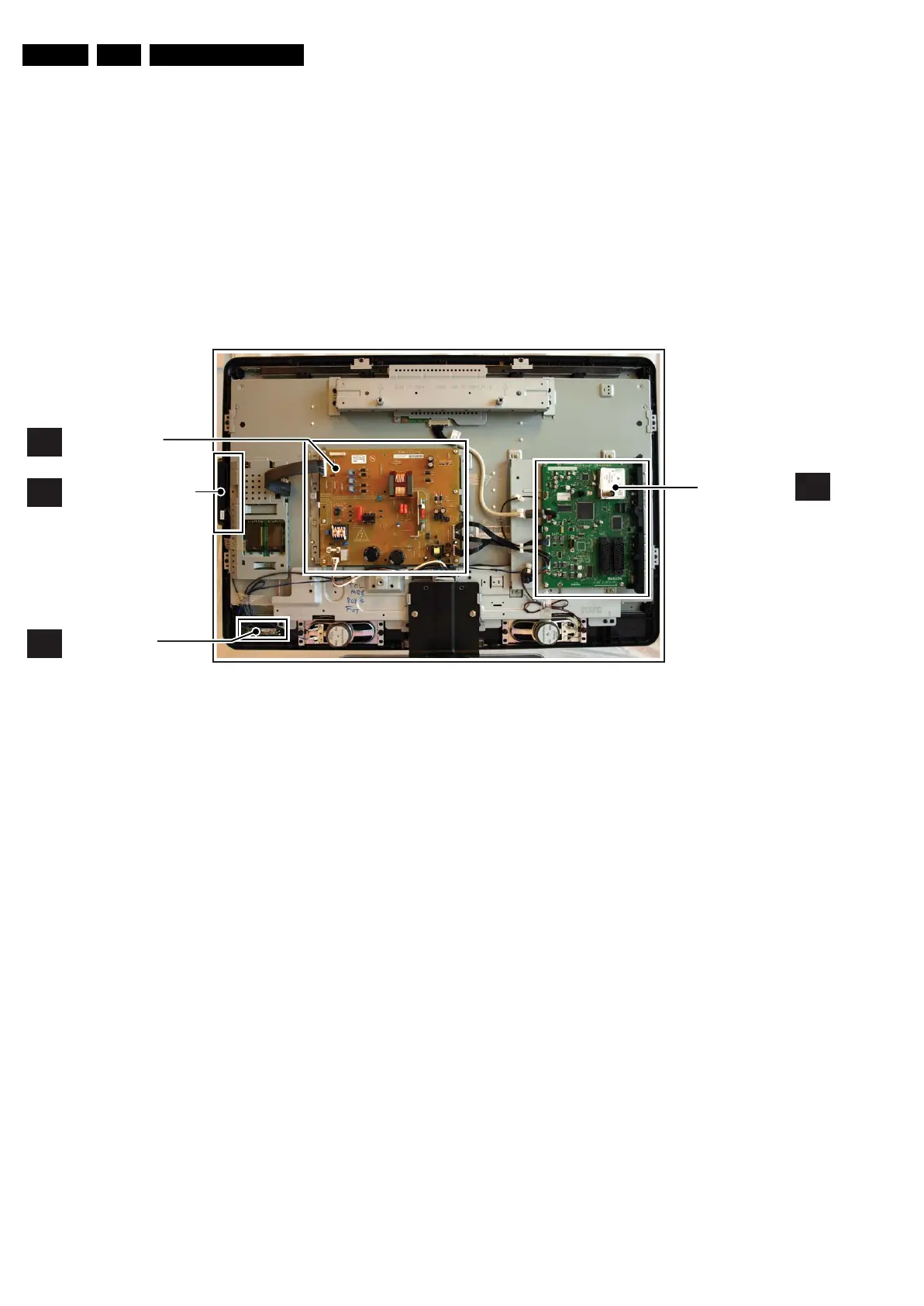

Figure 1-4 PWB/CBA locations
I_18170_028.eps
310708
B
MAIN POWER
SUPPLY PANEL
SMALL SIGNAL
BOARD
J
IR & LED PANEL
E
A
KEYBOARD CONTROL
PA N EL
