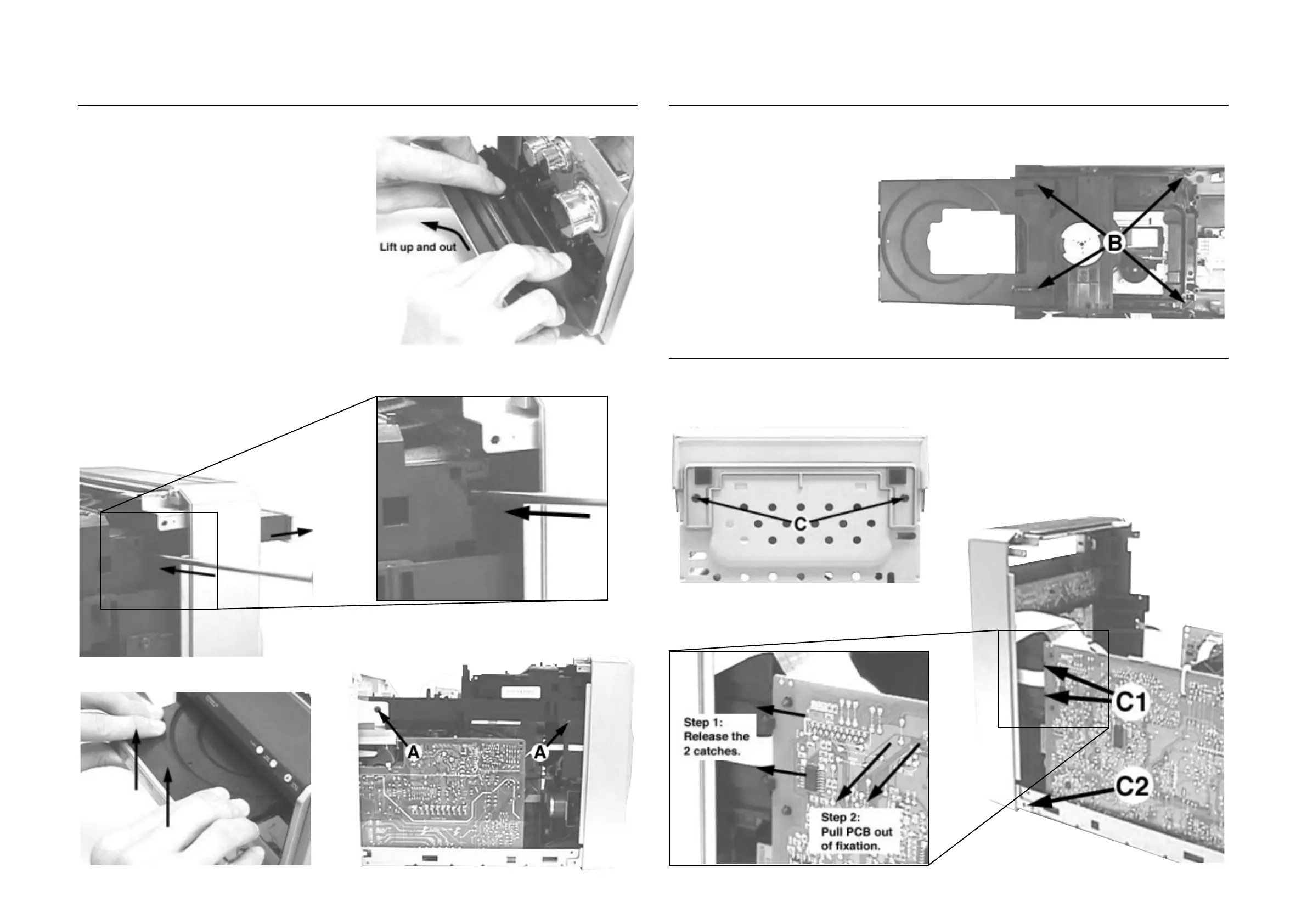

DISMANTLING INSTRUCTIONS
Dismantling of the Cover Cassette and Universal Loader
1) Remove the Cover Cassette (pos 150) in the direction as
shown in Figure 1.
2) Loosen 4 screws to remove the Cover Top (pos 240) by
sliding it out towards the rear before lifting up.
- 2 screws on the rear
- 1 screw each on the left & right side
3) Loosen 2 screws each to remove the Panel Left (pos 180)
and Panel Right (pos 181). The Panels are removed by
sliding it towards the rear and outwards.
- 1 screw on the rear
- 1 screw on the side
- see Service position A
4) Use a screw driver to give a push in the direction as shown
in Figure 2 and Figure 2A to unlock the Loader Tray before
sliding it out.
5) Slide out the Loader Tray and remove the Cover CD (pos
110 + pos 111) in the direction as shown in Figure 3.
6) Loosen 4 screws A (see Figure 4) to remove the Bracket
Module Mounting (pos 156) and Universal Loader (pos
1103).
- 2 screws each on the left & right side
Detaching the Universal Loader from the Bracket Module Mounting
2-1 2-1
Figure 1
Figure 2
Figure 3
Figure 4
Figure 6
Figure 7A Figure 7
1) Remove 2 screws C (see Figure 6) from the bottom of the
Cabinet Front (pos 101).
Detaching the Front Panel assembly from the Bottom/Rear assembly
2) Release the fixation of the Combi Board (pos1102-1003)
to Bracket Combi (pos 155) by releasing the 2 catches C1
(see Figure 7) and pulling the Combi Board outwards as
shown in Figure 7A.
3) Uncatch 2 catches C2 (see Figure 7) on the left & right
sides of the Cabinet Front (pos 101) and slides the Front
Panel assembly out towards the front.
- see Service position C
Figure 5
1) Slide out the Loader Tray fully and remove 4 screws B (see
Figure 5) to detach the Universal Loader (pos 1103) from
the Bracket Module Mounting (pos 156).
- see Service position B
Figure 2A
